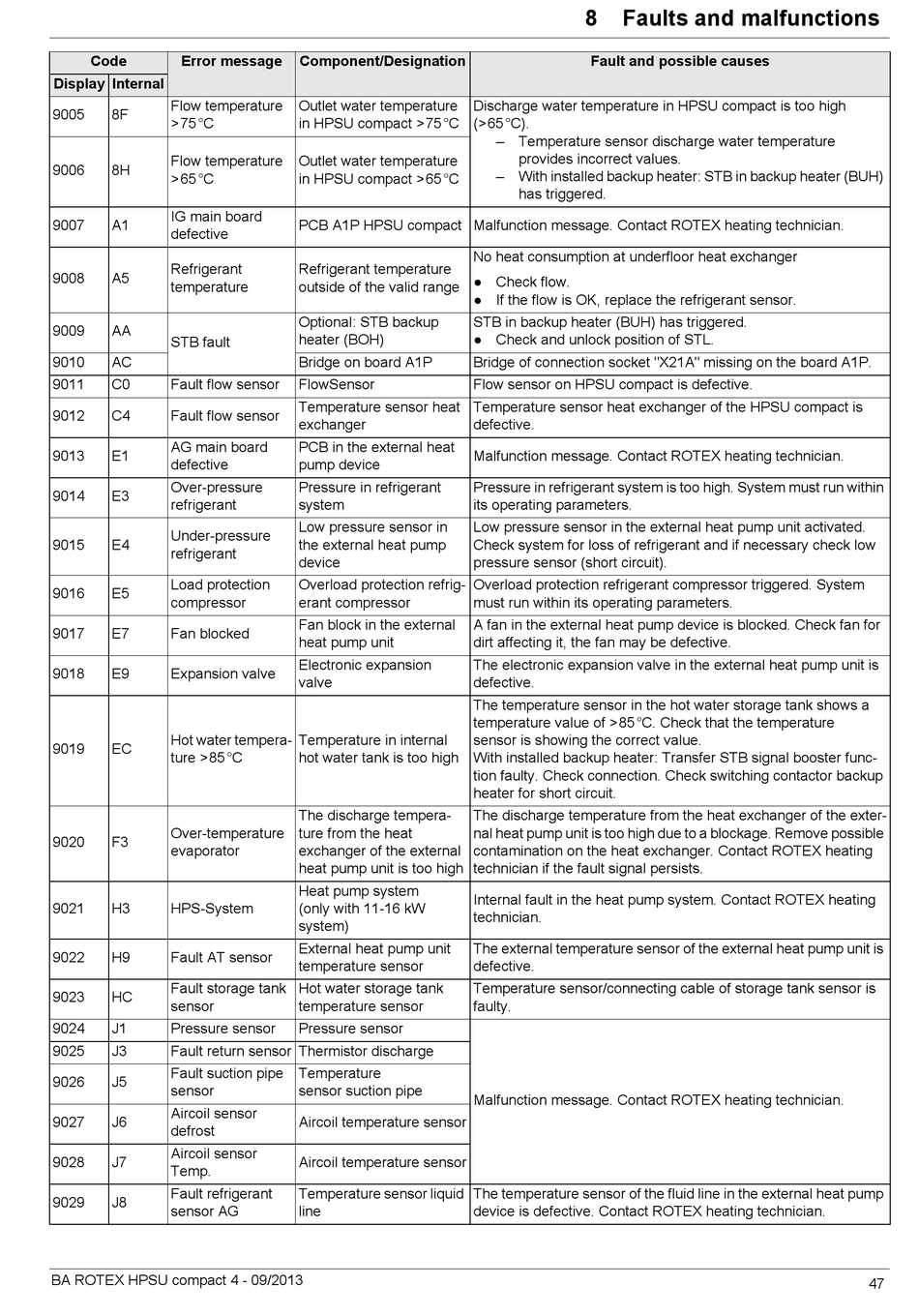

Rotex HPSU compact 304 Instruction Manual page 47

Code Error message
Display Internal
Flow temperature
9005 8F
> 75 °C
Flow temperature
9006 8H
> 65 °C
IG main board
9007 A1
defective
Refrigerant 
9008 A5
temperature
9009 AA
STB fault
9010 AC
9011 C0 Fault flow sensor
9012 C4 Fault flow sensor
AG main board
9013 E1
defective
Over-pressure
9014 E3
refrigerant
Under-pressure
9015 E4
refrigerant
Load protection
9016 E5
compressor
9017 E7 Fan blocked
9018 E9 Expansion valve
Hot water tempera-
9019 EC
ture > 85 °C
Over-temperature
9020 F3
evaporator
9021 H3 HPS-System
9022 H9 Fault AT sensor
Fault storage tank
9023 HC
sensor
9024 J1 Pressure sensor
9025 J3 Fault return sensor Thermistor discharge
Fault suction pipe
9026 J5
sensor
Aircoil sensor
9027 J6
defrost
Aircoil sensor
9028 J7
Temp.
Fault refrigerant
9029 J8
sensor AG
BA ROTEX HPSU compact 4 - 09/2013
Component/Designation
Outlet water temperature
in HPSU compact > 75 °C
Outlet water temperature
in HPSU compact > 65 °C
PCB A1P HPSU compact Malfunction message. Contact ROTEX heating technician.
Refrigerant temperature
outside of the valid range
Optional: STB backup
heater (BOH)
Bridge on board A1P
FlowSensor
Temperature sensor heat
exchanger
PCB in the external heat
pump device
Pressure in refrigerant
system
Low pressure sensor in
the external heat pump
device
Overload protection refrig-
erant compressor
Fan block in the external
heat pump unit
Electronic expansion
valve
Temperature in internal
hot water tank is too high
The discharge tempera-
ture from the heat
exchanger of the external
heat pump unit is too high
Heat pump system
(only with 11-16 kW 
system)
External heat pump unit
temperature sensor
Hot water storage tank
temperature sensor
Pressure sensor
Temperature
sensor suction pipe
Aircoil temperature sensor
Aircoil temperature sensor
Temperature sensor liquid
line
8 x Faults and malfunctions
Fault and possible causes
Discharge water temperature in HPSU compact is too high
(> 65 °C).
– Temperature sensor discharge water temperature 
provides incorrect values.
– With installed backup heater: STB in backup heater (BUH)
has triggered.
No heat consumption at underfloor heat exchanger
● Check flow.
● If the flow is OK, replace the refrigerant sensor.
STB in backup heater (BUH) has triggered.
● Check and unlock position of STL.
Bridge of connection socket "X21A" missing on the board A1P.
Flow sensor on HPSU compact is defective.
Temperature sensor heat exchanger of the HPSU compact is
defective.
Malfunction message. Contact ROTEX heating technician.
Pressure in refrigerant system is too high. System must run within
its operating parameters.
Low pressure sensor in the external heat pump unit activated.
Check system for loss of refrigerant and if necessary check low
pressure sensor (short circuit).
Overload protection refrigerant compressor triggered. System
must run within its operating parameters.
A fan in the external heat pump device is blocked. Check fan for
dirt affecting it, the fan may be defective.
The electronic expansion valve in the external heat pump unit is
defective.
The temperature sensor in the hot water storage tank shows a
temperature value of > 85 °C. Check that the temperature
sensor is showing the correct value. 
With installed backup heater: Transfer STB signal booster func-
tion faulty. Check connection. Check switching contactor backup
heater for short circuit.
The discharge temperature from the heat exchanger of the exter-
nal heat pump unit is too high due to a blockage. Remove possible
contamination on the heat exchanger. Contact ROTEX heating
technician if the fault signal persists.
Internal fault in the heat pump system. Contact ROTEX heating
technician.
The external temperature sensor of the external heat pump unit is
defective.
Temperature sensor/connecting cable of storage tank sensor is
faulty.
Malfunction message. Contact ROTEX heating technician.
The temperature sensor of the fluid line in the external heat pump
device is defective. Contact ROTEX heating technician.
47
