6

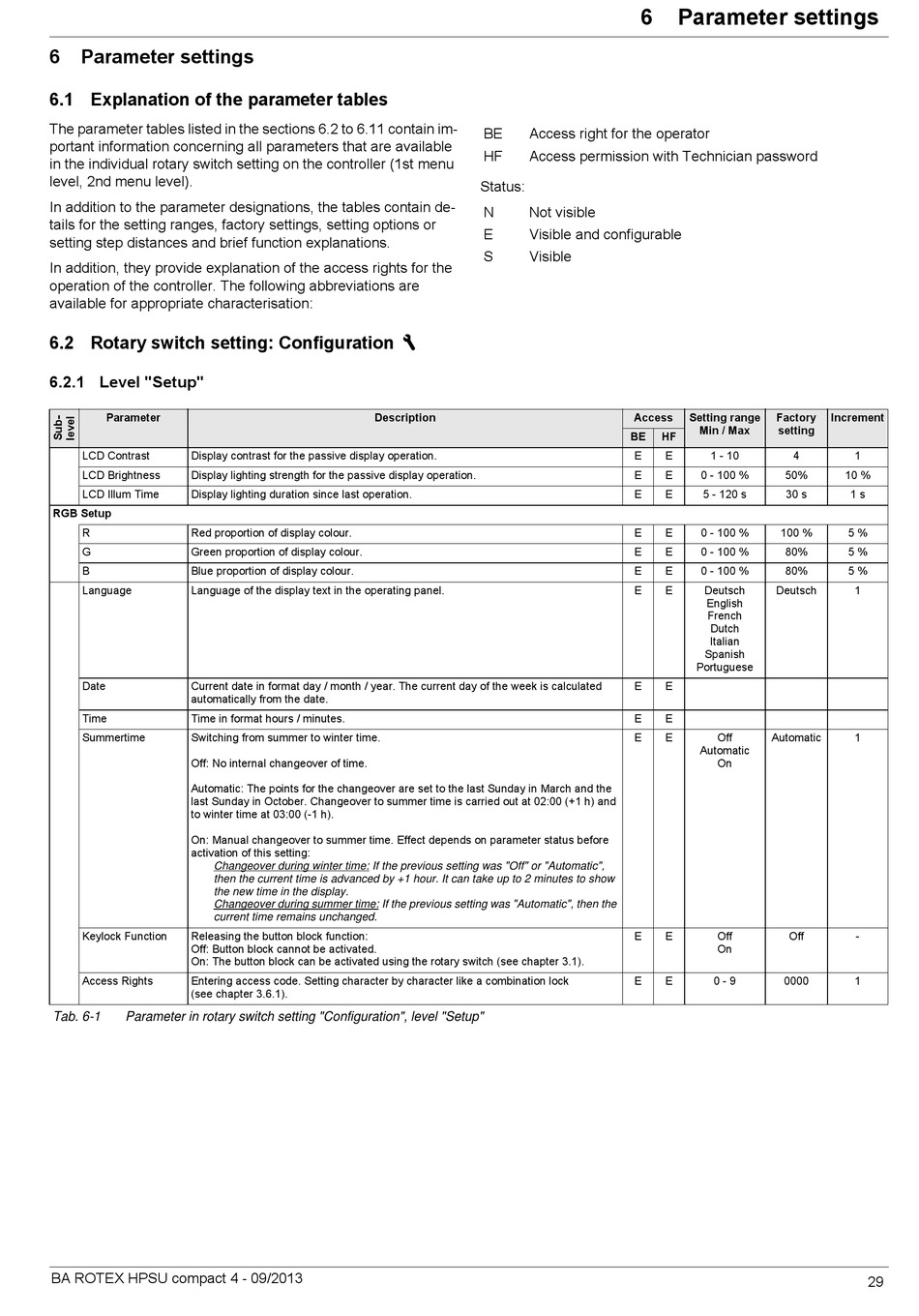

Parameter settings

6.1 Explanation of the parameter tables

The parameter tables listed in the sections 6.2 to 6.11 contain im-
portant information concerning all parameters that are available
in the individual rotary switch setting on the controller (1st menu
level, 2nd menu level).
In addition to the parameter designations, the tables contain de-
tails for the setting ranges, factory settings, setting options or
setting step distances and brief function explanations.
In addition, they provide explanation of the access rights for the
operation of the controller. The following abbreviations are
available for appropriate characterisation:

6.2 Rotary switch setting: Configuration

6.2.1 Level "Setup"

Parameter
LCD Contrast Display contrast for the passive display operation.
LCD Brightness Display lighting strength for the passive display operation.
LCD Illum Time Display lighting duration since last operation.
RGB Setup
R Red proportion of display colour.
G Green proportion of display colour.
B Blue proportion of display colour.
Language Language of the display text in the operating panel.
Date Current date in format day / month / year. The current day of the week is calculated 
automatically from the date.
Time Time in format hours / minutes.
Summertime Switching from summer to winter time.
Off: No internal changeover of time.
Automatic: The points for the changeover are set to the last Sunday in March and the
last Sunday in October. Changeover to summer time is carried out at 02:00 (+1 h) and
to winter time at 03:00 (-1 h).
On: Manual changeover to summer time. Effect depends on parameter status before 
activation of this setting:
Changeover during winter time: If the previous setting was "Off" or "Automatic",
then the current time is advanced by +1 hour. It can take up to 2 minutes to show
the new time in the display.
Changeover during summer time: If the previous setting was "Automatic", then the
current time remains unchanged.
Keylock Function Releasing the button block function:
Off: Button block cannot be activated.
On: The button block can be activated using the rotary switch (see chapter 3.1).
Access Rights Entering access code. Setting character by character like a combination lock 
(see chapter 3.6.1).
Tab. 6-1 Parameter in rotary switch setting "Configuration", level "Setup"
BA ROTEX HPSU compact 4 - 09/2013
BE Access right for the operator
HF Access permission with Technician password
Status:
N Not visible
E Visible and configurable
S Visible
Description
6 x Parameter settings
Access Setting range Factory
Min / Max setting
BE HF
E E 1 - 10 4
E E 0 - 100 % 50%
E E 5 - 120 s 30 s
E E 0 - 100 % 100 %
E E 0 - 100 % 80%
E E 0 - 100 % 80%
E E Deutsch Deutsch
English
French
Dutch
Italian
Spanish
Portuguese
E E
E E
E E Off Automatic
Automatic
On
E E Off Off
On
E E 0 - 9 0000
Increment
1
10 %
1 s
5 %
5 %
5 %
1
1
-
1
