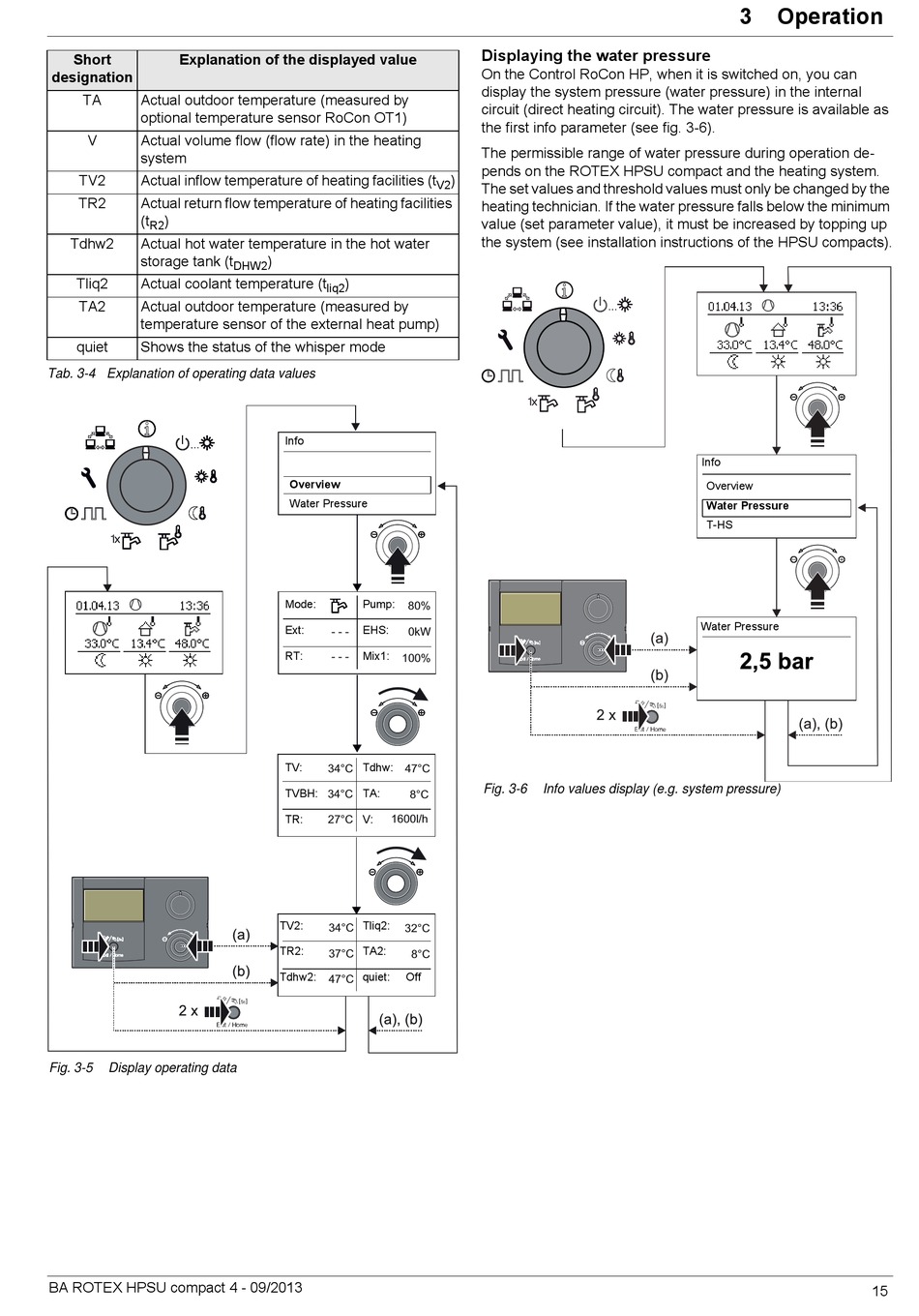

Rotex HPSU compact 304 Instruction Manual page 15

Short Explanation of the displayed value
designation
TA Actual outdoor temperature (measured by 
optional temperature sensor RoCon OT1)
V Actual volume flow (flow rate) in the heating
system
TV2 Actual inflow temperature of heating facilities (t
TR2 Actual return flow temperature of heating facilities
(t )
R2
Tdhw2 Actual hot water temperature in the hot water
storage tank (t
Tliq2 Actual coolant temperature (t
TA2 Actual outdoor temperature (measured by 
temperature sensor of the external heat pump)
quiet Shows the status of the whisper mode
Tab. 3-4 Explanation of operating data values
Fig. 3-5 Display operating data
BA ROTEX HPSU compact 4 - 09/2013
)
DHW2
)
liq2
Info
Overview
Water Pressure
Mode: Pump:
Ext: EHS:
- - -
RT: Mix1:
- - -
100%
TV: 34°C Tdhw: 47°C
TVBH: 34°C TA:
27°C 1600l/h
TR: V:
TV2: Tliq2:
34°C 32°C
TR2: TA2:
37°C
Tdhw2: quiet: Off
47°C
Displaying the water pressure
On the Control RoCon HP, when it is switched on, you can
display the system pressure (water pressure) in the internal
circuit (direct heating circuit). The water pressure is available as
the first info parameter (see fig. 3-6).
The permissible range of water pressure during operation de-
pends on the ROTEX HPSU compact and the heating system.
)
V2
The set values and threshold values must only be changed by the
heating technician. If the water pressure falls below the minimum
value (set parameter value), it must be increased by topping up
the system (see installation instructions of the HPSU compacts).
80%
0kW
Fig. 3-6 Info values display (e.g. system pressure)
8°C
8°C
3 x Operation
Info
Overview
Water Pressure
T-HS
Water Pressure
