● Confirm the changes with a brief push of the rotary switch.

The local control element acts as the remote control for
the external equipment.
To end terminal mode and restore operation of the assigned
equipment to the control element, at the level "Remote Param"
the parameter [No selection] must be selected and acknowl-
edged (see fig. 3-10).

3.4.10 Quite Mode

Quite Mode means that the exterior heat pump unit is operating
at reduced output. This reduces the operating noise caused by
the exterior heat pump unit.
CAUTION!
Active Quite Mode reduces the performance in room
heating and room cooling operation with the result that
it may no longer be possible to reach the preset target
temperatures.
● With outside temperatures below freezing, there is
a risk of material damage caused by frost.
The Quite Mode is set and turned off as follows:
● Place the rotary switch in the "Configuration"

An overview is displayed.
● Select the "System Configuration" level with the rotary switch.

An overview is displayed.
● Select the parameter [Quite Mode] with the rotary switch.
● Select and change the value to be changed within the
individual display using the rotary switch.
● Confirm the changes with a brief push of the rotary switch.

Change has been accepted. Jump back to previous 
display.
More detailed explanations and possible setting values for this function can be seen
in chapter 6.2.2.

3.5 Special functions

In the "Special Level" we can carry out various functions that are
usually used by the heating expert.
The following special functions are possible:
– Manual mode (see section 3.5.1).
– Fault display (see the Control System Instructions)
– Resetting to factory settings (see section 3.6.6)
More detailed explanations of these functions can be found in chapter 6.11.
The call-up of special functions does not depend on the
setting on the rotary switch.
● Depress the exit button for at least 5 secs.

Menu "Special Level" is displayed.
● Select the programme to be started with the rotary switch.
● Confirm the changes with a brief push of the rotary switch.

The selected programme starts.
● Cancellation and jump back by:
– Pushing the exit button again, or
– Briefly actuating the rotary switch or
– Selecting a different menu using the rotary switch.
BA ROTEX HPSU compact 4 - 09/2013

3.5.1 Manual Operation

The manual mode serves to regulate the ROTEX HPSU compact
manually to a specific flow temperature. The manual mode
should only be used for diagnostic purposes.
With hydraulically controlled priority operation for the hot water
generation you must make sure that the flow temperature set in
manual mode is adequate to achieve the stored hot water set
temperature (parameter [T-DHW Setpoint 1]).
During active manual mode the hot water is consistently regu-
lated to the first set value parameter of hot water generation 
([T-DHW Setpoint 1]).
When the manual mode is ended, the Control RoCon HP auto-
matically switches to the operating mode "Standby".
Special Level
position.
Manual Operation
Error
Manual Operation
Set
Current operating mode

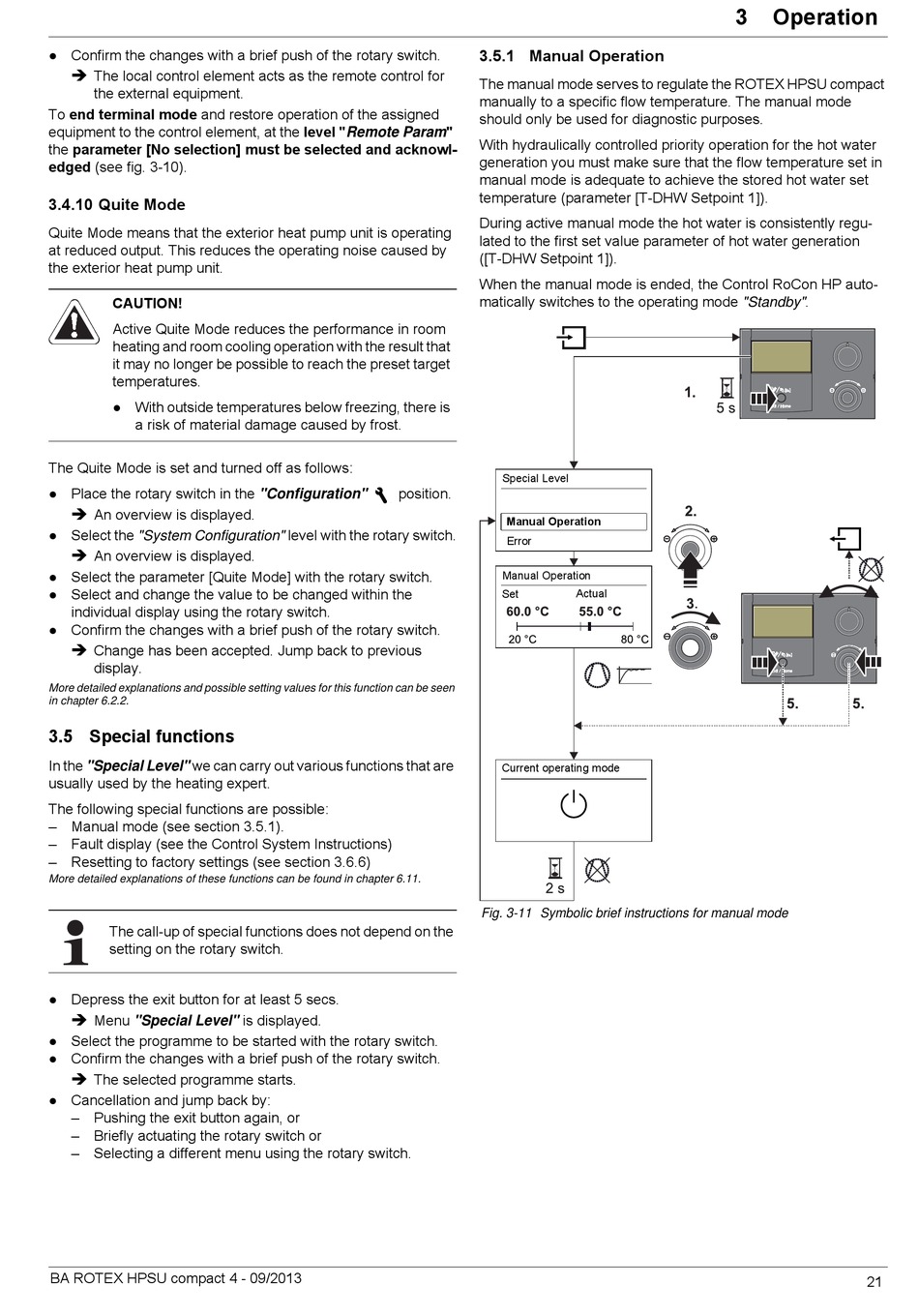

Fig. 3-11 Symbolic brief instructions for manual mode
3
Actual
x Operation
21
