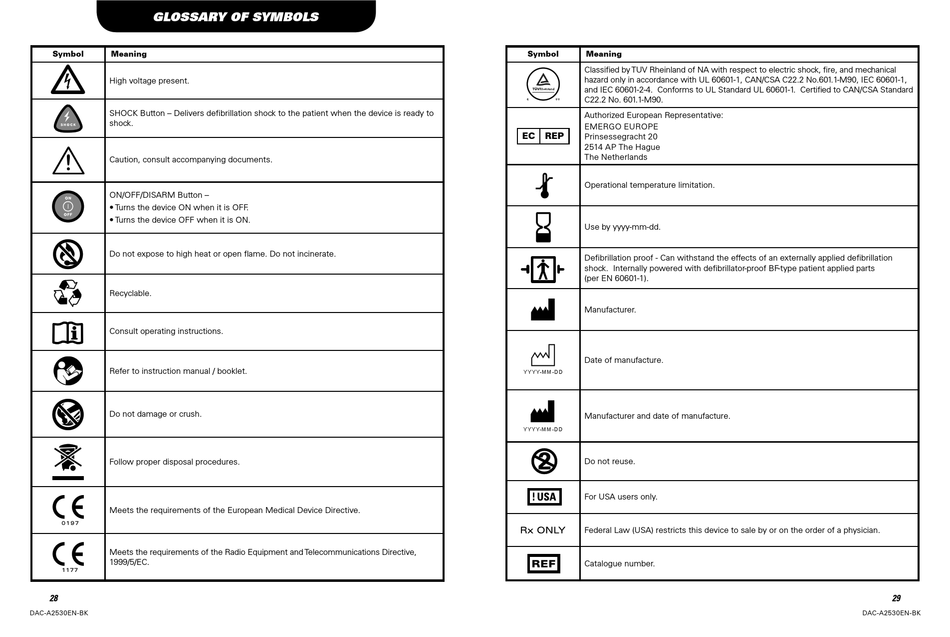

GLOSSARY OF SYMBOLS

Symbol Meaning

High voltage present.
SHOCK Button – Delivers defibrillation shock to the patient when the device is ready to
shock.
!
Caution, consult accompanying documents.
ON/OFF/DISARM Button –
• Turns the device ON when it is OFF .
• Turns the device OFF when it is ON.
Do not expose to high heat or open flame. Do not incinerate.
Recyclable.
Consult operating instructions.
Refer to instruction manual / booklet.
Do not damage or crush.
Follow proper disposal procedures.
Meets the requirements of the European Medical Device Directive.
X X X X
X X X X
X X X X
X X X X
X X X X
Meets the requirements of the Radio Equipment and Telecommunications Directive,
1999/5/EC.
X X X X
X X X X
X X X X
X X X X
28
X X X X
DAC-A2530EN-BK
X X X X
X X X X
Symbol Meaning
Classified by TUV Rheinland of NA with respect to electric shock, fire, and mechanical
hazard only in accordance with UL 60601-1, CAN/CSA C22.2 No.601.1-M90, IEC 60601-1,
and IEC 60601-2-4. Conforms to UL Standard UL 60601-1. Certified to CAN/CSA Standard
C22.2 No. 601.1-M90.
Authorized European Representative:
EMERGO EUROPE
EC REP
Prinsessegracht 20
2514 AP The Hague
The Netherlands
Operational temperature limitation.
Use by yyyy-mm-dd.
Defibrillation proof - Can withstand the effects of an externally applied defibrillation
shock. Internally powered with defibrillator-proof BF-type patient applied parts
(per EN 60601-1).
Manufacturer.
YY Y Y- M M- D D
Y Y Y Y
Y Y Y Y
Date of manufacture.
Y Y Y Y- MM - DD Y Y Y Y- MM - D D
Y Y Y Y
Y Y Y Y
Y Y Y Y
Y Y Y Y
Manufacturer and date of manufacture.
Y Y Y Y
Y Y Y Y
Y Y Y Y- MM - DD Y Y Y Y- MM - DD
Y Y Y Y
Do not reuse.
Y Y Y Y
For USA users only.
Y Y Y Y
Federal Law (USA) restricts this device to sale by or on the order of a physician.
Catalogue number.
Y Y Y Y- MM- D D
29
DAC-A2530EN-BK
