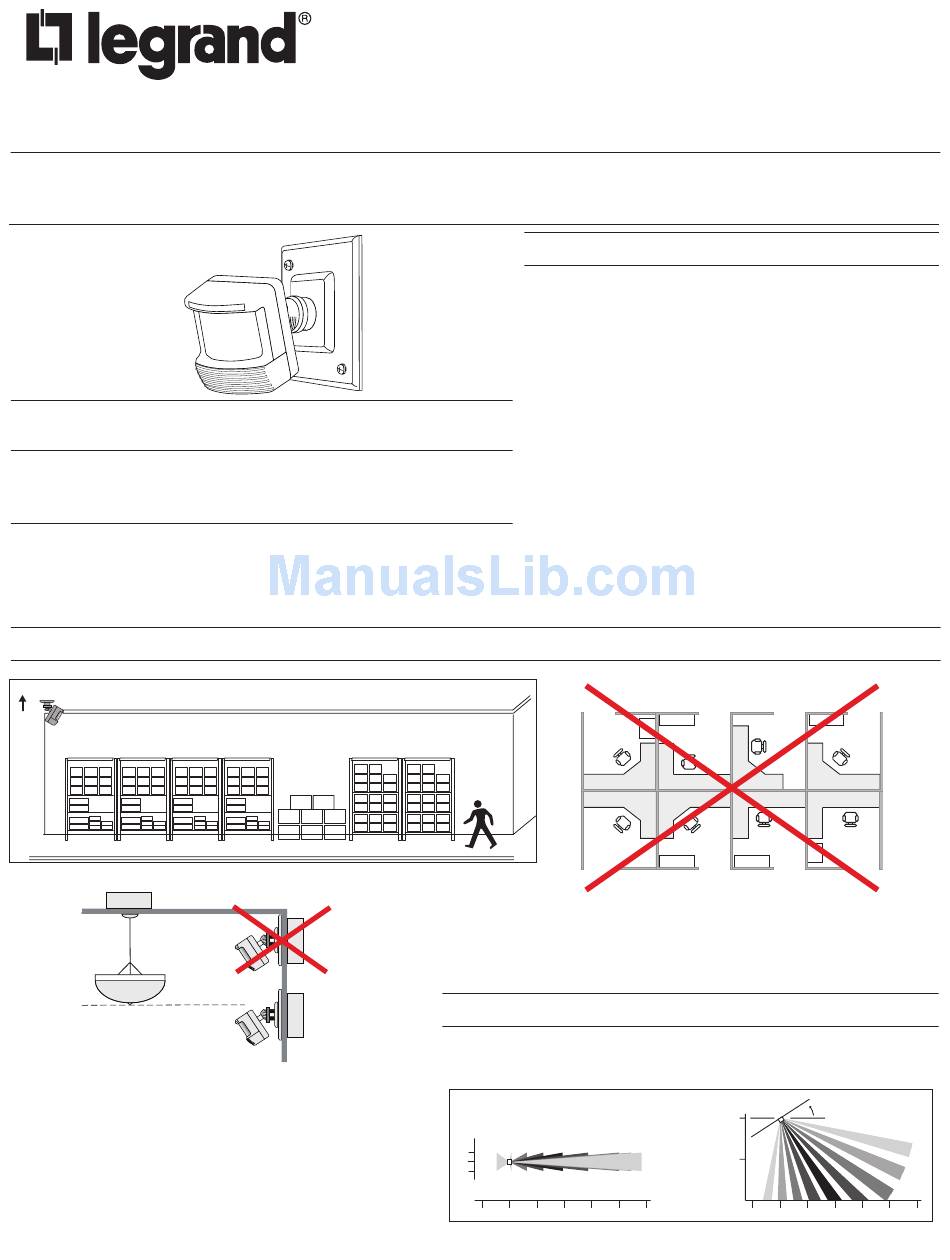

wattstopper LMPX-100-4 Installation Instructions

No: 24782 – 09/16 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMPX-100-4
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
LMPX-100-4-U is BAA and TAA compliant (Product produced in the U.S.)
This unit is pre-set for Plug n' Go™ operation, adjustment is
optional.
For full operational details, adjustment and more features of the product, see the
DLM System Installation Guide provided with Wattstopper room controllers, and
also available at www.legrand.us/wattstopper.
Installation shall be in accordance with all applicable regulations, local and
NEC codes. Wire connections shall be rated suitable for the wire size (lead and
building wiring) employed.
For Class 2 DLM devices and device wiring: To be connected to a Class 2 power
source only. Do not reclassify and install as Class 1, or Power and Lighting Wiring.
30 ft.
15 ft.
Ceiling
SENSOR PLACEMENT
Sensor
Wattstopper

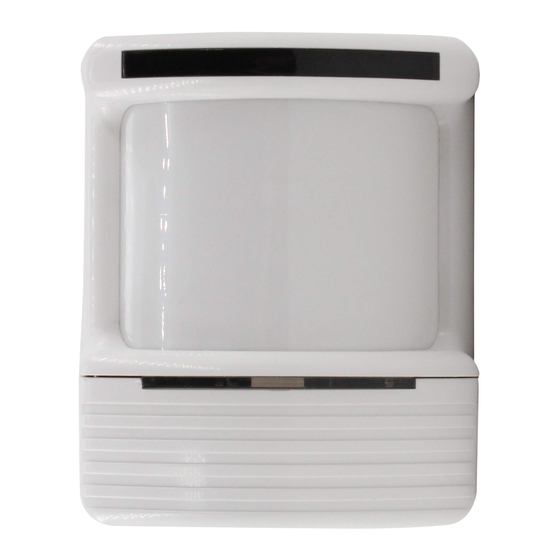

DLM - Occupancy Sensor PIR Corner Mount With One-Way Aisle Lens
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Voltage .............................................................................. 24VDC
Current Consumption .............................................................7mA
Power Supply ................................Wattstopper Room Controllers
Connection to the DLM Local Network ........................ RJ-45 plug
DLM Local Network characteristics when using LMRC-11x/2xx
room controllers:
Low voltage power provided over Cat 5e cable (LMRJ);
max current 800mA. Supports up to 64 load addresses,
48 communicating devices including up to 4 LMRC-10x
series and/or LMPL-101 controllers.
Free topology up to 1,000' max.
Environment ................................................. For Indoor Use Only
Operating Temperature .................32° to 131°F (0° to 55°C)
Storage Temperature ...................23° to 176°F (-5° to 80°C)
Relative Humidity .......................5 to 95% (non condensing)
Patent Pending
COVERAGE PATTERN
Coverages shown are maximum and represent half-step walking motion.
Top View
3 ft
0
3 ft
10 ft 0 10 ft 20 ft 30 ft 40 ft
®

SPECIFICATIONS

Side View
33˚
30ft
15ft
0
50 ft 10 ft 0 10 ft 20 ft 30 ft 40 ft 50 ft
