Main characteristics of the CAN connection

Protocol controller: INFINEON MULTICAN

Standard CAN 2.0B
-
Standard identifier 11 bits; extended 29 bits
-
Transmission / reception of data up to 8 bytes
-
Request for distant transmission (RTR)
-
Baud rate up to 1 Mbit/sec
-
Spy mode (no acknowledgement or error frame)
-
Reading of counters of internal errors
-
Detailed information in case of bus error
-

High speed line interface: NXP TJA 1040

ISO 11898–24V standard
-
Baud rate up to 1 Mbits/sec
-
Connection up to 110 stations sur le bus
-
Transmission in differential mode
-
Short-circuit to ground and battery > 24V
-
Termination resistors set up by software
-

Low speed line interface: NXP TJA1055

Baud rate up to 125 Kbit/sec
-
Connection up to 32 stations on the bus
-
Transmission in differential mode
-
Possibility to operate on 1 wire
-
Detection and treatment of degraded modes
-
o Short-circuit to ground
o Short-circuit to VCC
o Short-circuit to the battery
o Short-circuit between CANH and CANL
o Open circuit

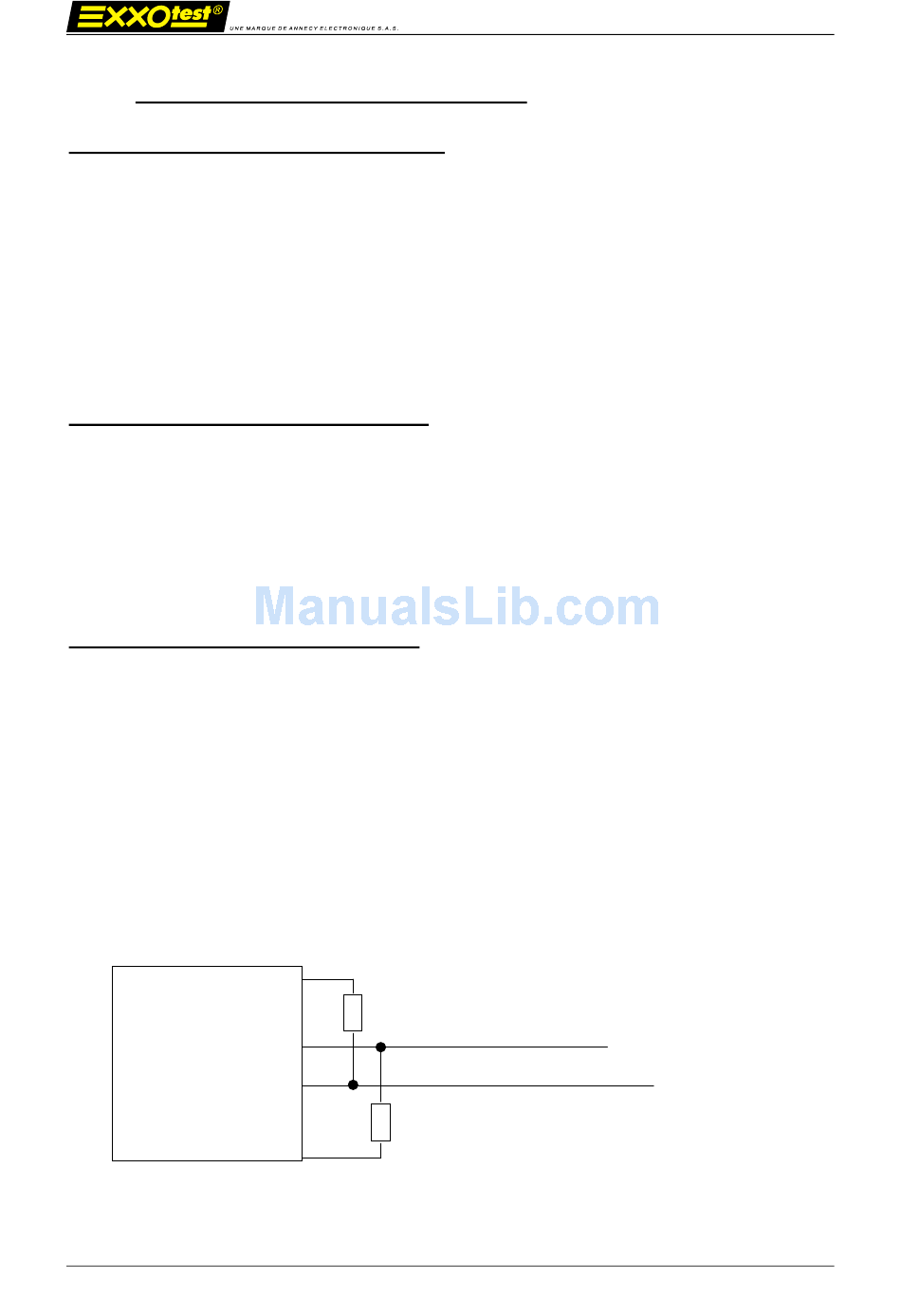

TJA1055
