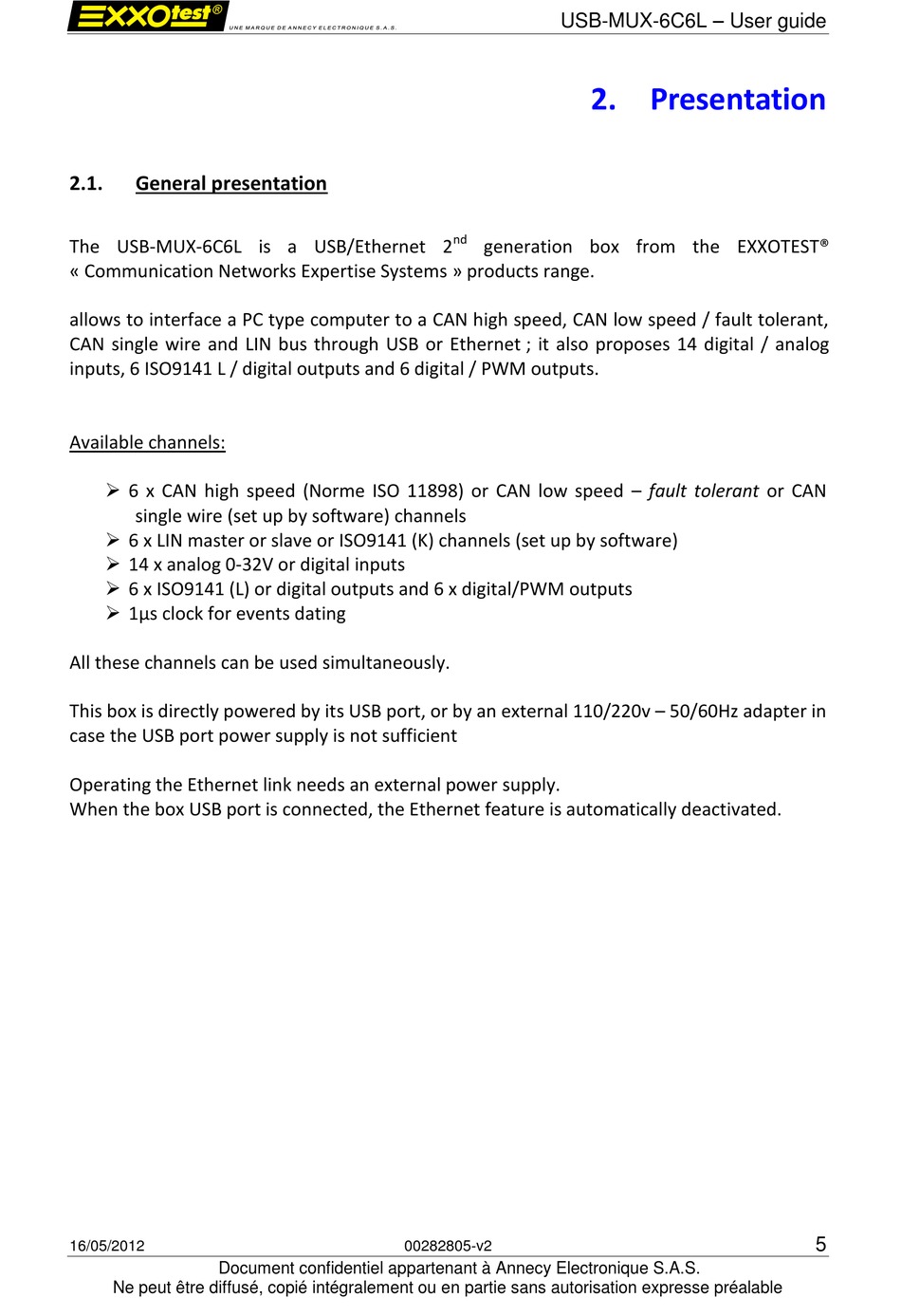

2.1.

General presentation

The USB-MUX-6C6L is a USB/Ethernet 2
« Communication Networks Expertise Systems » products range.
allows to interface a PC type computer to a CAN high speed, CAN low speed / fault tolerant,
CAN single wire and LIN bus through USB or Ethernet ; it also proposes 14 digital / analog
inputs, 6 ISO9141 L / digital outputs and 6 digital / PWM outputs.
Available channels:
 6 x CAN high speed (Norme ISO 11898) or CAN low speed – fault tolerant or CAN
single wire (set up by software) channels
 6 x LIN master or slave or ISO9141 (K) channels (set up by software)
 14 x analog 0-32V or digital inputs
 6 x ISO9141 (L) or digital outputs and 6 x digital/PWM outputs
 1µs clock for events dating
All these channels can be used simultaneously.
This box is directly powered by its USB port, or by an external 110/220v – 50/60Hz adapter in
case the USB port power supply is not sufficient
Operating the Ethernet link needs an external power supply.
When the box USB port is connected, the Ethernet feature is automatically deactivated.
