Summary of Contents for EXXOTEST USB-MUX-6C6L
- Page 1 USB-MUX-6C6L – User guide USB / Ethernet interface box USB-MUX-6C6L User Guide 16/05/2012 00282805-v2 Document confidentiel appartenant à Annecy Electronique S.A.S. Ne peut être diffusé, copié intégralement ou en partie sans autorisation expresse préalable...
-
Page 2: Table Of Contents
USB-MUX-6C6L – User guide SUMMARY 1. Aim of this document and bibliography ............. 4 1.1. Aim ..........................4 1.2. Bibliography ........................4 2. Presentation ....................5 2.1. General presentation ...................... 5 2.2. Synoptic .......................... 6 2.3. Main characteristics of the CAN connection ..............7 Protocol controller: INFINEON MULTICAN................. - Page 3 5.1. Drivers history ....................... 16 5.1.1. USB Drivers ....................... 16 5.1.1.1. Windriver drivers ....................16 5.1.1.2. Exxotest v1.x and v2.x drivers ................16 5.1.2. PCI drivers ......................17 5.2. Warning ........................18 5.3. Installation ........................19 5.3.1. Installation goal ....................19 5.3.2.
-
Page 4: Aim Of This Document And Bibliography
USB-MUX-6C6L – User guide 1. Aim of this document and bibliography 1.1. The aim of this document is to give the user the information required to install and set up the case USB-MUX-4C4L. 1.2. Bibliography NXP : TJA1040 High speed CAN transceiver– data sheet NXP : TJA1055 Enhanced fault-tolerant CAN transceiver –... -
Page 5: Presentation

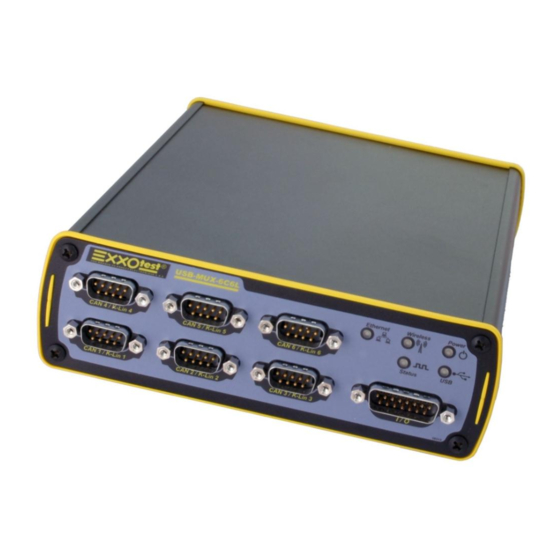

2. Presentation 2.1. General presentation The USB-MUX-6C6L is a USB/Ethernet 2 generation box from the EXXOTEST® « Communication Networks Expertise Systems » products range. allows to interface a PC type computer to a CAN high speed, CAN low speed / fault tolerant, CAN single wire and LIN bus through USB or Ethernet ;... -
Page 6: Synoptic
USB-MUX-6C6L – User guide 2.2. Synoptic Entrées / Alimentation Sorties externe Horloge GPIO Interface CAN HS Interface CAN LS CAN 0 Interface CAN SW Contrôleur Port USB Interface LIN USIC 0 Interface CAN HS Interface CAN LS Interface CAN SW... -
Page 7: Main Characteristics Of The Can Connection
USB-MUX-6C6L – User guide 2.3. Main characteristics of the CAN connection Protocol controller: INFINEON MULTICAN Standard CAN 2.0B Standard identifier 11 bits; extended 29 bits Transmission / reception of data up to 8 bytes Request for distant transmission (RTR) Baud rate up to 1 Mbit/sec... -
Page 8: Single Wire Line Interface: Freescale Mcz33897
USB-MUX-6C6L – User guide Single wire line interface: FREESCALE MCZ33897 Baud rate up to 33 Kbit/sec Connection up to 32 stations on the bus Transmission over 1 wire 2.4. Main characteristics of the KWP2000 connection ISO 9141 or ISO 14230 standard Baud rate 9600, 10400, 62500 and 125000 Bauds Tester (500 Ω) or simulator (30 kΩ) configuration set up by software... -
Page 9: Main Characteristics Of The Lin Connection
USB-MUX-6C6L – User guide 2.5. Main characteristics of the LIN connection Line interface : FREESCALE MC33661 LIN Rev 1.2, 1.3, 2.0 and 2.1 specification Baud rate 2400, 9600, 19200 and 20883 bauds Master or slave pull-up resistor’s configuration set up by software... -
Page 10: Characteristics Of Digital Inputs
USB-MUX-6C6L – User guide 2.6. Characteristics of digital inputs Diagram of inputs 30 k ohms Connector input Diagram of outputs 62 ohms Connector Output 16/05/2012 00282805-v2 Document confidentiel appartenant à Annecy Electronique S.A.S. Ne peut être diffusé, copié intégralement ou en partie sans autorisation expresse préalable... -
Page 11: Technical Specifications
USB-MUX-6C6L – User guide 3. Technical specifications 3.1. Technical characteristics Presentation PC interface box USB bus or Ethernet including: - 6 x CAN high speed or CAN low speed / fault tolerant or single wire channels - 6 x LIN or ISO9141 channels Controller . -
Page 12: Configuration
USB-MUX-6C6L – User guide 4. Configuration 4.1. DB15 « I / O » connector Analog/Digital inputs/outputs Name Denomination E_ANA/TOR_1 0-32V analog or digital input n°1 E_ANA/TOR_2 0-32V analog or digital input n°2 E_ANA/TOR_3 0-32V analog or digital input n°3 E_ANA/TOR_4 0-32V analog or digital input n°4... -
Page 13: De9 Ioioi » De9 Connector
USB-MUX-6C6L – User guide 4.3. « DE9 IOIOI » DE9 connector RS232 link (and optionally RS485) Name Denomination SYNC_IN EXT synchro input Receive data Transmit data SYNC_OUT EXT synchro output Ground RS485_Z RS485_Y RS485 bus (optional) RS485_A RS485_B 4.4. USB connector... -
Page 14: Leds
USB-MUX-6C6L – User guide 4.7. LEDs 4.7.1. Power This LED shows the power supply status of the box LED status Meaning No power supply, or box in extended sleep mode, or box out of order On (fixed) Box correctly powered 4.7.2. -
Page 15: Ethernet
USB-MUX-6C6L – User guide 4.7.9. Ethernet This LED shows the working status of the Ethernet link with the PC LED status Meaning No more link with the PC, device deactivated or in sleep mode ; may also indicates an Ethernet failure... -
Page 16: Drivers
Both of them are supported by a same “generic” software library “MUXDLL.dll” since its 6.1.7 version. 5.1.1.1. Windriver drivers « Windriver » is the historical « Jungo » driver used since the first EXXOTEST® hardware and software developments. It is now obsolete and its support will be interrupted on next March 1 2012. -
Page 17: Pci Drivers
USB-MUX-6C6L – User guide Supported operating systems Operating system Exxotest V2.x driver Exxotest V1.x driver Windows 2000 Not supported Supported Windows XP (32 bits version) Supported Supported Windows XP (64 bits version) Supported Not supported Windows Vista (32 bits version) -
Page 18: Warning
« EXXOTEST® Driver Kit and utilities » All EXXOTEST® applications and utilities available on the Exxotest downloads webpage of and in our “KIT CD MUX” have been updated to run optimally with this new generation of drivers: o MUXTRACE EXPERT –... -
Page 19: Installation
5.3.2. Warning To support this update, any application which is not provided by Annecy Electronique and which works with Exxotest card or interface (proprietary application) must realize a “dynamic load” of the software library or being recompiled with this new library. -
Page 20: Execution Of The Installation File
Step 1 : Starting the drivers installation We recommend you at this step to check that no USB EXXOTEST® is connected to your PC Click on « Next ». Step 2 : Final user license contract agreement After reading of the license contract, tick «... - Page 21 USB-MUX-6C6L – User guide Step 3 : Installation options selection Select or unselect the options to be installed accordingly to your needs. We therefore recommend you to keep the default configuration. Click on « Next » to continue. WARNING: PCI cards users, the PCI driver installation is not activated in the default configuration.
- Page 22 USB-MUX-6C6L – User guide Step 4 : Starting the installation Click on “next » to start the installation as configured previously. Step 5 : Installation Installation in progress, no action from your part is required. Note: the status indicator may, in certain operations stand still for several minutes.
-
Page 23: Technical Support
USB-MUX-6C6L – User guide Step 6 : End of installation Click on « Finish » to end the installation. You can now connect your interface(s) to the PC, they will be automatically detected and installed. 5.4. Technical support In case of any failure or help need during or after this installation, please feel free to contact our technical support «... -
Page 24: Successive Editions List
USB-MUX-6C6L – User guide Successive editions list Version Date Created / Modified by 20/11/2011 Gaël PERAGOUX Modification Document’s creation Version Date Created / Modified by 16/05/2012 Gaël PERAGOUX Modification Update – drivers section Version Date Created / Modified by Modification...
