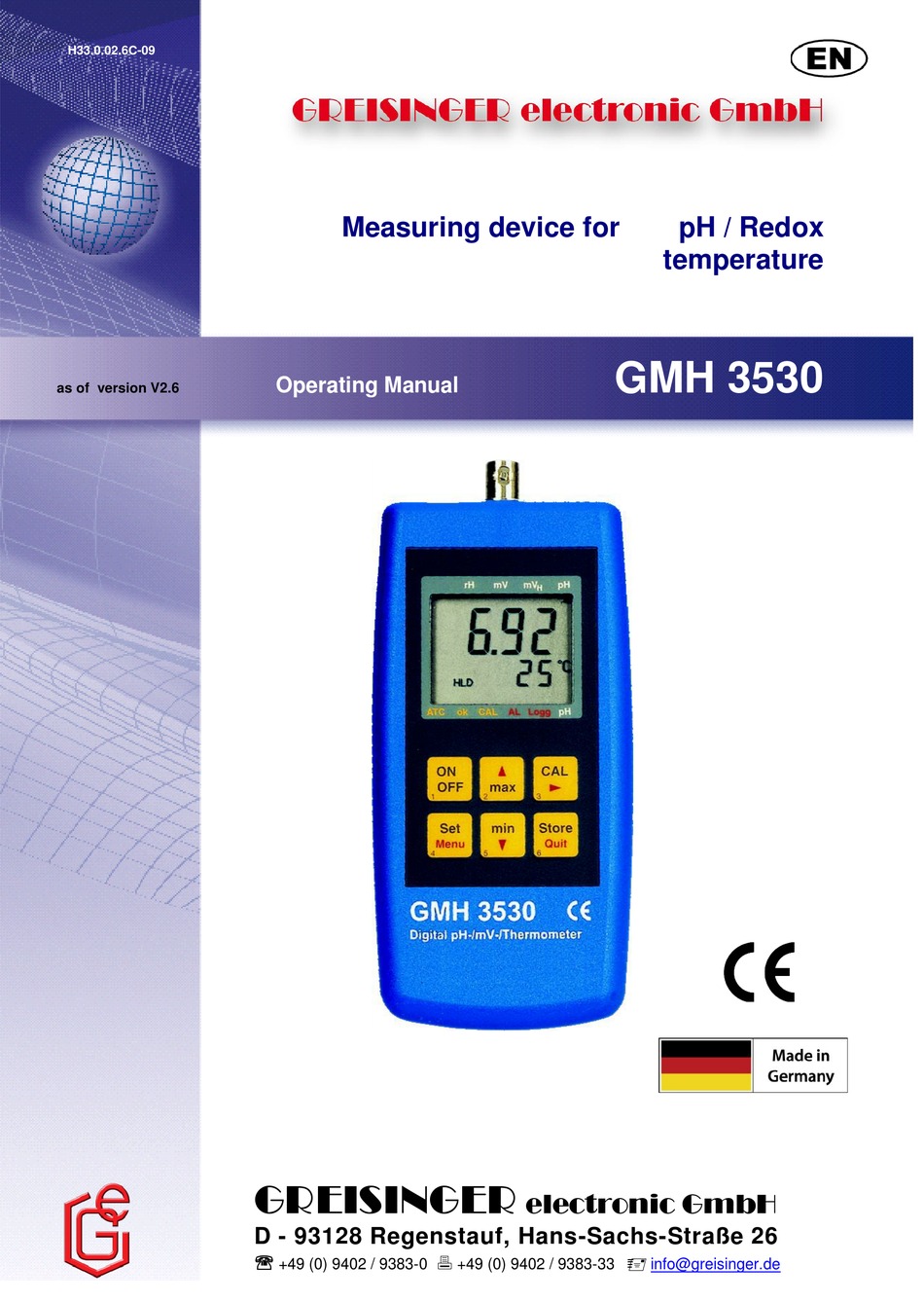

H33.0.02.6C-09
Measuring device for
pH / Redox
temperature
GMH 3530
Operating Manual
as of version V2.6
GREISINGER
electronic GmbH
D - 93128 Regenstauf, Hans-Sachs-Straße 26
+49 (0) 9402 / 9383-0
+49 (0) 9402 / 9383-33
info@greisinger.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMH 3530 and is the answer not in the manual?

Questions and answers

Summary of Contents for GREISINGER GMH 3530

  • Page 1: Measuring Device For Ph / Redox Temperature

    H33.0.02.6C-09 Measuring device for pH / Redox temperature GMH 3530 Operating Manual as of version V2.6 GREISINGER electronic GmbH D - 93128 Regenstauf, Hans-Sachs-Straße 26    +49 (0) 9402 / 9383-0 +49 (0) 9402 / 9383-33 info@greisinger.de...
  • Page 2: Table Of Contents

    H33.0.02.6C-09 Operating Manual GMH 3530 page 2 of 14 Index MEASURING DEVICE FOR PH / REDOX TEMPERATURE .................. 1 DESIGNATED USE ..............................2 GENERAL NOTE ..............................2 OPERATING AND MAINTENANCE ADVICE: ....................... 3 SAFETY REQUIREMENTS: ........................... 3 DISPLAY AND CONTROL ELEMENTS ......................... 4 ............................
  • Page 3: Operating And Maintenance Advice

    H33.0.02.6C-09 Operating Manual GMH 3530 page 3 of 14 Operating and Maintenance Advice: a) When to replace battery: and ´bAt´ are shown in the lower display the battery has been used up and needs to be replaced. The de- vice will, however, operate correctly for a certain time.
  • Page 4: Display And Control Elements

    H33.0.02.6C-09 Operating Manual GMH 3530 page 4 of 14 Display and control elements 5.1 Display elements Main display: pH-value, redox-value (mV, mV ), rH value or user prompt Display elements to show minimum/maximum/ memorized measuring value Display of measuring units...
  • Page 5: Configuration

    H33.0.02.6C-09 Operating Manual GMH 3530 page 5 of 14 Configuration To configurate the device press -key for 2 seconds. Press the -key again to choose between the individual values that can be set. The individual values are changed by pressing the keys to leave configuration menu and save your settings.
  • Page 6: Manual Setting Of Temperature When Operating Device Without Temperature Probe

    -key to acknowledge input; device returns to measuring mode. Manual Setting of pH-Value for measuring function rH Running the GMH 3530 in the rH-measuring mode requires both temperature and pH value. Press shortly again to switch over to the pH-value entering mode: 0.0 …...
  • Page 7: How To Prepare Calibration Solutions Of Standard Series

    H33.0.02.6C-09 Operating Manual GMH 3530 page 7 of 14 9.1 How to prepare calibration solutions of standard series - Fill 2 plastic bottles with 100 ml distilled water each. - Open pH 7 capsule (green) carefully (turn one half of the capsule while pulling and make sure not to spill any solu- tion);...
  • Page 8 H33.0.02.6C-09 Operating Manual GMH 3530 page 8 of 14 2. Calibration point 1: ’Pt. 1’ Place electrode and temperature probe (if any) in the neutral solution stirring gently. The measuring value is stable as soon as the display stops blinking and the ’ok’-arrow is displayed in the left-hand corner of the display.
  • Page 9: Indication Of Electrode State (For Ph-Measurements Only)

    First put pH- and redox electrode and the temperature sensor in the solution, stirring it carefully. 1. How to measure pH-value: Connect the pH-electrode and the temperature sensor to the GMH 3530. Then set GMH3530 to pH-measuring mode and calibrate electrode, if necessary, (p.r.t.
  • Page 10: Error And System Messages

    H33.0.02.6C-09 Operating Manual GMH 3530 page 10 of 14 12 Error And System Messages Error or system Description / Reason Remedy messages General: Low battery voltage replace battery device will only continue operation for a short time Low battery voltage...
  • Page 11: The Ph-Electrode

    H33.0.02.6C-09 Operating Manual GMH 3530 page 11 of 14 Slope is too high - Electrode defective replace electrode - Buffer solution defective use new buffer solution m b a r m b a r Incorrect calibration temperature calibration can only be done at 0..60°C...
  • Page 12: The Redox-Electrode

    H33.0.02.6C-09 Operating Manual GMH 3530 page 12 of 14 14 The Redox-electrode The device has been optimized for electrodes using silver/silver chloride as reference system and the elec- trolyte KCl, 3mol/l. If other types are used, the measuring function mV will supply wrong measuring results.
  • Page 13: The Serial Interface

    H33.0.02.6C-09 Operating Manual GMH 3530 page 13 of 14 15 The serial interface All measuring data and settings of the device can be read and changed by means of the serial interface and a suita- ble electrically isolated interface adapter (GRS3100, GRS3105 or USB3100).
  • Page 14: Specification

    H33.0.02.6C-09 Operating Manual GMH 3530 page 14 of 14 16 Specification: Display ranges: Temperature: -100.0 ... +250.0°C or -148.0 ... +482.0°F 0.00 ... 14.00 pH Redox (ORP): -1999 ... +2000 mV; referring to hydrogen system: -1792 ... +2207 mV (bei 25°C) acc. to DIN 38404 rH 0.0 ...
