- Page 1 Mini Meter Installation Manual Cat No. 6F101, 6F201, 6S101, 6S201, MK240, MO240 DI-000-A3245-00A...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Warnings and Cautions 2 Product Description 2.1 General Description 2.2 Meter Features 2.3 Meter Certifications 2.4 Physical Description 2.4.1 Single Meter 2.4.2 Enclosures 3 Technical Specifications 3.1 Electrical Specifications 3.2 Input/Output Connections 4 Installation Instructions 4.1 Preparation 4.2 List of Materials 4.3 Mounting the Enclosure 4.3.1 Mounting Location... -
Page 4: Warnings And Cautions
If technical assistance is required at any point during the installation, contact information can be found at the end of this manual. Leviton is not responsible for damage to the meter caused by incorrect wiring, which will void the product’s warranty. -
Page 5: Product Description

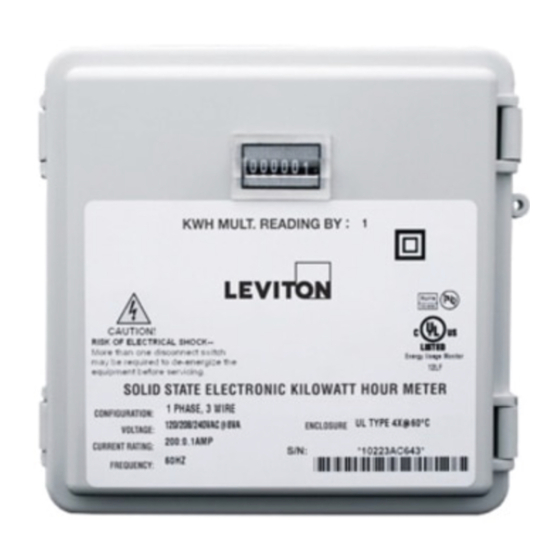

PRODUCT DESCRIPTION General Description The Leviton Mini Meter is a self-powered, current transformer (CT) rated electronic kilowatthour (kWh) meter designed for permanent connection to an electrical service. Mini Meter devices come in single element (2-wire) and dual element (3-wire) configurations. -
Page 6: Enclosures
PRODUCT DESCRIPTION Physical Description 2.4.2 Enclosures 3.568 in [91 mm] 5.904 in [150 mm] 8.465 in [215 mm] 7.795 in [198 mm] 5.716 in [145 mm] 4.716 in [120 mm] 5.904 in [150 mm] Optional mounting position, typical Figure 2 - Small enclosure and mounting dimensions... -
Page 7: Technical Specifications
OSTVI110152 Table 1 - Electrical and Environmental Specifications Product approved for use with included Leviton Current Transformers, as follows: • 200A: Part Numbers CDA02-x12 (CDA02-K12, CDA02-R12, CDA02-L12, CDA02-212, CDA02-312) for Solid Core, 0.72" Diameter CTs or CTD02-K16 for Split Core 1" CTs •... -
Page 8: Input/Output Connections
TECHNICAL SPECIFICATIONS Input/Output Connections and User Display Figure 3 - Mini Meter Connections and Display Display Isolated Output (Kh) Isol Counter X1 X2 X1 X2 10 100 1000 Sealing Load Studs Table 2A - Input Connections Voltage Inputs (wire connections) Description Black wire, voltage input, Line 1, 120 V with respect to neutral... - Page 9 +12 VDC +12 VDC @ 10ma Max output (MMS and MMD models only) (Not Isolated for pre-wiring only) * Recommended Leviton Mechanical Counters part numbers are: MPCTR-1KW (1kWh) and MPCTR-TKW (0.1kWh). Table 3 - Display Indicators LED Indicators Description...
-
Page 10: Installation Instructions
Wires must be 18 AWG or larger and insulated for 300 VAC min (NOT INCLUDED). • Current Transformers (CTs): This product is designed for use with Leviton CTs; see Section 3.2 for details (NOT INCLUDED IN ALL MODELS). • Flexible, non-metallic conduit and fittings; UL Type 4X for outdoor applications (NOT INCLUDED). -
Page 11: Drilling Conduit Holes
INSTALLATION INSTRUCTIONS 4.3.2 Drilling Conduit Holes The bottom panel and lower half of the side panels work best for conduit opening locations in outdoor single meter enclosures. Select the location the makes wire installation easiest for the given environment. If the side panels are used, holes should be centered approximately half an inch from the bottom of the enclosure. -
Page 12: Mounting Procedure And Conduit Installation
INSTALLATION INSTRUCTIONS 4.3.3 Mounting Procedure and Conduit Installation 1. Attach the mounting brackets to the back of the enclosure with the four provided screws as shown in Figure 4. 2. Fasten the enclosure to the selected surface via mounting holes. 3. -
Page 13: Installation Of Current Transformers
fine or imprisonment. 4.5.1 General Requirements • Leviton-provided CT leads are approximately 48 inches. Wire insulation should be stripped so that the bare conductor length that connects to the meter terminal block does not exceed 0.300 inches. - Page 14 INSTALLATION INSTRUCTIONS Variations and Installation of Current Transformers • Leviton split core CTs (Figure 6): The side with the white dot, H1, must face the incoming LINE. White wire connects to X2 terminal, black wire connects to X1 terminal. Figure 6 - Leviton Split Core CTs...
- Page 15 INSTALLATION INSTRUCTIONS Secure clear cover SINGLE ELEMENT, with two screws after wiring MINI METER WIRING DIAGRAM (2 places) LINE LINE 1 NEUTRAL Isolated Output (Kh) Isol Counter 120 V X1 X2 X1 X2 10 100 1000 888888 Optional 12VDC Counter (Kubler Type K46 or Equivalent) LOAD Secure clear cover...
-
Page 16: Testing The Installation
INSTALLATION INSTRUCTIONS Testing the Installation Testing Voltage The LCD illuminates when the Mini Meter has a proper power supply. Voltage should also be tested using an AC voltmeter to verify that the voltage across voltage line terminals (L1 to Neutral and L2 to Neutral) is not in excess of the maximum rated voltage. -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Solution 1. LCD not illuminated • Check to make sure all connections are wired properly • Test the voltage being supplied to the meter using an AC voltmeter • With power off, remove any additional line fuses and test with ohmmeter 2. -
Page 18: Warranty
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option. -
Page 19: Contact Information
8 CONTACT INFORMATION Leviton Manufacturing Co., Inc. 201 N. Service Rd. Melville, NY 11747 Technical Assistance: 1-800-824-3005... - Page 20 © 2018 Leviton Mfg. Co., Inc. DI-000-A3245-00A...
