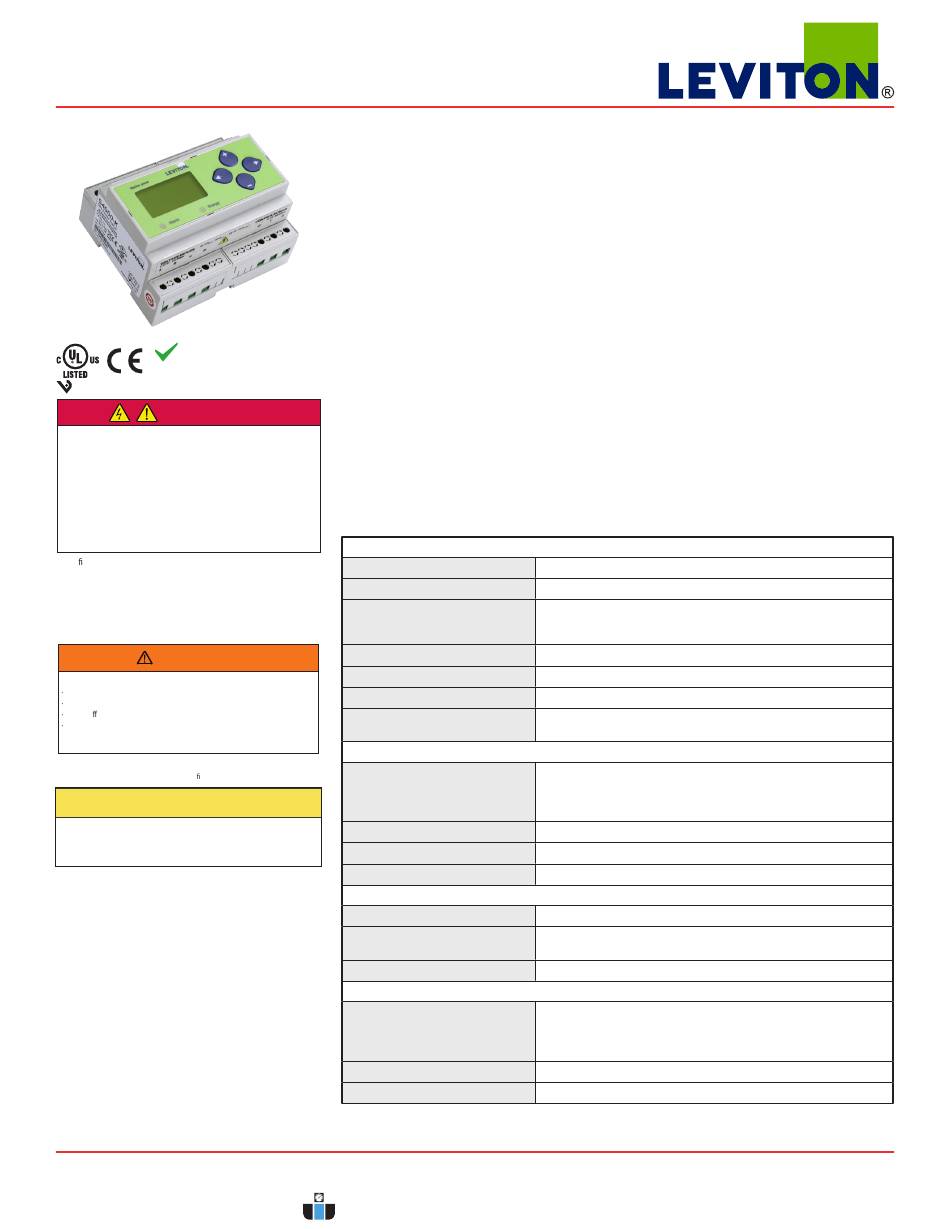

Leviton 4000 Series Installation Manual

Installation Guide
Power Monitoring
RoHS
Compliant
E50C2
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Turn off all power supplying equipment before working on or inside the equipment.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Product may use multiple voltage/power sources. Be sure all sources of power
have been disconnected before servicing.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
A quali ed person is one who has skills and knowledge related to the construction and
operation of this electrical equipment and the installation, and has received safety
training to recognize and avoid the hazards involved.
No responsibility is assumed by Leviton for any consequences arising out of the use of
this material.
Control system design must consider the potential failure modes of control paths and, for
certain critical control functions, provide a means to acheive a safe state during and after a
path failure. Examples of critical control functions are emergency stop and over-travel stop.
WARNING
LOSS OF CONTROL
Assure that the system will reach a safe state during and after a control path failure.
Separate or redundant control paths must be provided for critical control functions.
Test the e ect of transmission delays or failures of communication links.
Each implementation of equipment using communication links must be individually
and thoroughly tested for proper operation before placing it in service.
Failure to follow these instructions may cause injury, death or equipment damage.
For additional information about anticipated transmission delays or failures of the link, refer to
1
NEMA ICS 1.1 (latest edition). Safety Guidelins for the Application, Installation, and Maintenance
of Solid-State Control or its equivalent in your speci c country, language, and/or location.
CAUTION
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
FCC PART 15 INFORMATION
NOTE: This equipment has been tested by the manufacturer and found to
comply with the limits for a class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
residential environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Modifications to this product without the express authorization of the
manufacturer nullify this statement.
For use in a Pollution Degree 2 or better environment only. A Pollution Degree 2 environment
must control conductive pollution and the possibility of condensation or high humidity.
Consider the enclosure, the correct use of ventilation, thermal properties of the equipment,
and the relationship with the environment. Installation category: CAT II or CAT III. Provide
a disconnect device to disconnect the meter from the supply source. Place this device in
close proximity to the equipment and within easy reach of the operator, and mark it as the
disconnecting device. The disconnecting device shall meet the relevant requirements of IEC
60947-1 and IEC 60947-3 and shall be suitable for the application. In the US and Canada,
disconnecting fuse holders can be used. Provide overcurrent protection and disconecting
device for supply conductors with approved current limiting devices suitable for protecting
the wiring. If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the device may be impaired.
ZL0138-0A Page 1 of 24
1.888.610.7664
Compact Modbus Power and Energy Meter
Product Overview

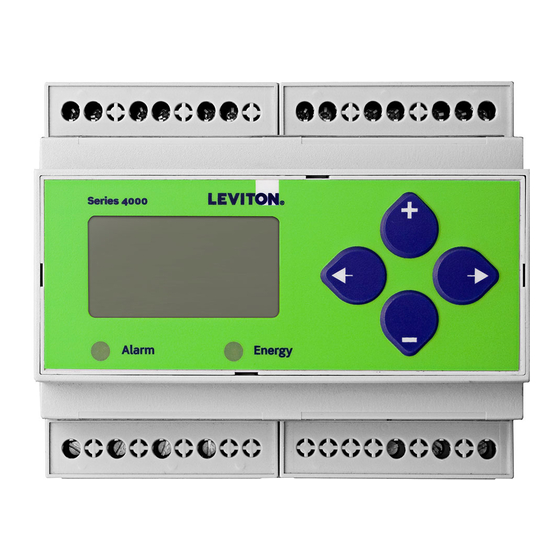

The Series 4000-K DIN rail meter provides a solution for measuring energy data with a single device. Inputs include
control power, CT, and 3-phase voltage. The Series 4000-K supports multiple output options, including solid state
relay contacts, Modbus, and pulse. The LCD screen on the faceplate allows instant output viewing.
The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN50022. The Series
4000-K can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a
panel. The meter is not sensitive to CT orientation to reduce installation errors.
Product Identification
Series 4000-K
Specifications
Real Power and Energy
NEC2011 Article 100
Reactive Power and Energy
Data Update Rate
1
Type of Measurement
Measured AC Voltage
Metering Over-Range
Frequency Range
Measurement Input Range
Ride Through Time
www.calcert.com
15
10 20
5 25
0 30
Series 4000-K
Unidirectional metering, Modbus full data set, pulse and alarm outputs.
MEASUREMENT ACCURACY
IEC 62053-22 Class 0.5S, ANSI C12.20 0.5%
IEC 62053-23 Class 2, 2%
Current 0.4% (+0.015% per °C deviation from 25°C) from 5% to 100% of
range; 0.8% (+0.015% per °C deviation from 25°C) from 1% to 5% of
range
Voltage 0.4% (+0.015% per °C deviation from 25°C) from 90V
Sample Rate 2520 samples per second
1 sec
True RMS up to the 21st harmonic 60 Hz; One to three phase AC
system
INPUT VOLTAGE CHARACTERISTICS
Minimum 90V (156V
L-N
UL Maximums: 600V
CE Maximum: 300V
+20%
Impedance 2.5 MΩ /5 MΩ
L-N L-L
45 to 65 Hz
INPUT CURRENT CHARACTERISTICS
CT Scaling Primary: Adjustable from 5 A to 32,000 A
0 to 0.333 VAC or 0 to 1.0 VAC (+20% over-range), rated for use with
Class 1 voltage inputs
Impedance 10.6 kΩ (1/3 V mode) or 32.1 kΩ (1 V mode)
CONTROL POWER
AC
5VA max.; 90V min.
UL Maximums: 600V
CE Maximum: 300V
DC* 3 W max.; UL and CE: 125 to 300VDC
100 msec at 120VAC
to 600VAC
L-N
) for stated accuracy;
L-L
(347V )
L-L L-N
L-N
(347 V )
L-L L-N
L-N
