- Page 1 TECH 700 DA How true pro’s measure User manual...
-
Page 2: Table Of Contents
Contents Section Page • 1. Intended use • 2. Components of the unit • 3. Insert batteries/Battery replacement • 4. Commissioning • 5. Automatic switch-off time • 6. Angle finder • 7. Spirit level • 8. Bevel gauge • 9. Reference function •... -
Page 3: Intended Use

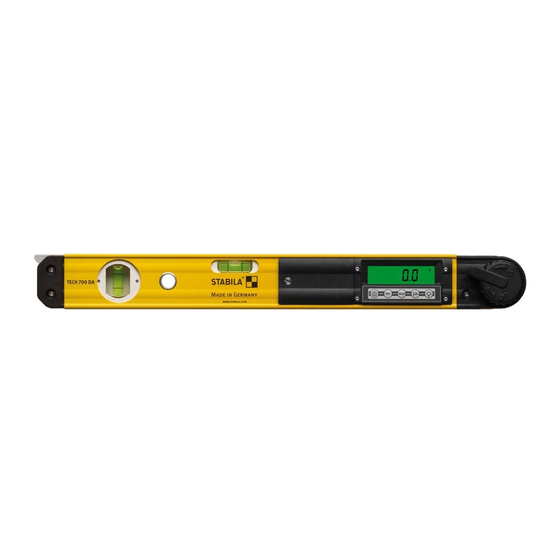

1. Intended use The STABILA TECH 700 DA is an electronic angle finder with digital display for quickly and easily measuring angles. Together with the vials, the angle finder can also be used as a spirit level. On/Off If you still have questions after reading... -
Page 4: Insert Batteries/Battery Replacement
3. Insert batteries / Battery replacement Unscrew battery compartment lid on front, insert new batteries according to symbol in battery compartment. Suitable rechargeable batteries can also be used. LCD: low battery charge - insert new battery Dispose of used batteries at suitable collection points - not with household waste. -
Page 5: Angle Finder
The angle finder with 2 measuring surfaces is also a fully functional spirit level for horizontal and vertical measurements to level construction elements. High-quality STABILA technology makes the vials suitable for measurements: (1) in the normal position 0,75 0,75 0,043°... -
Page 6: Reference Function
9. Reference function The REF button can be used to select any set angle as 0° reference. The angle details now displayed relate to this reference angle. The next time the arm is rotated, only the newly set angle is displayed. The display flashes in this setting. -
Page 7: Lighting
10. Lighting Repeatedly pressing the "Lighting" button switches the display lighting on, to half luminance or off. 11. HOLD function The current measurement can be saved by pressing the HOLD button. The measurement is displayed continuously. In this setting, the display flashes and the HOLD symbol is displayed. -
Page 8: Angle Halving
12. Angle halving The current measurement is halved by pressing the "Angle halving" button. The measurement is displayed continuously. In this setting, the display flashes and the "Angle halving" symbol is displayed. The value is deleted by again pressing the "Angle halving"... -
Page 9: Technical Data
14. Technical Data Accuracy of electronics module: Angle measurement: ± 0.1° spirit level: Accuracy of in normal position: 0.5 mm / m = 0.029° in reverse position: 0.75 mm / m = 0.043° Measuring range: 0° - 270° Batteries : 2 x 1.5 V alkaline, size Mignon, AA, LR6 Operating life : ≥... - Page 10 Europe Middle and South America Australia Asia Africa Canada STABILA Messgeräte STABILA Inc. Gustav Ullrich GmbH P.O. Box 13 40 / D-76851 Annweiler 332 Industrial Drive Landauer Str. 45 / D-76855 Annweiler South Elgin , IL 60177 + 49 63 46 309 - 0 800-869-7460 info@stabila.de...
