How true pro's measure

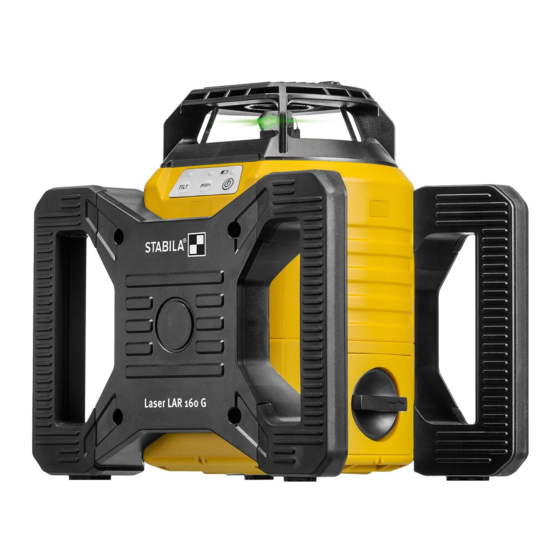

LAR 160
LAR 160 G
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAR 160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stabila LAR 160

Summary of Contents for Stabila LAR 160

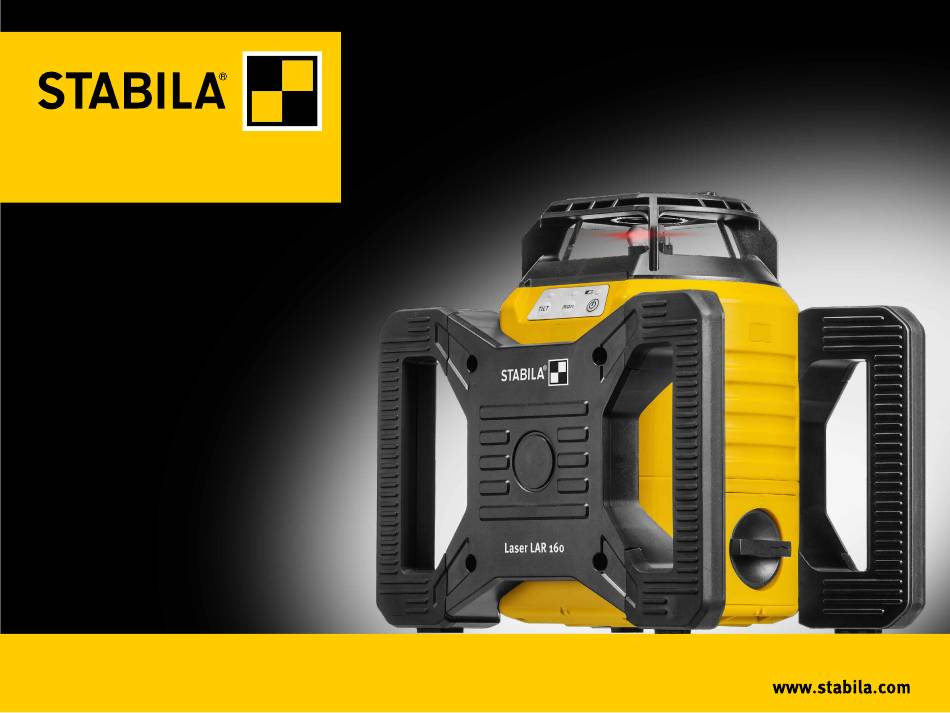

  • Page 1 How true pro’s measure LAR 160 LAR 160 G Operating instructions...

  • Page 2: Table Of Contents

    Contents Section Page • 1. Intended use • 2. Safety instructions for laser units • 3. Components of the unit • 4. Commissioning • 4.1 Battery insertion/replacement • 4.2 Switching the unit on • 5. Operating mode • 5.1 Automatic operation with tilt function •...

  • Page 3: Intended Use

    LASER RADIATION DO NOT STARE INTO BEAM obtaining plumb lines. The LAR 160 / LAR 160 G has a sealed enclosure (IP 65) for use on 510 - 635 nm / <1mW building sites. It is self-levelling within a range of ± 5°.

  • Page 4: Components Of The Unit

    3. Components of the unit 1. Exit window Point laser/laser beam 2. Exit window Rotation beam 3. Button: ON/OFF 4. Button: TILT 5. Button: Manual mode ON/OFF 6. White/red LED: Tilt function 7. White LED: Manual mode 8. Green LED: Orange LED: Battery low 9.

  • Page 5: Commissioning

    4. Commissioning 4.1 Battery insertion/replacement Open thebattery compartment lid (9) in the direction of the arrow and insert new batteries in the battery compartment as indicated by the symbol. Suitable rechargeable batteries can also be used. LED indicator: Orange LED: Battery capacity low - Insert new battery Used batteries should be disposed of at...

  • Page 6: Operating Mode

    Place the laser unit in the appropriate working position (vertical or horizontal). Press the button (ON/OFF) once. The LAR 160 / LAR 160 G is in now in “Automatic operation with tilt function”. The automatic levelling process begins. Once levelling is complete, the beam stays on constantly and begins to rotate.

  • Page 7: Automatic Operation With Relevelling

    5.2 Automatic operation with relevelling In some working conditions (where shocks or vibrations affecting the surface occur, for example), the tilt function is disruptive. With automatic relevelling, on the other hand, the unit is readjusted each time it is knocked out of alignment. Place the laser unit in the appropriate working position (vertical or horizontal).

  • Page 8: Manual Operation

    5.3 Manual operation In manual operation, neither the tilt function nor relevelling are active. In this mode the unit is aligned entirely by hand. The unit does not level itself. Place the laser unit in the appropriate working position (vertical or horizontal). Press the “ON/OFF” button once. The green LED indicates that the unit is switched on and the laser beam flashes.

  • Page 9: Functions

    6. Functions Rotation function The laser beam rotates through 360° around its axis: • Horizontal • Vertical Right angle (90°) In vertical operation, the point laser and the rotation plane form a 90° angle. This allows right angles to be created. Plumb-line function Transfers a determined point from the floor to the ceiling.

  • Page 10: Led Indicators

    7. LED indicators Operation with tilt function --> “Tilt function” Operation without tilt function --> “Automatic operation with relevelling” Unit levels itself Relevelling after interference --> “Automatic operation with relevelling Operation with tilt function Operating in manual mode 30 seconds of fine adjustment --> “Commissioning”, -->...

  • Page 11: Checking Accuracy

    Be sure to adhere as closely as possible to the orientation of the unit as shown. 1. Place the LAR 160 / LAR 160 G on a horizontal surface or on a tripod at a distance of at least 10 m (50’) from a wall, with the operator panel towards the wall.

  • Page 12: Vertical Check

    B. Point 2. 6. Now reposition the laser unit so that it is directly in front of wall B. Align the LAR 160 / LAR 160 G with wall B using the plumb-line laser.

  • Page 13: Technical Data

    Batteries: 2 x 1.5 V alkaline, size mono, D, LR20 Battery life: LAR 160 approx. 40 hours (alkaline) LAR 160 G approx. 20 hours (alkaline) Operating temperature range: -10 °C to +50 °C / 14°F to +122°F Storage temperature range: -25 °C to +70 °C / -13°F to +158°F...
  • Page 14 Europe Central and South America Australia Asia Canada Africa STABILA Messgeräte STABILA Inc. Gustav Ullrich GmbH P.O. Box 13 40 / D-76851 Annweiler 332 Industrial Drive Landauer Str. 45 / D-76855 Annweiler South Elgin, IL 60177, USA + 49 63 46 309 - 0 800-869-7460 info@de.stabila.com...
