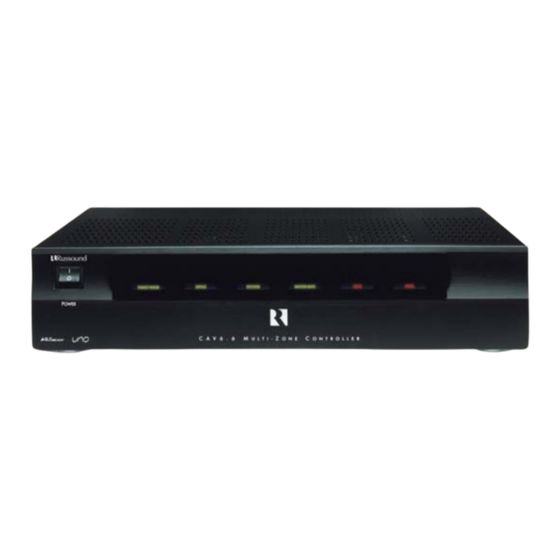

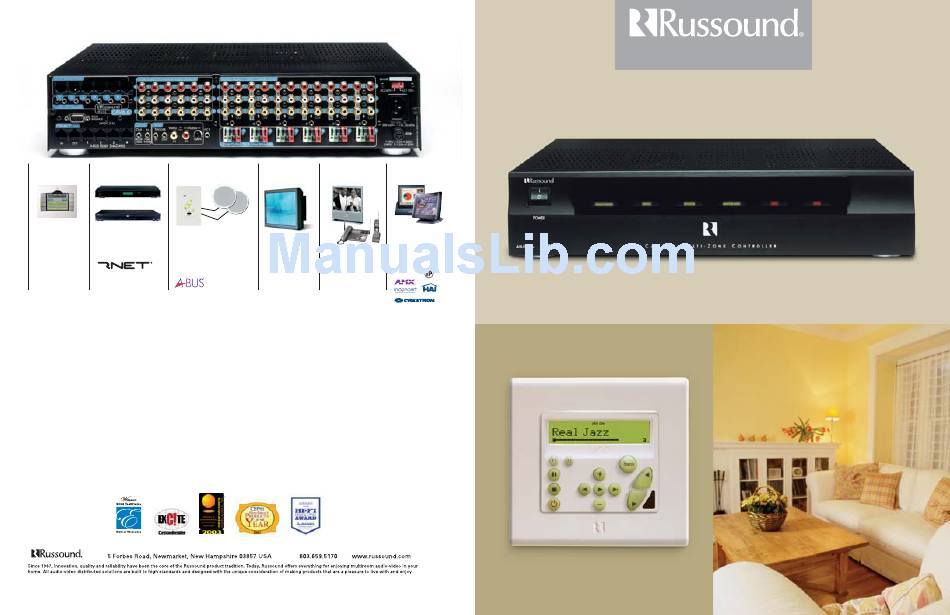

CAV6.6 Six-Zone Controller Amplifier
Easy-to-use Intelligent Expandable
ST2-XM2 Smart Dual Tuner
SMS3 Smart Media Server
UNO-TS2 Smart Color
Touchscreen features
RNET Link IN and OUT means
Built-in A-BUS
®
a high-resolution LCD
seamless operation with all
easily add more entertainment zones
screen and beautifully
Russound RNET-enabled multi-
and change sources 1-4 from optional
rendered displays that
source/multi-zone systems
A-BUS keypads. Or you can use the
give you complete sys-
optional A-OM A-BUS Output Module
tem control and status
to connect an external amplifier and
information in real time
volume control
RNET is a two way technology that
allows Russound components to
communicate with each other.
Specifications
CAV6.6 Multi-Zone Controller Amplifier
Dimensions 17"W x 12"D x 3.5"H
(43 x 30.5 x 9 cm)
Weight 18 lbs (8.1 kg)
Power supply 115 or 230 VAC
Fuse rating 120V input; 3A F.B. 250V
US and Canada
240V input F1.25A L 250V Europe
Frequency response 20 Hz-20 kHz +/- 0.5 dB
Watts per channel 20 watts RMS x 12 into 8 Ohms
Total harmonic distortion 0.05%
Signal to noise ratio 88 dB
A/V source inputs 7 (including front AUX A/V input)
A/V source outputs 6
Zones 6 (expandable up to 6 controllers
or 36 zones)
A-BUS ready ports 4
