Operator's Manual

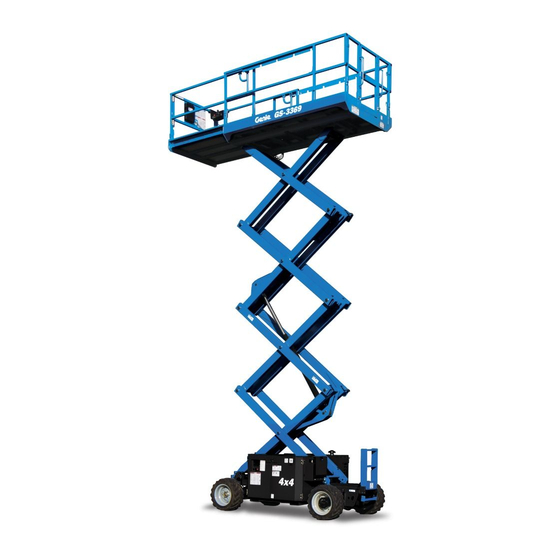

GS-2669RT
GS-3369RT
GS-4069RT
Serial Number Range
from GS6911-101
ANSI/CSA
North America
South America
Asia
with
Maintenance
Information
First Edition
Fourth Printing
Part No. 229831

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS-2669RT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genie GS-2669RT

Summary of Contents for Genie GS-2669RT

  • Page 1 Operator's Manual Serial Number Range GS-2669RT from GS6911-101 ANSI/CSA North America GS-3369RT South America Asia GS-4069RT with Maintenance Information First Edition Fourth Printing Part No. 229831...

  • Page 2: Table Of Contents

    Specifications ............45 Copyright © 2011 by Terex Corporation First Edition: Fourth Printing, February 2016 Genie is a registered trademark of Terex South Dakota, Inc. in the U.S.A. and many other countries. “GS” is a trademark of Terex South Dakota, Inc.

  • Page 3: Introduction

     You read, understand and obey employer’s safety rules and worksite regulations.  You read, understand and obey all applicable governmental regulations.  You are properly trained to safely operate the machine. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 4 CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a property damage message. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...

  • Page 5: Symbol And Hazard Pictorials Definitions

    Do not set up where it Maintain required Only trained Use a piece of cannot be leveled clearance maintenance cardboard or paper to with outriggers personnel should search for leaks access compartments Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 6 Wheel load Transport diagram Side force Wind speed Outrigger load Voltage rating for Pressure rating for air Maximum capacity Crushing hazard power to platform line to platform Hold rail while lowering GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...

  • Page 7: Personal Safety

    If PFPE is required by job site or employer rules, the following shall apply: All PFPE must comply with applicable governmental regulations and must be inspected and used in accordance with the manufacturer’s instructions. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...

  • Page 8: Work Area Safety

    Do not operate the machine during lightning or Maximum occupants storms. Do not use the machine as a ground for welding. 800 lbs / 363 kg 300 lbs / 136 kg 500 lbs / 227 kg GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 9 28 mph / 12.5 m/s when the platform is raised, platform. lower the platform and do not continue to operate the machine. Do not tie the platform to adjacent structures. Do not place loads outside the platform perimeter. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 10 35% (19°) machine. GS-4069RT 35% (19°) Maximum side slope rating, stowed position GS-2669RT 40% (22°) GS-3369RT 35% (19°) GS-4069RT 35% (19°) Note: Slope rating is subject to ground conditions and adequate traction. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 11 Observe and use color-coded direction arrows on the platform controls and the platform decal plate Do not enter or exit the platform unless the for drive and steer functions. machine is in the stowed position. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 12 Do not use the machine as a ground for welding. of the crane have been locked out and/or precautions have been taken to prevent any potential collision. No stunt driving or horseplay while operating a machine. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 13 Do not raise the platform unless all four outriggers Be sure all maintenance has been performed as are properly lowered, the footpads are in firm specified in this manual and the appropriate Genie contact with the ground and the machine is level. service manual.
  • Page 14 Do not contact the battery terminals or the cable clamps with tools that may cause sparks. Component Damage Hazard Do not use any battery charger greater than 24V to charge the batteries. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...

  • Page 15: Legend

    20 Entry ladder Manual storage container readout screen 21 Transport tie-down Platform controls 15 Outrigger housing 22 Safety arm Platform extension (if equipped with outriggers) 23 GFCI outlet LPG tank Fuel tank Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...

  • Page 16: Controls

    Gasoline/LPG models: LPG select button with 13 Red Emergency Stop button indicator light 14 20A circuit breaker for controls circuit Engine idle select button with indicator light 15 15A breaker for controls circuit LCD readout screen GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 17 Engine idle select button with indicator light Press this button to select the engine idle setting. Light on indicates high idle is selected. Light off indicates low idle is selected. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 18 15 Lift function enable button with indicator light Horn button 16 Proportional rocker switch for outrigger up/down and platform up/down Generator select button with indicator light Machine on incline button with indicator light: Low speed operation for inclines GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 19 Press this button to turn the generator on. machine will move in the direction that the Indicator light will be on. Press the button yellow arrow points. again to turn the generator off. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 20 With the lift function enable button indicator light on, move the rocker switch up and the platform will raise. Move the rocker switch down and the platform will lower. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...

  • Page 21: Inspections

    Scheduled maintenance inspections shall be performed by qualified service technicians, according to the manufacturer’s specifications and the requirements listed in the responsibilities manual. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 22  Drive motors  Wear pads  Tires and wheels  Limit switches, alarms and horn  Alarms and beacons (if equipped)  Nuts, bolts and other fasteners  Brake release components GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 23 3 Always perform function tests prior to use. Know and understand the function tests before going on to the next section. 4 Inspect the workplace. 5 Only use the machine as it was intended. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 24 Result: The engine should shut off and no descent alarm should sound while the platform functions should operate. is lowering. Pull out the red Emergency Stop button to the on position and restart the engine. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 25 Result: The drive function should not work in either direction. The lift function should not work. Result: The red error indicator light on the platform will be on. 15 Remove the tilt sensor test tool. 16 Lower the platform. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 26 25 Activate the up/down rocker switch in the direction indicated by the yellow triangle. direction indicated by the yellow arrow. Result: The platform should lower. The descent alarm should sound while the platform is lowering. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 27 39 Press and hold the lift function enable button. Activate the up/down rocker switch in the direction indicated by the yellow arrow. Result: The platform should lower. Note: The Emergency Stop button can be pushed when the test is performed. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 28 45 Select the engine idle button to contact with the ground. indicate high idle. Light on indicates high idle. Note: Verify that there are no fault codes shown on ground control display. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 29 It is the operator’s responsibility to read and remember the workplace hazards, then watch for and avoid them while moving, setting up and operating the machine. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 30 Label – Platform Controls Location 82558 Warning – Skin Injection Hazard 82561 Danger – Crushing Hazard 82793 Instructions – Operating Instructions, Ground 97602 Warning – Explosion Hazard 97719 Label – Safety Arm GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 31 230804 T114635 or 82558 82561 T114637 52475 28373 T114636 or 28175 28174 Serial Label or 28235 28373 230804 114202 52475 31060 T114637 Shading indicates decal is hidden from view, i.e. under covers Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 32 Below is a numerical list with quantities and descriptions. Decal inspection continued from previous page. Part No. Decal Description T114635 Label – Wheel Load, GS-2669RT T114636 Label – Wheel Load, GS-3369RT T114637 Label – Wheel Load, GS-4069RT T114638 Instructions – Max Capacity, 1500 lbs / 680 kg, GS-2669 T114639 Instructions –...
  • Page 33 230804 T114635 or 82558 82561 T114637 52475 28373 T114636 or 28175 28174 Serial Label or 28235 28373 230804 114202 52475 31060 T114637 Shading indicates decal is hidden from view, i.e. under covers Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 34 Label – Maximum Capacity, GS-3369 Part No. Decal Description 230811 Label – Maximum Capacity, GS-4069 28158 Label – Unleaded T114635 Label – Wheel Load, GS-2669RT 28159 Label – Diesel T114636 Label – Wheel Load, GS-3369RT 28160 Label – Liquid Petroleum Gas T114637 Label –...
  • Page 35 First Edition • Fourth Printing Operator's Manual Inspections Additional decals for models with outriggers Shading indicates decal is hidden from view, i.e. under covers Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...

  • Page 36: Operating Instructions

    That means 4 Inspect the workplace. every new operator should perform a pre-operation inspection, function tests, and a workplace 5 Only use the machine as it was inspection before using the machine. intended. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 37 20 seconds. Select the engine idle (rpm) by pressing the idle select button. There are two settings for engine idle:  Indicator light off: low idle  Indicator light on: high idle Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 38 If the indicator light is on red, push in and pull out the red Emergency Stop button to reset the system. If the light stays red, tag and remove the machine from service. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 39 0.3 m ÷ 3.6 m = 0.083 x 100 = 8.3% grade If the slope exceeds the maximum slope or side slope rating, then the machine must be winched or transported up or down the slope. See Transport and Lifting section. Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 40 Turn the key switch to the off position and remove the key to secure from unauthorized machine and fixed objects. use. Be aware of the direction the machine will travel Chock the wheels. when using the controller. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...

  • Page 41: Transport And Lifting Instructions

     Genie customers needing to containerize any path is clear of all lift or Genie product should source a qualified obstructions. freight forwarder with expertise in preparing, loading and securing construction and lifting Reverse the procedures described to re-engage equipment for international shipment.
  • Page 42 Turn the key switch to the off position and remove the key before transporting. Inspect the entire machine for loose or unsecured items. If the railings have been folded down, secure them with straps before transporting. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 43 Attach the rigging only to the designated lifting points on the machine. Y Axis Adjust the rigging to prevent damage to the machine and to keep the machine level. X Axis Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...

  • Page 44: Maintenance

    Indicates that tools will be required to perform this procedure. Indicates that new parts will be required to perform this procedure. Indicates that a cold engine is required before performing this procedure. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...
  • Page 45 Add oil as needed. Do not overfill. Fuel Type Low Sulfur Diesel (LSD) Hydraulic oil specifications Perkins 403F-11 Engine Hydraulic oil type Chevron Rando HD equivalent Fuel Type Low Sulfur Diesel (LSD) Part No. 229831 GS-2669RT • GS-3369RT • GS-4069RT...
  • Page 46 Note: Adding terminal protectors and a corrosion preventative sealant will help eliminate the corrosion on the battery terminals and cables. GS-2669RT • GS-3369RT • GS-4069RT Part No. 229831...

  • Page 47: Specifications

    2.79 x 1.6 m be used only with adequate safety factors. Platform extension 105 in 2.67 m Continuous improvement of our products is a Genie length policy. Product specifications are subject to change without notice or obligation. Part No. 229831...
  • Page 48 Platform length x width 110 in x 63 in 2.79 x 1.6 m Continuous improvement of our products is a Genie Platform extension 105 in 2.67 m policy. Product specifications are subject to change length without notice or obligation.
  • Page 49 Platform length x width 110 in x 63 in 2.79 x 1.6 m Continuous improvement of our products is a Genie Platform extension 105 in 2.67 m policy. Product specifications are subject to change length without notice or obligation.
