ACCESS LINK SET UP AND
DAILY OPERATION INSTRUCTIONS

DETERMINE SET-UP LOCATION AND PLUG IN POWER SUPPLY

ENSURE THE SYSTEM IS POWERED ON
4. Press the Access Link power button to power on.
5. When powered on, the blue LED will glow.
6. Remove microphone from charger and place the microphone around your neck. Ensure the top of
the microphone is at the collarbone.
7. Press the power/mute button. The teacher status will turn blue, indicating the microphone is active.
8. Microphone volume may be adjusted at the microphone by using the UP/DOWN buttons on the side
of the Flexmike. It may also be adjusted by using the MICROPHONE volume knob on the front of the
Access Link or the optional Media Connector.
Power / Mute
7
2
6
USING A WIRELESS AUDIO LINK
10. Plug your external audio equipment (for example,
laptop), into the Audio In 3.5mm jack on the back of the
Access Link, or into one of the input jacks on the back
of the optional Media Connector labeled "Audio In", using
a 3.5mm patch cable.
11. Adjust volume at the audio source. If necessary, further
volume adjustment may be made using the Audio In
volume knob on the front of the Access Link or the Media
Connector.
For complete operating instructions, go to www.lightspeed-tek.com/AL-usermanual (or scan the 2D barcode on the previous page).

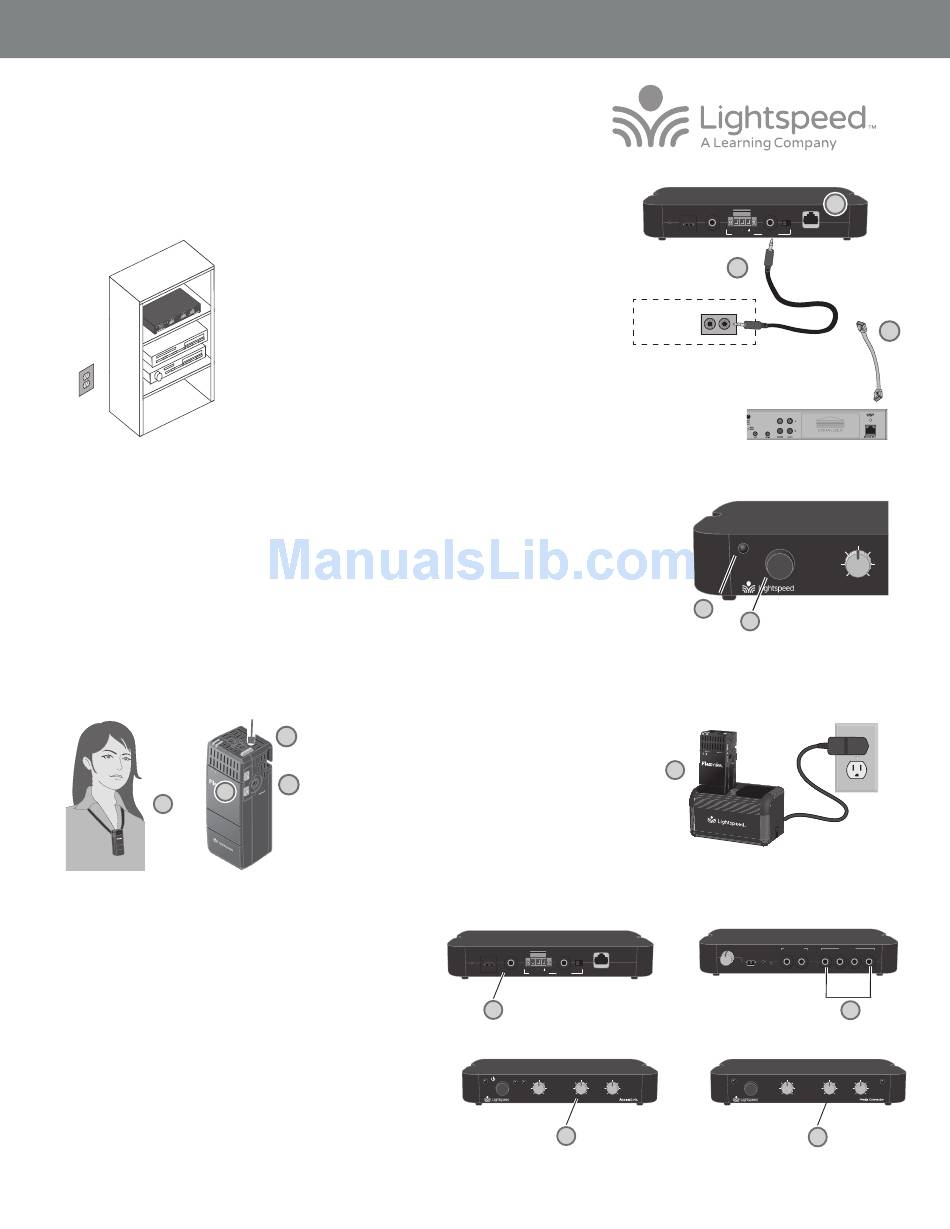

1. The Access Link is generally located near the amplifier.
2. Plug one end of the included 3.5mm cable into the AUDIO
OUTPUT connection on the Access Link. Plug the other end
into an audio input connection on the amplifier.
3. Use the Cat5e cable to connect a Lightspeed CAT 885 to
the Access Link to provide power and send audio through
the system. When connecting Access Link to a different
amplifier, plug the micro USB end of the power cable into the
USB port on the back of the Access Link. Plug the other end
of the cable into the USB1 power adaptor, then plug into an
outlet.
CHARGE FLEXMIKE NIGHTLY
7
9. Place the Flexmike into the cradle
charger. The power button light will
8
glow red and the Mic status light will glow
blue. When Flexmike is fully charged, the
power button light on the mic will change
to green.
