Lightspeed FP 1000 User Manual

Infrared wireless microphone system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FP 100
Infrared Wireless Microphone System
U s e r M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lightspeed FP 1000

Summary of Contents for Lightspeed FP 1000

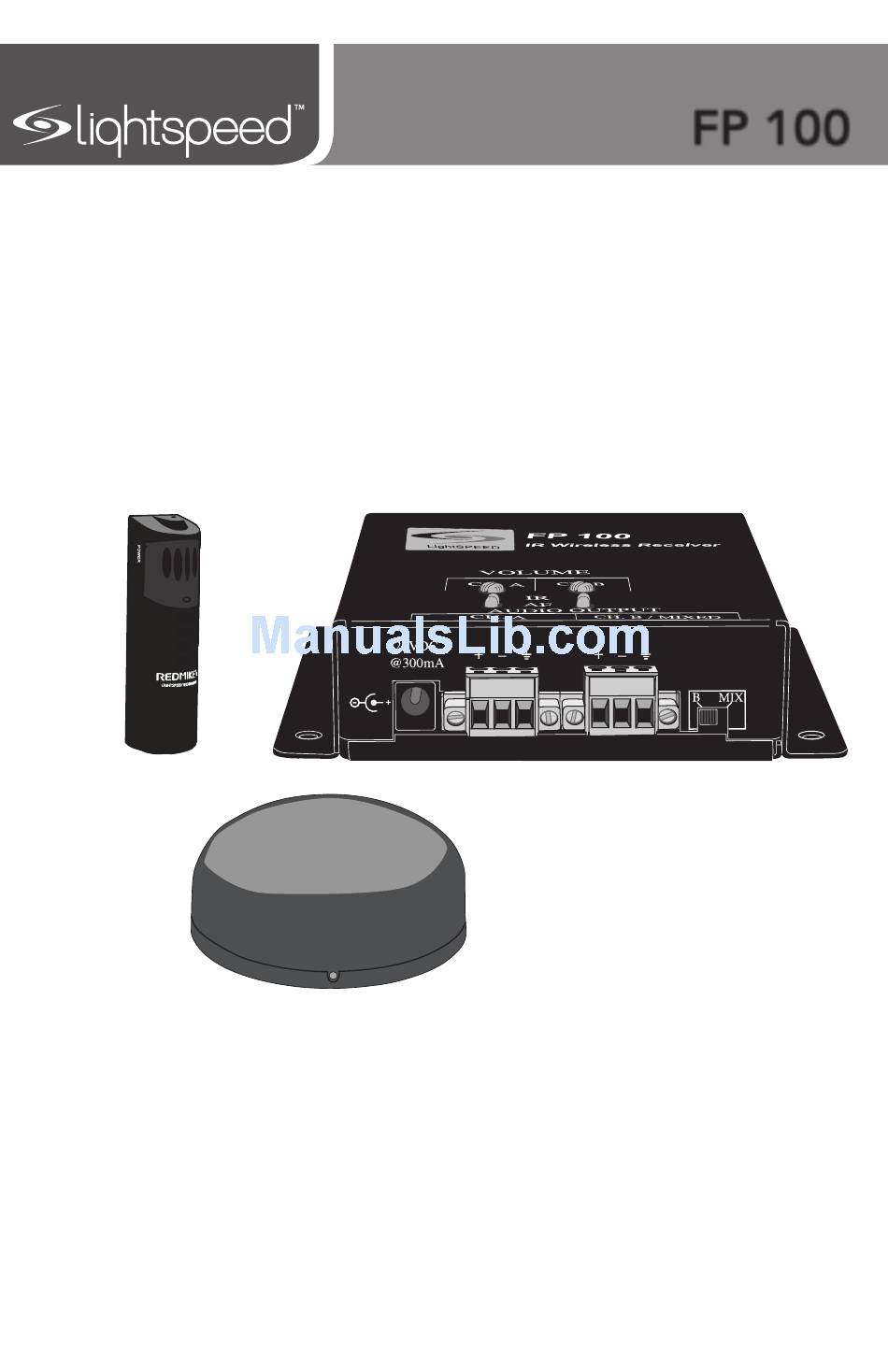

  • Page 1 FP 100 Infrared Wireless Microphone System U s e r M a n u a l...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1: Important Safety Instructions Overview System Components and Unpacking Optional Components FP100 Front and Top Panel Controls FP100 Rear Controls REDMIKE VC Controls and Connections Cradle Charger Controls and Connections SECTION 2: Step 1. Location of the Amplifier Set-up &...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 12. Use only with a cart, stand, tripod, bracket or table Keep these instructions. specified by the manufacturer, Heed all warnings. or sold with the apparatus. When a cart is used, use Follow all instructions. caution when moving the cart/ Do not use the apparatus near apparatus combination to...

  • Page 5: Overview

    SECTION 1: OVERVIEW SYSTEM COMPONENTS AND UNPACKING The standard configuration of the FP 100 will contain: FP100 Infrared Wireless Microphone System Amplifier Power Supply Infrared Sensor and Cable Cradle Charger and Power Supply REDMIKE™ VC Volume Control Audio Patch Cable Microphone...

  • Page 6: Optional Components

    OPTIONAL COMPONENTS Optional equipment which may be part of your FP100 system: REDMIKE® VC REDMIKE Share Classroom Handheld Mic & Microphone Charger Cable LT-71 LT71 LightMic and Charger Cable Standard Components FP100 Compact Infrared Microphone Receiver 24V-250 24V/250A power supply for FP 100 SR70F Infrared sensor with mounting bracket PC50F...

  • Page 7: Front And Top Panel Controls

    FRONT AND TOP PANEL CONTROLS 1. CH. A VOLUME: sets the nominal 5. DC POWER INPUT: Plug the 24V volume level of the teacher power supply into this jack. microphone (transmitter switched 6. CH. A AUDIO OUTPUT: This to CH A). Rotating the adjustment balanced audio output can be knob clockwise increases the connected to the mic or line input...

  • Page 8: Rear Panel Controls

    REAR PANEL CONTROLS 1. SENSOR SHORT: This LED glows when there is a short in one of the sensor cables. 2. SENSOR INPUT: The IR sensor cable connects to the sensor input jacks. Connect additional sensors to the FP100 to cover large or odd-shaped rooms.
  • Page 9 Channel A. The battery should only be 7. VOLUME CONTROLS (UP - replaced by a Lightspeed AA DOWN) rechargeable sensing battery (part # BA-NH2A27). 8. CHARGER CONTACTS (+ -): These contacts interface with the 4.
  • Page 10 LT71 or the REDMIKE is sensed, (REDMIKE Yellow Share microphones here. Protective Tab may not have been completely removed—see page 5, item 4.) A blinking green LED means a non- Lightspeed battery has been installed (possibly an alkaline battery).

  • Page 11: Set-Up & Use

    SECTION 2: SET-UP & USE 1. LOCATION OF THE AMPLIFIER Before running wires to the FP100 or plugging in, find a suitable, stable location for the amplifier. Ideally, the teacher should have ready access and an electrical outlet should be within six feet. The best possible location for the FP100 is in a media cabinet with any existing audio/video equipment.

  • Page 12: Ir Sensor Installation

    2. IR SENSOR INSTALLATION Sensor location is very important for optimum performance of the FP100 Classroom Audio System. • BEST: On the ceiling at or near the middle of the classroom. • GOOD: High and centered on the long wall. •...

  • Page 13: Suspended Ceiling Mount

    2. IR SENSOR INSTALLATION CONT’D Suspended Ceiling Mount Wall/Solid Ceiling Mount wall mounting strip c-clip the ceiling tile nearest the grid rail in 1. Lift your desired sensor location. Guide one side of the C-clip over one edge of the grid rail.
  • Page 14 3A. CONNECTING TO THE AMPLIFIER 1. Locate the audio patch cable 2. Strip the cable’s rubber insulation ½” (see A in illustration) and then strip the outer sheath of the signal wire leaving ¼” exposed (see B in illustration). Audio Patch Cable Ground...
  • Page 15 3A. CONNECTING TO THE AMPLIFIER CONT’D 3. Insert the stripped wires into the marked openings, left and right, in the Euro-block. 4. Secure the inserted wires by tightening the retaining screws.
  • Page 16 3A. CONNECTING TO THE AMPLIFIER CONT’D 5. Ensure the B/MIX switch is pushed to the right to select the MIXED output. 6. Connect the ¼˝ connector into the audio or microphone input on the existing amplifier. 3B. INDIVIDUAL CHANNEL CONNECTION (ALTERNATE CONNECTION METHOD) This method allows for individual control of each microphone channel...
  • Page 17 3C. FINALIZING CONNECTIONS 1. Ensure all top panel volume controls are turned fully counterclockwise. 2. Ensure audio output connection(s) are securely connected into the FP 100 and the mixer/amplifier. Make sure the CH.B/MIX switch is in the appropriate setting based on your output method (see pg.
  • Page 18 Troublshooting section for more information. REDMIKE VC incorporates alkaline protection into the microphone design. Always use a Lightspeed rechargeable sensing battery. Replacement AA NiMH batteries may only be purchased through Lightspeed Technologies (part # NH2A27). Do not attempt to charge alkaline batteries. They can overheat and expand creating a significant hazard and damaging the microphone (this is not covered by warranty).
  • Page 19 5. OPERATING THE REDMIKE VC Once the REDMIKE VC is charged, follow these steps to set it up for use. 1. Turn the FP100 power on. The blue LED will glow. 2. Turn on the REDMIKE VC. The red IR LED on the FP 100 will light to indicate a signal is being received.
  • Page 20 USING THE REDMIKE VC TO AMPLIFY EXTERNAL AUDIO EQUIPMENT The REDMIKE VC includes a 3.5mm audio input jack to connect to an audio source like a laptop or MP3 player. The REDMIKE VC will transmit the audio signal to be played through the system. If your system includes two REDMIKE VCs, use the student microphone (already set to Channel B).

  • Page 21: Optional Accessories

    B. If you are using a single slide the door downward. The microphone, we recommend using battery should only be replaced Channel A. by a Lightspeed AA rechargeable sensing battery (part # NH2A27). 7. VOLUME CONTROLS (UP - DOWN) 4. YELLOW PROTECTIVE TAB: Slide 8.
  • Page 22 REDMIKE : Charging Before use, the REDMIKE should be charged. See page 18 and follow the same instructions for the REDMIKE REDMIKE: Initial Set-up See page 19 and follow steps 1-5 to setup the REDMIKE. Note: The REDMIKE does not have volume control on the microphone like the REDMIKE VC.
  • Page 23 OPTIONAL LT71: Controls and Connections LT-71 LT-71 1. ON/OFF/MUTE Switch MP3 player or other audio source into this jack to wirelessly transmit 2. CHANNEL SELECT SWITCH (CH the audio signal to be played A/B): Use this to choose Channel through the system. A or B.
  • Page 24 LT71: Charging 1. Ensure that the LT71 is turned off. 2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGER on the side of the LT71 and plug the other end into the charging jack on the rear of the REDMIKE cradle charger.
  • Page 25 LT71: Initial Set-up Once the LT71 is charged, follow these steps to set it up for use. 1. Turn the FP100 power switch to the ON position. The red LED on the switch will glow. 2. Turn on the LT71 and set the operating channel to “B”.
  • Page 26 REDMIKE Share: Controls and Connections 1. POWER SWITCH 2. POWER/CHARGE INDICATOR: this light glows blue when turned on and turns off to indicate low battery level. When charging, the light glows red. 3. AUDIO INPUT: plug a laptop, MP3 player or other audio device into this jack to wirelessly transmit the audio signal to be played through the system.
  • Page 27 REDMIKE Share: Charging 1. Ensure that the REDMIKE Share is rechargeable batteries are factory turned off. installed. The LED on the front of the Handheld Mic will glow green 2. Make sure the cradle charger when charging. is plugged into a wall outlet. Connect one end of the charging 3.
  • Page 28 REDMIKE Share: Initial Set-up 1. Ensure the FP 100 is ON. The red LED on the power switch will glow. 2. Turn on the REDMIKE Share by sliding the switch to the top position. 3. Grip the barrel in the center section.
  • Page 29 INITIAL SET-UP: OPTIONAL IR MEDIA CONNECTOR 1. The iR Media Connector uses the same channel (channel B) as the optional second microphone (REDMIKE, LT71, or RMS). As a result, they cannot be used simultaneously. If you have a second microphone, turn it off before transmitting audio from the iRMC.
  • Page 30 OPTIONAL IR MEDIA CONNECTOR AUDIO INTEGRATION The iRMC is designed to integrate with the FP100 and multiple audio sources, allowing other instructional technologies to be clearly heard throughout the classroom. Video In Projector Projector IR Sensor IR Transmission Teacher’s Microphone Audio Out VGA Out Speaker(s)

  • Page 31: Troubleshooting

    If you review these instructions and still have questions, write down the serial number and model number of your system and call Lightspeed Technical Services at 800.732.8999, 5 a.m. – 5 p.m., PST. Customers outside...
  • Page 32 TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE • Speak in a natural voice. A normal conversational speech levelwill provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate amplification (approximately 5 – 10 dB) above ambient room noises. • Avoid wearing jewelry that may rub or bump against the microphone.

  • Page 33: Warranty

    Repair 1. Warranty on infrared microphones by other than Lightspeed or its is FIVE (5) YEARS. authorized service agencies will void this guarantee. Information 2. Warranty on Lightspeed...

  • Page 34: Safety Warnings And Certifications

    European Union Directives: 89/336/EEC, 92/31/EEC, 93/68/ EED, and 2004/108/EC Electromagnetic Compatibility Directives. Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC on Waste Electrical and Electronic Equipment (“WEEE Directive”). Please visit our website at www.Lightspeed-tek.com for more...

  • Page 35: System Specifications

    SYSTEM SPECIFICATIONS OVERALL SPECIFICATIONS Carrier Frequencies (IR) 2.06/2.54; 3.2/3.7 MHz Signal-to-Noise Ratio > 73 dB Dynamic Range > 73 dB Maximum Deviation ±50 Hz Frequency Stability ±3% Frequency Response 100 Hz - 10k Hz Audio Output Level 0 - 1.0 V RECEIVER SPECIFICATIONS Receiver Type Superheterodyne...
  • Page 38 LIG HTSP EED TECH NOLO GIES 1 1509 SW HERMAN RO AD / TUAL ATI N, OR 970 62 TOL L F REE: 800.732 .89 99 / PHO NE: 503.68 4.5 538 / FAX: 503.684.3197 LIG HTSPEE D-TEK. COM MN0067US01-3...
