TTP-2410M/346M/644M
TTP-246M Plus/344M Plus
Bar Code Printer Service Manua

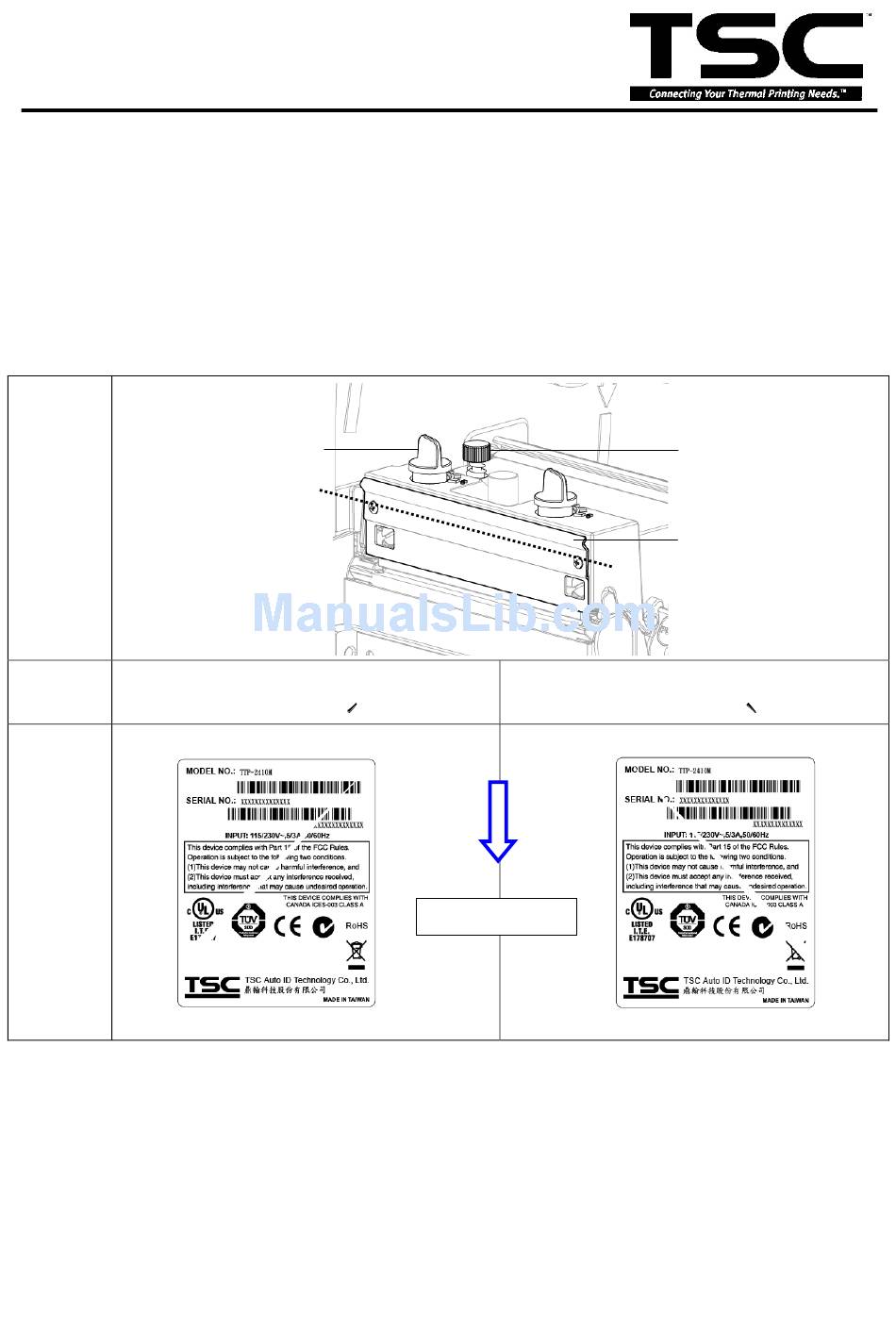

4.2 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
This printer has been fully tested before delivery. There should be no ribbon wrinkle
presented on the media for general-purpose printing application. Ribbon wrinkle is related to
the media thickness, print head pressure balance, ribbon film characteristics, print darkness
setting...etc. In case the ribbon wrinkle happens, please follow the instructions below to
adjust the printer parts.
Print head pressure
adjustment knob
Adjustable
Printer
Parts
1. Wrinkle happens from label lower left to
Symptom
upper right direction (" ")
Wrinkle
Example
l
2. Wrinkle happens from label lower right
to upper left direction (" ")
Feed direction
38
38
Z-axis mechanism
adjustment knob
Ribbon guide plate
Advertisement
Related Manuals for TSC TTP-2410M
Summary of Contents for TSC TTP-2410M
-
Page 1: Mechanism Fine Adjustment To Avoid Ribbon Wrinkles
TTP-2410M/346M/644M TTP-246M Plus/344M Plus Bar Code Printer Service Manua 4.2 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles This printer has been fully tested before delivery. There should be no ribbon wrinkle presented on the media for general-purpose printing application. Ribbon wrinkle is related to the media thickness, print head pressure balance, ribbon film characteristics, print darkness setting…etc. - Page 2 TTP-2410M/346M/644M TTP-246M Plus/344M Plus Bar Code Printer Service Manua Adjust the print head pressure adjustment knob Adjust the print head pressure adjustment knob Left knob Right knob Right knob Left knob The print head pressure adjustment knob has 5 The print head pressure adjustment knob has 5 levels of settings.
