Thermoplan Black&White 3 CTS Technical Manual

Cut sheet CTS (USA / CAN)
4.8 lb
3.3 lb

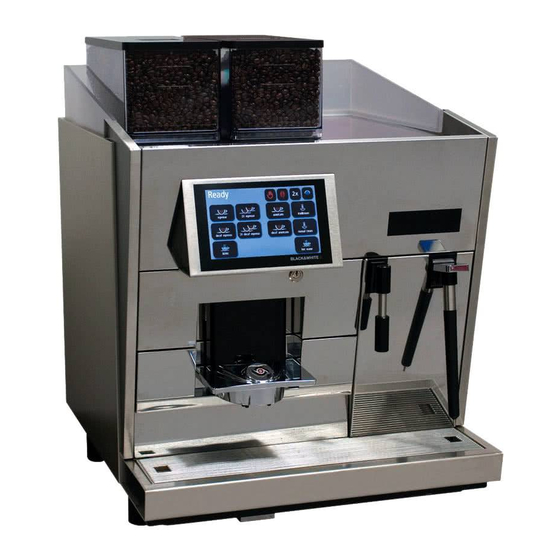

Automatic coffee machine Black&White 3 CTS
Connection
Output
Dimensions
Coffee spout hight standard
Weight
Water connection
Water pressure
Chlorine
TDS
Hardness
pH
Alkalinity
Iron
Conversion table water hardness
Water hardness DE
1° dH 1.0
1° fH 0.56
1° e 0.8
1° ppm 0.056
1 mval/I 2.8
For more information see Technical Manual.
© 2015 Thermoplan AG, Subject to change
20.4
208 VAC | 30 A | 60 Hz
20.4 x 23.6 x 30.5 (32.4) in (W / D / H)
FR EN
1.79 1.25
1.0 0.7
1.43 1.0
0.1 0.07
5.0 3.5
Technical Manual
optional
2
Space
behind
the
machine
Drainage
The distance between the drain
and the machine must not be more
than 40 in. Make sure there is no
6200 W
dip or any back pressure in the
drain hose. The end of the hose
must not be in the water.
3.14-6.8 in
172 lb
3/8"
Hole diameter 2.7 in for water inlet and outlet.
2-4 bar / 30-60 psi
Also possible for electric cords.
none
70-200 ppm
5-8 °dH (8-14 °fH)
6.8-7.4
less than 100 ppm
less than 0.25 ppm
Ppm Mval/l
17.8 0.357
10.0 0.2
14.3 0.86
1.0 0.02
50.0 1.0
Hole 5.9 x 5.9 in for coffee grounds drawer.
Special grounds drawer needed.
REV-9
23.6
max.
40 in
20.4
Ø2.7
5.9
6.8
1.17
