Cut sheet CTM-RF
1.5 kg

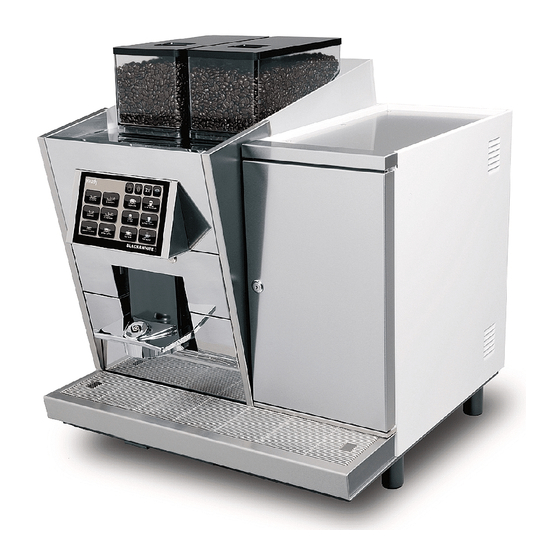

Automatic coffee machine Black&White 3 CTM-RF
Connections
Output
Dimensions
Coffee spout height standard
Coffee spout height with POD
Weight
Water connection
Water pressure
Chlorine
TDS
Hardness
pH
Alkalinity
Iron
Conversion table water hardness:
Water hardness GE
1° dH 1.0
1° fH 0.56
1° e 0.8
1° ppm 0.056
1 mval/I 2.8
For more information see Technical Manual.
© 2015 Thermoplan AG, Subject to change
Technical Manual
optional
2.2 kg
600
220-240 VAC | 13A | 50-60 Hz
600 x 600 x 730 (780) mm (W / D / H)
FR EN Ppm
1.79 1.25 17.8
1.0 0.7 10.0
1.43 1.0 14.3
0.1 0.07 1.0
5.0 3.5 50.0
50
Space
behind the
machine
Drainage
The distance between the drain
and the machine must not be more
than 1 m. Make sure there is no
2400-2900 W
dip or any back pressure in the
drain hose. The end of the hose
must not be in the water.
80-173 mm
80-163 mm
77.5 kg
Hole diameter 70mm for water inlet and outlet.
3/8"
Also possible for electric cords.
2-4 bar / 30 -60 psi
none
70-200 ppm
5-8 °dH ( 8-14 °fH)
6.8-7.4
less than 100 ppm
less than 0.25 ppm
Mval/l
0.357
0.2
0.86
0.02
1.0
Hole 150 x 150mm for coffee grounds drawer.
Special grounds drawer needed.
REV-9
600
600
250
175
(Kühlschrank/
70 Refrigerator)
O
150
175
max.
1 meter
1.11
