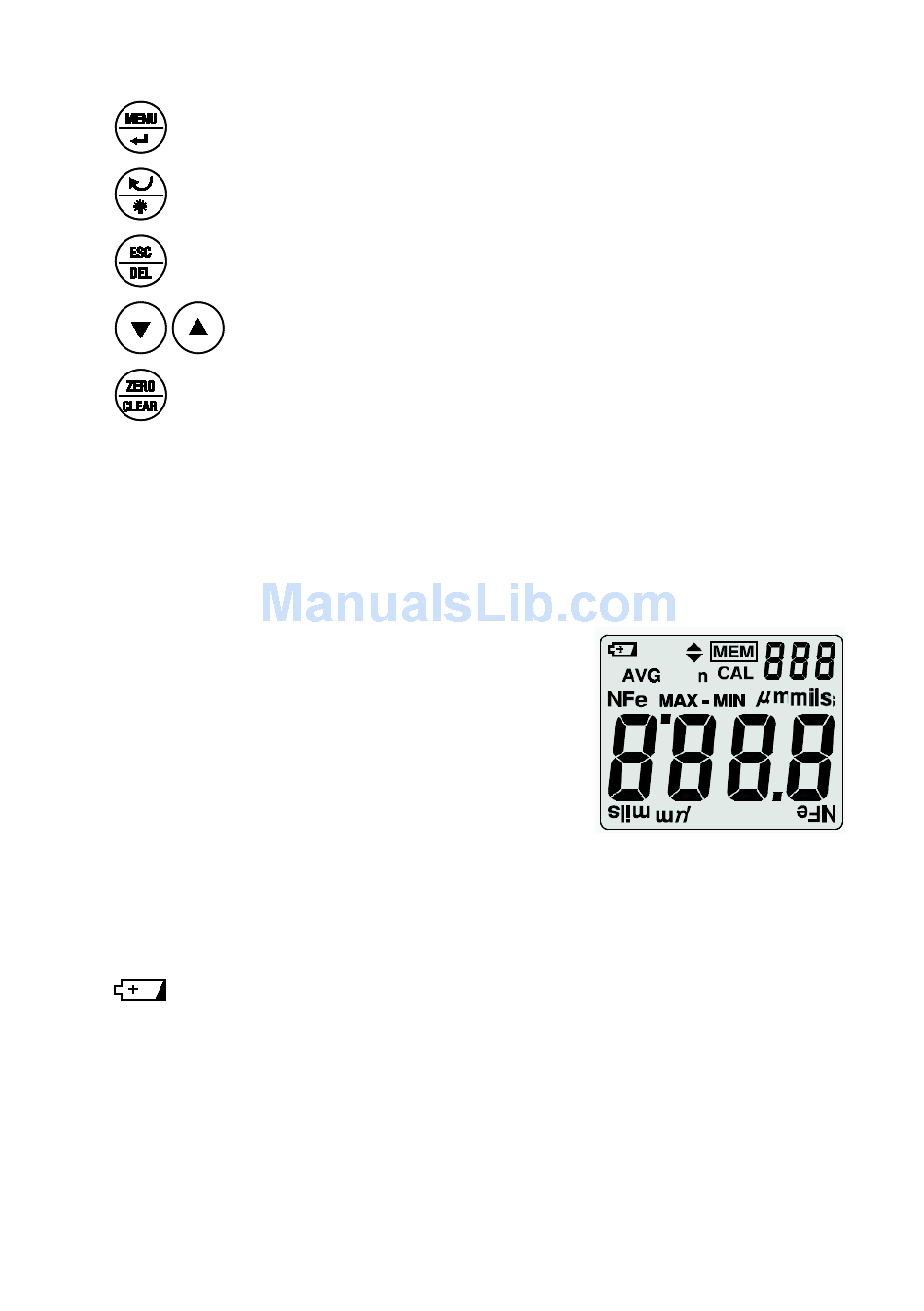

Function Keys

Function Key Notes:
ESC and Arrow keys are disabled in the Measurement mode
Backlight and ZERO buttons are disabled in the 'Options' menu

Display Icon Description

Fe, nFe
AT
▲▼
MEM
CAL
µm
mils
MAX-MIN
MIN, MAX, AVG Minimum, Maximum, or Average reading
n
d Quality Products Online at:
Access the Menu / Enter for confirming an edit
Reverse the display orientation/ press > 2 seconds for Backlight
Revert to previous mode / Delete an entry
Selecting functions, scrolling and setting values
Substrate Zero CAL (short press) / Calibration point clear (press > 2 secs.)
Ferrous and Non-ferrous substrates
Auto metal sensing mode
High-Low Alarm indicators
MIN-MAX-AVG Recording is active
Calibration is active
Micrometer unit of measure
mils (unit of measure) = millimeters * 2.54/100
Maximum minus Minimum reading
Recalled data point storage serial number
Low battery
