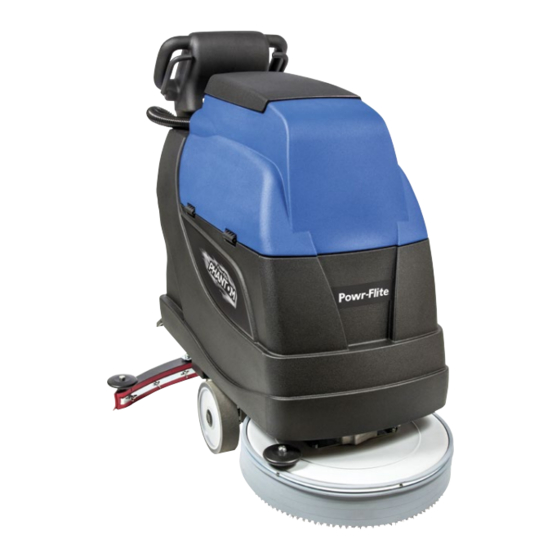

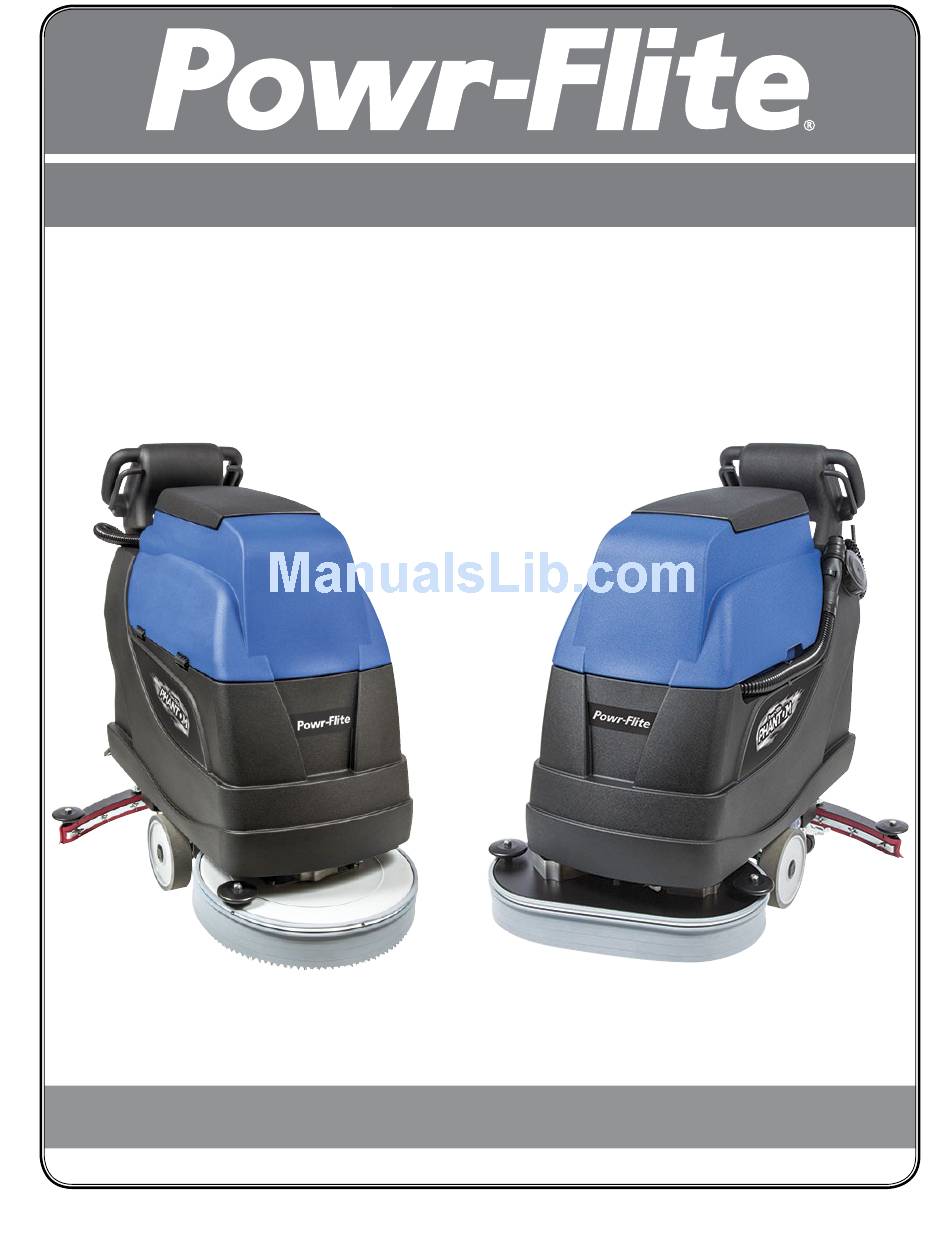

- Page 1 OPERATOR’S MANUAL Phantom Automatic Scrubber Model: PFS20 and PFS24 WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony Corporation, All rights reserved Save These Instructions PFS20/24-MAN 07/2018...
-
Page 2: Technical Specifications
- Reduction motor for brushes with lifetime lubrication. - Vacuum motor for liquids with dangerous parts and electrical contacts out of reach from operator’s hands. - Ergonomic control panel with protected switches. - Squeegee body with LYNATEX blades. TECHNICAL SPECIFICATIONS PFS20 PFS24 Units Productivity sq.ft./hr/m 21,527/2000... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS All operators must read, understand and practice the following safety instructions. They will be repeated occasionally throughout this manual, and additional cautions may be added for specific cases. • CAUTION: Operators must read and understand this • CAUTION: Make sure the charger has turned off manual completely before operating this equipment. - Page 4 PHANTOM AUTOMATIC SCRUBBER This manual refers to a battery powered automatic floor scrubber. Designed to be simple, easy to operate and safe, with maneuverability and automatic variable electronic drive. Routine maintenance has been simplified and reduced to the minimum to keep equipment on the job. The floor cleaner is intended for cleaning and washing level floors in closed spaces using appropriate detergents.
- Page 5 Do not leave the cleaner unattended particularly if children are present. Refrain from smoking, lighting fires or provoking sparks. Do not use flammable liquids or chemicals with this cleaner. Ensure that the instruction manual and warnings are always on hand and are legible. Replace any torn or missing pages.
-
Page 6: Safety Instructions
Splash Guard: To replace the splash guard: PFS20, remove the (5) screws holding the retainer strip onto the brush housing. Install new splash guard and reverse the procedure. PFS24 - Release the latch on the right side of the brush housing. Remove the screw at the opposite end of the retainer strip. - Page 7 Turn the key switch to position ON (I). In this position the machine can already move backward and forward as described below. Next press button (control panel) then button (brush). At this point the water dosage and vacuum will start automatically. If desired, they can be switched off individually with (water) and (vacuum ) buttons.
- Page 8 Battery Level Water Monitor Switch Brush Recovery Switch Tank Full Indicator Vacuum Main Panel Switch Power Control Switch Forward/ Reverse Switch Speed Control CAUTION: This machine is designed to work in closed industrial environments on level floors or on inclines no steeper than 2%. Do not use flammable chemicals and/or explosives with this machine. Do not use or pick up flammable chemicals or liquids with this machine.
- Page 9 WARNING: This operation must be performed using protective gloves to protect yourself from contact with dangerous solutions. Squeegee Assembly: Inspect and clean the squeegee assembly weekly and make sure to restore it to its working condition. If the drying action is not perfect after cleaning the squeegee assembly, remove and replace any worn rubber blades.
- Page 10 Recovery tank: weekly clean it as follows: switch off the machine, switch off the voltage, open the dirty water tank. Remove the M99 (page 9) suction motor cover. Then remove the suction motor: the filter and the net will be cleaned underneath. Drain the dirty water from the M2 (page 7) pipe. Remove the dirt that has settled in the tank.
- Page 11 Powr-Flite Warranty Statement All Powr-Flite equipment has been tested and inspected at the factory and is guaranteed to be free from defects in material and workmanship for the duration described below. For full details, contact your authorized Powr-Flite Distributor, Service Center, or the Powr-Flite Technical Service Department.
