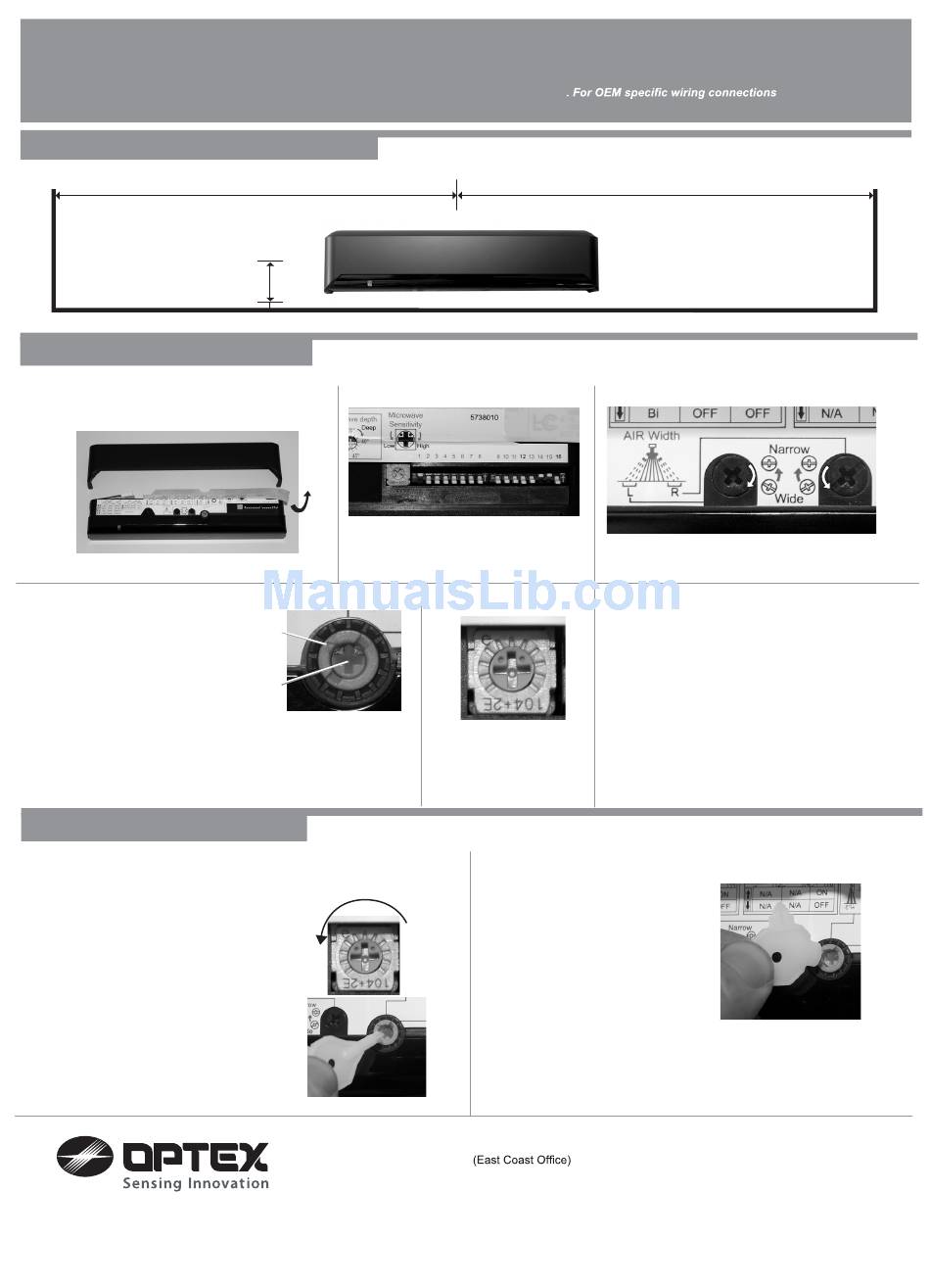

OPTEX X-Zone T Quick Setup Guide
For detailed information, please refer to the installation manual supplied with each sensor
and notes please refer to the X-Zone T Connection Matrix.

Sensor Mounting Location

Header
Use supplied Mounting Template.
Place template so that it is in the
center of the clear door opening
and so that the bottom of the tem-
plate is between 1/4" and 2" from
the bottom edge of the header.

Sensor Settings

Remove the cover and unfold the label.
3. AIR (Presence) and Microwave Angle Adjustments 4. Microwave Sensitivity
AIR Angle Adjust
Set Red Ring at –2 degrees
(Arrow at Approx. 10 o' clock)
Microwave Angle Adjust
Set center Philips adjuster to 38 degrees
(Blue Dots are at 2 o' clock)
WARNING: To comply with ANSI A156.10, if the reveal on the
door (mounting surface of sensor to face of sliding panel) is great-
er than 2½", turn the AIR adjuster (Red Ring) CCW (Shallow) until
the door recycles on the closing cycle. Then refer to step 2 under
troubleshooting to properly adjust the AIR angle.

Troubleshooting

Door reopens on closing cycle:
1. Operation LED turns solid Orange then
door reopens (Microwave Motion Detecting
Door)
a. Reduce sensitivity: turn sensitivity po-
tentiometer CCW.
b. Adjust Microwave angle towards deep
(Clockwise) slightly.
Align with center of clear door opening
2"
1/4"
Ensure sensors are properly set to factory defaults as shown and described below.
1. Dipswitch settings
NOTE: If uni-directional motion detection
is desired, move dipswitches 9 UP.
Refer to instruction manual for details on all
dipswitch settings.
Set to 10 o'clock (two
dots at top)
18730 Wilmington Ave, Unit 100
Rancho Dominguez, CA 90220
Ph 310 214-8644
Fax 310 898-1098
Toll free 800 877-6656
www.ot-inc.com
Drill (2) 1/8" holes and (1) 5/16" hole as indi-
cated on the template. Remove template from
header. Remove the cover from the sensor.
Fasten the sensor securely to the header
using the supplied screws (do not over-torque
screws or sensor body may distort).
2. AIR Area Width
Set shutters to Wide Position
5. Walk Test
Power up sensors and wait 10 seconds
to test presence area. Perform walk test
procedure to verify substantial compliance
with ANSI A156.10 section 8.
2. Operation LED turns Flashing Red, then door reopens
(Row 2 Presence Detecting Door)
a. Move AIR angle adjustment
(Red Ring) slightly Clockwise until
ghosting stops.
NOTE: When changing the AIR angle, sensor may go into detection
and hold door open. In this case, reset sensor by moving any dip-
switch, then move it back.
