Summary of Contents for FAAC EstateSwing

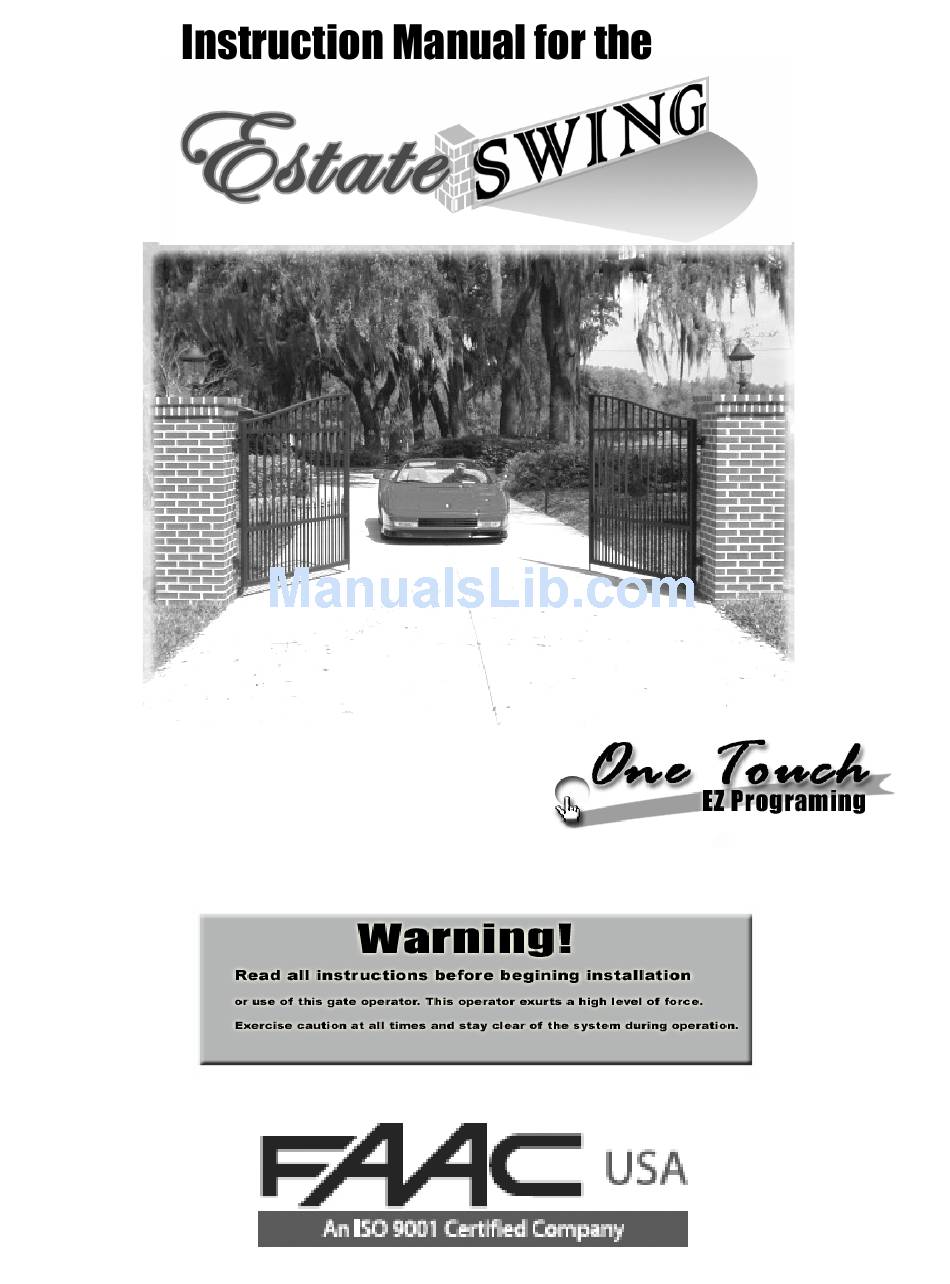

  • Page 1 Featuring...
  • Page 2 For non-EU countries, to obtain an adequate level of safety, the standards mentioned above must be observed, in addition to national legal regulations. FAAC is not responsible for failure to observe Good Technique in the construction of the closing elements to be motorized, of for any deformation that may occur during use.
  • Page 3 The FAAC Estate Swing automated system was designed and built for controlling vehicle access. Do not use for any other purpose. The EstateSwing automated system automates residential swing-leaf gates with leaves of up to 12’...

  • Page 4: Push-To-Open Installation

    Photocell & Safety Device Guide 29,30 • Push-to-Open Installation 31-35 • Installing the FAAC Receiver and Transmitter • Accessory Overview 37-42 • Marks pages with opener or user warnings. Although we have marked these very important warnings please read the entire manual. Every step is important to correct installation and usage.
  • Page 5 MODEL Estate Swing Power Supply 115V AC/ 12V DC Rated Absorbed Power (W) Max Static Force (N) 1700 Load-free linear speed (in./sec.) 1.25 Rod effective stroke (in.) Use frequency (cycles/hour) Consecutive cycles on charged battery Max. 15 Battery recharge time 10 min.
  • Page 6 1,2 Estate Swing Operator 3 Photocells (not included) 4 Master control board 5 Slave control board 6 Push button opening device (not included) 7 Receiver extension (not included) 8 12Vdc flashing lamp (not included) 9 Positive stop The system display to the right is a 10 AC transformer recommended standard system.
  • Page 7 (If Applicable) A. Estate swing arm A. Estate slave swing arm B. Gate Mounting bracket B. Gate Mounting bracket C. Post Mounting bracket C. Post Mounting bracket D. Manual access key D. Manual access key E. Transformer E. Transformer F. Control Board w/ Battery F.
  • Page 8 • Other items that may be needed prior to commencing installation. Start and stop post, bracket or door stop. Although the FAAC Estate swing fea- • tures soft start/stop it is still necessary to have a closed stop post for 3 reasons:...
  • Page 9 " $ $ & Before beginning any electrical stages of installation we highly recommend charg- ing the battery on the control board for 12 hours. This can be done anywhere there is an outlet available. 1. Plug the battery into the control board (fig 1). For charging purposes it is not necessary to hook the receiver to the battery or control board.
  • Page 10 " ( ) * ( ) The 5” x 5” is a very important requirement to be aware of during installation of the post mounting bracket. The 5” x 5” setback allows the operator arm to achieve appropriate and equal leverage during opening and closing cycles. To determine your 5”...
  • Page 11 Examples of stops 1. Set up closed stop points for your gate. The closed stop points can be a plate on the end of the gate that comes in contact with an adjacent post or an industrial door stop. (Many gates need an extension piece added to make contact with the doorstop.
  • Page 12 4. Insert the bracket bushing into the gate mounting bracket. 5 Counter Clockwise turns from end. 5. Insert the manual re- lease key and turn it 5 counter clockwise Bracket Release Position turns. This will position the front fitting on the operator arm in the correct position to fit into the bracket bushing.
  • Page 13 8. Insert the threaded rear fitting into the already clamped post mounting bracket. 9. Position the gate mounting bracket on a cross member of the gate suitable for supporting the arm and bracket with the gate in the FULL CLOSED POSITION pressed firmly against the closed stop.
  • Page 14 12. Remove the operator arm from the brackets. Leaving the brack- ets clamped in place mark your holes. If you are bolting your brackets in place, remove the mounting brackets and drill the marked holes using a power drill with a 5/16” drill bit for the post and 1/4”...
  • Page 15 & ATTENTION: Study the control board and read this section thoroughly before attempting to operate your gate opener. Warnings: Before attempting any job on the control board (connections, maintenance), turn • off electrical power and unplug the support battery. Install, upstream of the system, a differential thermal breaker with adequate •...
  • Page 16 1. The Estate Swing (Master Unit if Dual Operator) comes with 1 AC transformer. The AC transformer may come with approximately 8 feet of wire attached. This can be extended up to 1000’ with 16 gauge or larger direct burial low voltage wire.
  • Page 17 J4 - This terminal is for connecting the support battery on both the master and slave side. NOTE: Al- though batteries are provided with the system, they do not come fully charged. J5 - 5 - Pin set for FAAC receiver plug in (instructions for receiver installation on Page 29)
  • Page 18 & For your opener to function properly a few connections must be made prior to the learning process. Accessories should NOT be installed until after the learning process is completed. 1. Using the provided orange jumper wire, connect the normally closed safety terminals (terminals 3, 4, and 5) to one of the negative terminals (terminals 12, 13, 14, or 15).
  • Page 19 NOTE: Before beginning the one touch learning procedure be sure to have full open and full closed stop points* set up. These will let your gate know where to stop during the learning process. Make sure that the leaf or leaves are in the full closed position. Enter the programming mode by pressing P1 6 times until all 5 LEDs (A,B,C,D,E) are lit.
  • Page 20 If the learning process was completed using the simple one touch process this process can be by- passed. This procedure is used to define the deceleration and stop points of the operator or operators. The procedure differs depending whether it is single leaf or double leaf. Make sure the leaves are closed.
  • Page 21 With open stop, let the gate make contact, don’t press P2 Let the leaf make contact with the full open stop point. The opener will then stop and reverse direc- tions. OR if not using open stops Without open stop, press P2 2 alt.) Press P2 to stop the openers opening mo- tion and reverse the motion of the gate.
  • Page 22 Procedure for dual leaf gates Press for 3 While the 5 LEDs are lit steadily, hold down P2 for about 3 sec- Seconds onds. The operator will start the maneuver process. Using P2, Briefly press the button once for each of the following motion transitions: Press P2 to teach leaf 1 opening deceleration starting point.
  • Page 23 Press P2 to teach leaf 2 opening deceleration starting point. With open stops, let the gate Without open stops, press P2 make contact, don’t press P2 Let the leaf make contact with the full open stop point. The opener will then stop and reverse directions.
  • Page 24 Press P2 to teach leaf 2 closing deceleration starting point. Let the leaf 2 make contact with the full closed stop point. Leaf 1 will begin closing. Press P2 to teach leaf 1 closing deceleration starting point. Let the leaf 1 make contact with the full closed stop point. Press to exit the learning mode.
  • Page 25 Using the following procedures you can change factory settings such as auto close, speed, force, delays and more. Begin the programming process by pressing P1. Pressing P1 selects A,B,C,D or E. A, B, C, D and E correspond with the variables in the chart on the following page.
  • Page 26 % # . Variable LED Definitions Function Function Function Logic — Logic flow chart found on page 18,19 1= A (Automatic - automatically closes the gate depending on the set pause time. It is the most common setting) 2= S (Safety - designed for higher control and accelerated levels of safety, also automatically closes the gate) 3= AP (Stepped Automatic - is very similar to automatic (A) but has a higher amount of safety.
  • Page 27 Logic A - Logic A (automatic) is the most common setting. It automatically closes the gate de- pending on the set pause time. This logic must be used in conjunction with the accessories: Free Exit Sensor and Gate Timer. Gate Status Result of Terminal Result of Terminal Result of Terminal...
  • Page 28 Logic AP - Logic AP (stepped automatic) is very similar to automatic (A) but has a higher amount of safety. It has an increased amount of motion stop points. Gate Status Result of Terminal Result of Terminal Result of Terminal Result of Terminal 1 activation 2 activation...
  • Page 29 READ prior to attempting to operate the arm. Normally Closed connections must be made for proper gate opener function. The full accessory board is only found on the master control board. The slave control board only contain one Normally Open terminal and one common terminal.
  • Page 30 J1—Terminal Board for Master Card (cont.) Terminals (cont.) 5 - “Closing Safety Device” This is a normally closed terminal where by any device (i.e. photocells, sensitive edge, magnetic loops) which, if there is an obstacle in the area they protect during closing, reverses gate direction to opening. If the closing safety devices are tripped when the gate is open, they prevent the leaf movement.
  • Page 31 Diagnostics using the P light on your Master Control Board. The P light has a diagnostic function. There are 3 statuses. 1. Steady light indicating main power is ON and the battery is charged 2. Flashing slowly (lights every second) indicates no main power but the battery is charged.
  • Page 32 3, 4, and 5 are not connected to negative terminals the gate opener will not function. Secondary safety devices are always recommended by Gate Crafters and FAAC, if you choose to only use the inher- ent obstruction sensing featured in the Estate Swing control board you must con- nect terminals 3, 4, 5 to a negative terminal (12, 13, 14, or 15).
  • Page 33 Before connecting the photocells (or other devices) we advise you to select the type of operation according to the movement zone to be protected. Opening Safety Devices: They operate only during the gate opening movement and, therefore, they are suitable for protecting the zone between the opening leaves and fixed obstacles (walls, etc.) against...
  • Page 35 Push-to-Open operation is a gate opener design with the arm on the inside of the gate and the arm pushes the gate open away from the property, rather than pull- ing it in towards the property as in standard operation. Push-to-Open is useful for properties with inclining driveways, a lack of space for opener arm placement or opening (i.e.
  • Page 36 3. Check your operator arm. The pin should be stopped on the front part of the operator arm. If the pin is not, turn the manual release key in the front lock hole clockwise until it reaches the front stop position. Extend the operator pin in this manner ONLY.
  • Page 37 3 Turns Counter Clockwise - This is the correct Open Gate mounting position. 7. NOTE: Returning to the common point of ref- erence during the last step is important for ac- curacy in this step. This From the front stop position turn the manual release key counter clockwise 3 turns. will be the mounting position.
  • Page 38 11. In order to remove your operator arm from the gate mount- ing bracket for marking and drilling, the manual release key will need to be turned counter clockwise for 2 turns. IMPORTANT - During this procedure let the gate move with the turning of the manual re- lease key.
  • Page 39 14. After properly affixing the mounting brackets insert the arm fittings into the mounting brackets. Using the provided nut and washer on the bottom of the threaded rear fitting attach the arm to the post mounting bracket. Tighten until the is no wobbling during motion but motion is not restricted.
  • Page 40 2) Locate the white connector on the receiver. 3) Push the white connector from the receiver on the 5 pins on your FAAC board with the dip switches of the receiver board facing the center of the Estate Swing board.
  • Page 41 The Push Button is a simple normally open connection non- lighted push button. 1. Run 18 gauge low voltage wire from the Estate Swing Terminal 1 to either of the terminals on the push button. 2. Run 18 gauge wire from the second terminal on the push button to one of the negative terminals on the Estate Swing control board.

  • Page 42: Wireless Installation

    Wireless Installation - MUST BE USED WITH OPTIONAL GATECRAFTERS RECEIVER Programming the keypad dipswitches 1. Open the Stainless Steel Keypad by removing the 4 screws on the front panel with a Philips head screwdriver. 2. Open the transmitter set in previously steps (page 24) to match the first eight dip switches (+,0,-) with the keypad dipswitches.
  • Page 43 Programming the Master Code 1. Enter the “Master Code” – Default is 1234. 2. Press the programming button. 3. Enter “1” to enter code changing mode. 4. Enter “00” to select the Master Code as the code to be changed. 5.
  • Page 44 1. Install the receiver after the operator is programmed and the limits are set. 2. Remove the cover of the transmitter. Inside there are 9 dipswitches set in factory set- tings. The dip switches should be changed for security purposes. Move the dip switches to either +,0, or –.
  • Page 45 Disconnect the Estate Swing before any in- stallation of the gate lock. Open the gate by activating a transmitter, keypad or push but- ton THEN let the gate opener swing open for approximately 3 feet. Activate your opening device a second time to halt the movement of the gate.
  • Page 46 The CS 202 sensor can be buried in the ground about 6 inches deep parallel to the paved driveway. It also can be placed 2” deep in asphalt or concrete under the path of the vehicle. In all cases, the probe has to stay totally motionless and be free of any vi- bration in order to prevent false detects.
