Summary of Contents for FAAC Estate Swing e-sU 2200 series

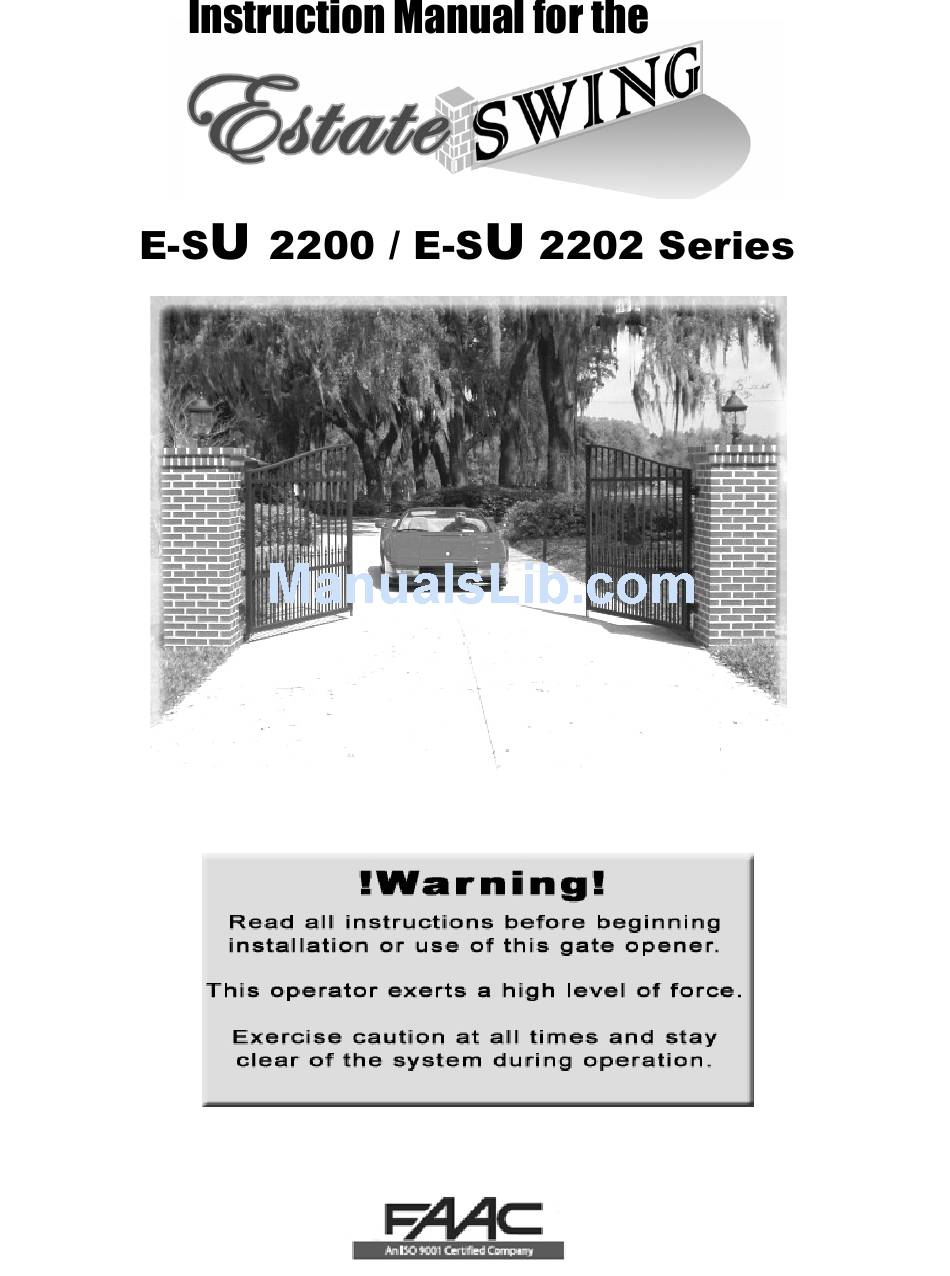

- Page 1 Manufactured by...
- Page 2 For non-EU countries, to obtain an adequate level of safety, the standards mentioned above must be observed, in addition to national legal regulations. FAAC is not responsible for failure to observe Good Technique in the construction of the closing elements to be motorized, of for any deformation that may occur during use.
- Page 3 The FAAC Estate Swing automated system was designed and built for controlling vehicle access. Do not use for any other purpose. The external automation with geared motor automates residential swing-leaf gates with leaves of up to 12’...
-
Page 4: Control Board Overview
The table of contents are listed to assist you locating a desired section. We do how- ever strongly suggest studying every page of the instruction manual before attempt- ing installation. PAGE(S): Specifications of the Estate Swing and Components 1 • System Overview &... - Page 5 MODEL Estate Swing Power Supply 115V AC/ 24V DC Rated Absorbed Power (W) Current drawn (A) Rpm Electric Motor 1500 Cycles per hour Continuous Duty / Aprox. 50 Operating Ambient Temp -4 to 131 F Protection class IP67 Gate leaf max length (ft.) Up to 12 Gate leaf max weight (lbs.) Up to 1100...
- Page 6 1,2 Estate Swing Operator 3 Photocells (not included) 4 Control board 5 N/A 6 Push button opening device (not included) 7 Receiver extension (not included) 8 12Vdc flashing lamp (not included) 9 Positive stop The system display to the below is a 10 DC transformer recommended standard system.
- Page 7 1) Pull lock cover back. 2) Insert and turn provided key. Turn the key in the direction of the post as far as it will go. 3) Pull the lever out. 4) The gate should now be free of the operator lever. To exit manual mode, reverse the above steps.
- Page 8 % & 1. Position your gate for installation. There are three different scenarios for gate po- sitioning: If you have an existing gate with fixed • hinges, remove the gate and the bottom hinge. If the gate cannot be removed, place blocks under it’s bottom edge to support it.
- Page 9 4. After the foundation box is mounted according to the previous page, it is time to run PVC for power and drainage. Lay down a PVC tube with a diameter of 1.38”. This tube will be used for power and will lead to the control box.
- Page 10 Important: Wait until the cement from the previous step is completely set before beginning this stage of installation. 1. Assemble the release levers on the support bracket and fit the bracket on the pivot in the foundation box, also in- serting the ball bearing in between the bracket and pivot.
- Page 11 1. Open the gate leaf. 2. Place the operator on the fastening screws on the foundation box and fix it by using the sup- plied nuts and washers. 3. The position of the motor must be as shown below. The pinion must be on the opposite side of the leaves opening direction.
- Page 12 1. The Estate Swing E-SC 1600 comes with 1) 24V transformer. The transformer sup- plied has 2 screw terminals to connect to. You may locate the transformer up to 1000’ away from the control board using wire ratings as specified below. 0-99 Feet - Use 16 Gauge, 2 Conductor Stranded Direct Burial Wire •...
- Page 13 Caution! Do not run 110V AC power direct to the board. This will cause permanent damage to both boards and void your warrantee. Caution! - Upper left hand corner of board, used for power and back up power. VAC - terminals. The input terminals for the supplied 24V transformer. Polarity is not an is- •...
- Page 14 CN2 - Located on the lower left side of the board, these terminals are outputs for the op- erator arm(s), gate locks (optional), and lamps (optional). APM1, CHM1 - terminals. For dual operations these terminals are for the arm that must •...
- Page 15 ( ) *( # Control Board LED Lights - The control board LED lights are located above their respec- tive terminals that they represent. (With exception of ALIM, power supply light, which is located below the power terminals in the upper left corner.) The LED lights are a quick way of verifying necessary connections are made.
-
Page 16: Entering Programming Mode
Complete this step prior to programming the gate movements. This will dictate how your gate will react during programming. If you do not use a backup battery and lose power or if you must disconnect all power during programming to reset your control board, you MUST start at this step before programming movements or operating your gate, all parameters return to default. - Page 17 Minimum Force This parameter adjusts the sensitivity of the Medium-low Force electronic clutch system. The electronic clutch FORCE system controls the anti-crushing auto-reverse Medium-high Force feature when a gate in motion makes contact with an obstacle. High Force This parameter is for Dual gate opener sys- 1.5 Second Offset tems ONLY.
- Page 18 This parameter determines when the gate will 20% of total arch SOFT begin to slow down near the end of opening START/ and closing cycle. 10% of total arch STOP SOFT This parameter determines how fast the gate SPEED will move during the soft start/stop. High LIMIT This unit must be switched to L0.
- Page 19 In this stage, your control board will memorize where your limits are (identified by limit switches, positive stops or both) in both opening and closing phases. Also if the auto-close feature is activated it will learn the user specified pause time. 1.
- Page 20 5. When the closing stop point or limit switch is reached, the motor pauses for approximately 2 seconds, and then restarts with a total opening maneuver to the opening stop point or limit switch. 6. When the full open stop or limit switch is reached the gate(s) will stop. 7.
- Page 21 Before connecting the photocells (or other devices) we advise you to select the type of operation according to the movement zone to be protected. Opening Safety Devices: They operate only during the gate opening movement and, therefore, they are suitable for protecting the zone between the opening leaves and fixed obstacles (walls, etc.) against...
- Page 22 2) Locate the white connector on the receiver. 3) Push the white connector from the receiver on the 5 pins on your FAAC board with the dip switches of the receiver board facing AWAY from the center of the Estate Swing board.
- Page 23 If the gate opener will not move. Be sure you have gone through programming. Without programming no power is ever sent to the operator arms. Check wiring connections. Check to be sure jumpers are in place between STOP, FSW OP, FSW CL to COM on terminal block CN4.
- Page 24 If fuse the F2 fuse blows or continues to blow. Check all wiring to both the backup batteries and to all accessories run off of the 24+,- terminals on terminal block CN1. Check for the following: · The batteries are run in series not parallel. If they are run in parallel the batteries will be- come overcharged and be destroyed, which will then create a short and continually blow the F2 fuse.
- Page 25 Accessory manuals for most make and model accessories can be found on the web at: www.EstateSwing.com/accessories The accessory manuals you have or find at the above address may be written to coincide with that manufacturers model of gate opener. To determine correct terminals on your Estate Swing operator, use the accessory terminal section of your Estate Swing manual.
