Instruction Manual for the
E-SL 1200 / E-S 1202 Series
Featuring
Manufactured by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Estate Slide E-SL 1200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for FAAC Estate Slide E-SL 1200 Series

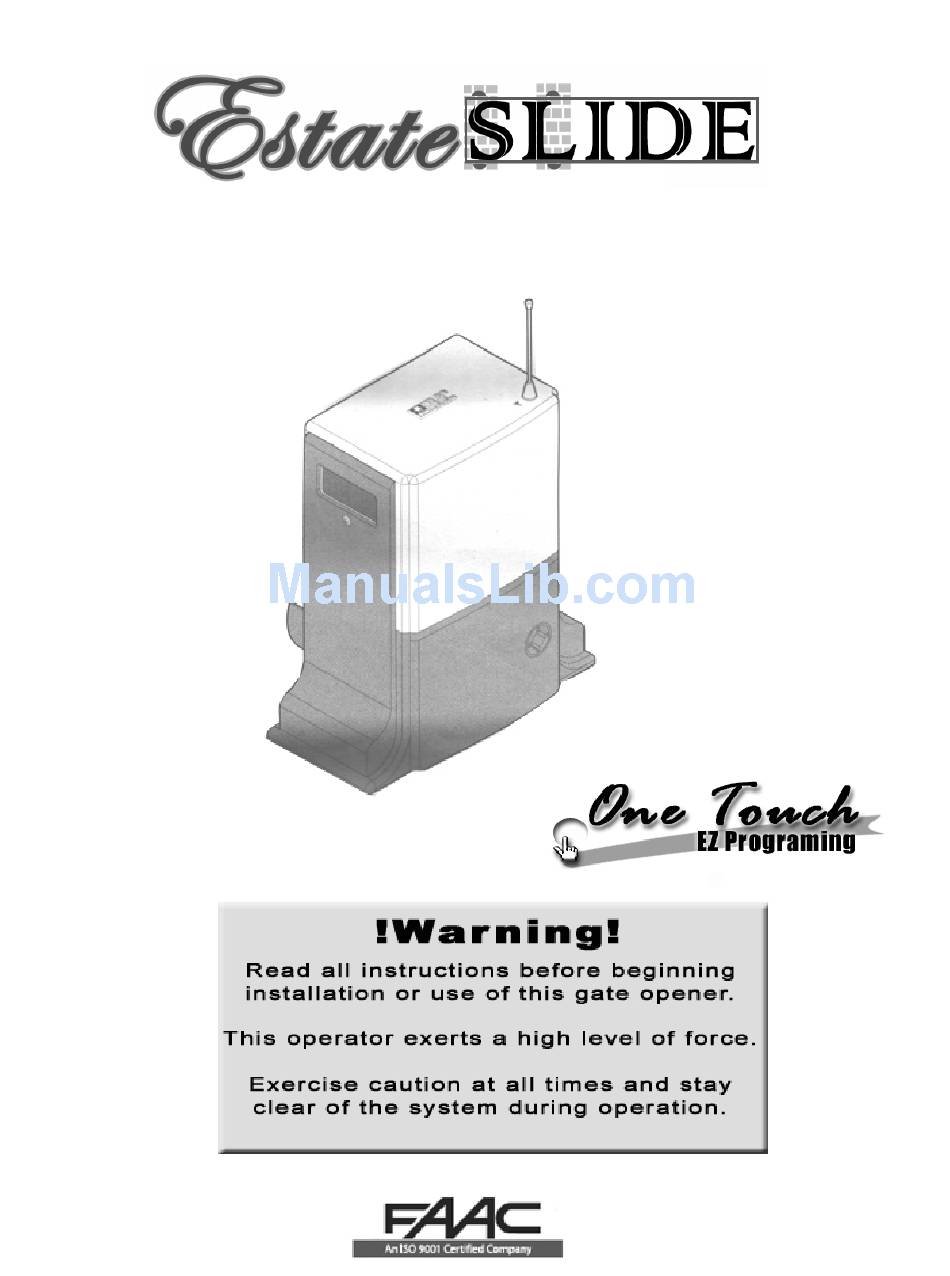

  • Page 1 Instruction Manual for the E-SL 1200 / E-S 1202 Series Featuring Manufactured by...
  • Page 2 For non-EU countries, to obtain an adequate level of safety, the standards mentioned above must be observed, in addition to national legal regulations. FAAC is not responsible for failure to observe Good Technique in the construction of the closing elements to be motorized, of for any deformation that may occur during use.
  • Page 3 The FAAC Estate Slide automated system was designed and built for controlling vehicle access. Do not use for any other purpose. The EstateSlide automated system automates residential Slide-leaf gates with leaves of up to 16’...
  • Page 4: Table Of Contents

    Simple Diagnostics 15.1 • Photocell & Safety Device Guide 16.1-.2 • Installing the FAAC Receiver and Transmitter 17.1 • Warranty Notice • Marks pages with opener or usage warnings. Although we have marked these as very important warnings, please read the entire manual. Every step is important to the correct installation of your gate opener.
  • Page 5 MODEL Estate Swing 115V AC/ 12V DC Power Supply Rated Absorbed Power (W) Max Static Force (N) Load-free linear speed (in./sec.) Use frequency (cycles/hour) Consecutive cycles on charged battery Max. 15 Battery recharge time 10 min. for each full cycle Operating ambient temperature -4 to 131 Deg F 4.85...
  • Page 6: Preliminary Checks

    Standard System 1 Estate Swing Operator 2 Photocells (not included) Overview and Safety 3 Key operated pushbutton 4 Flashing lamp Zones 5 Radio receiver (optional) Notes: 1) Do not extend operator connection cables The system display to the right is a 2) When laying electrical cables, use recommended standard system.
  • Page 7 Power Drill Phillips Head Screwdriver • • Crescent Wrench Tape Measure • • 3/8” Drill Bit Level • • Hacksaw Wire Strippers • • Flat Head Screwdriver C-clamps • • Other items that may be needed prior to commencing installation. Additional low voltage wire may be required to run power to your operator.
  • Page 8: Important: Charging Battery Prior To Use

    IMPORTANT: Charging Battery Prior to Use Before beginning any electrical stages of installation we highly recommend charg- ing the battery on the control board for 12 hours. This can be done anywhere there is an outlet available. 1. Plug the battery into the control board (fig 1). For charging purposes it is not necessary to hook the receiver to the battery or control board.
  • Page 9: Manual Operation

    Manual Operation 1. Open the protective door by turning the slotted lock with a coin of large flat head screw drive. 2. Take the supplied key located inside the door, fit it in the release system and turn it clockwise until it reaches the mechanical stop. 3.
  • Page 10: Installation Of Mounting Hardware

    Installation of Mounting Hardware Set the Foundation Plate 1. Fit the 4 supplied caged nuts, as shown below, in the 4 square holes of the plate. 2. The foundation plate must be located as shown in example A (right closing) or example B (left closing) to ensure the rack and pinion mesh correctly.
  • Page 11: Operator Installation

    4. Lay the electric cables for connection to the accessories and power supply. To facilitate mak- ing connections, allow the cables to project by about 8 inches from the hole of the foundation plate. Operator Installation 1. Position the operator on the plate using the supplied screws as shown below. 3.
  • Page 12 Rack Installation 1. Manually take the leaf to its close position. 2. Lay the first piece of rack at the appropriate level and mark the hole position on the gate. Make a hole and use nuts, bolts and washers to make a connection to the gate (not provided). The holes in the rack are made oblong for adjustment after the holes are drilled.
  • Page 13 Travel Limit Magnet Installation The ESTATE SLIDE operator is supplied with a sensor, by detecting the transit of two magnets secured to the top of the rack, commands gate movement to stop. 1. Position the magnets on the rack as shown in below. 2.
  • Page 14: Control Board Layout

    Control Board Layouts ATTENTION: Study the control board and read this section thoroughly before attempting to operate your gate opener. Warnings: Before attempting any job on the control board (connections, maintenance), turn • off electrical power and unplug the support battery. Install a surge protector upstream of your opener, the opener is not power surge •...
  • Page 15: Power

    Power 1. The Estate Slide comes with 1) AC transformer. If the AC transformer supplied has 4 screw terminals, use the center 2 terminals to attach your low voltage wire (polarity is not relevant). You may locate the transformer up to 1000’ away from the control board with 16 gauge or larger direct burial low voltage wire.
  • Page 16: Control Board Pre-Learning Preparations

    Control Board Pre-Learning Preparations For your opener to function properly a few connections must be made prior to the learning process. Accessories should NOT be installed until after the learning process is completed. 1. Using the provided orange jumper wire, connect the normally closed safety terminals (terminals 3, 4, and 5) to one of the negative terminals (terminals 12, 13, 14, or 15).
  • Page 17 NOTE: Before beginning the one touch learning procedure be sure to have the limit magnets set up. These will let your gate know where to stop during the learning process. Enter Learning Mode Enter the programming mode by pressing P1 6 times until all 5 LEDs (A,B,C,D,E) are lit.
  • Page 18: Programming Gate Movement Variables

    Programming Gate Movement Variables Using the following procedures you can change factory settings such as auto close, speed, force, delays and more. Begin the programming process by pressing P1. Pressing P1 selects A,B,C,D or E. A, B, C, D and E corre- spond with the variables in the chart on the following page.
  • Page 19: Gate Movement Variables Led Chart

    Gate Movement Variables LED Chart Variable LED Definitions Function Function Function Logic — Logic flow chart found on page 18,19 1= A (Automatic - automatically closes the gate depending on the set pause time. It is the most common setting) 2= S (Safety - designed for higher control and accelerated levels of safety, also automatically closes the gate) 3= AP (Stepped Automatic - is very similar to automatic (A) but...
  • Page 20: Logic Summaries And Flow Charts

    Logic Summaries and Flow Charts Logic A - Logic A (automatic) is the most common setting. It automatically closes the gate de- pending on the set pause time. This logic must be used in conjunction with the accessories: Free Exit Sensor and Gate Timer. Gate Status Result of Terminal Result of Terminal...
  • Page 21 Logic Summaries and Flow Charts (cont) Logic AP - Logic AP (stepped automatic) is very similar to automatic (A) but has a higher amount of safety. It has an increased amount of motion stop points. Gate Status Result of Terminal Result of Terminal Result of Terminal Result of Terminal...
  • Page 22: Accessory Terminals

    Accessory Terminals READ prior to attempting to operate the arm. Normally Closed connections must be made for proper gate opener function. The full accessory board is only found on the master control board. The slave control board only contain one Normally Open J1—Terminal Board for Master Card Terminals 1 - “Open/Close Function”...
  • Page 23 J1—Terminal Board for Master Card (cont.) Terminals (cont.) 4 - “Opening Safety Device” This is a normally closed terminal where by any device (i.e. photocells, sensitive edge, magnetic loops) which, if there is an obstacle in the area they protect during opening, reverses gate direction to closing. If the opening safety devices are tripped when the gate is closed, they prevent the leaf movement.
  • Page 24: Simple Diagnostics

    Simple Diagnostics Diagnostics using the Power light on your Master Control Board. The P light has a diagnostic func- tion. There are 4 statuses. 1. Steady light indicating main power is ON and the battery is charged 2. Flashing slowly (lights every second) indicates no main power but the battery is charged. 3.
  • Page 25: Photocell & Safety Device Guide

    Photocell & Safety Device Guide Before connecting the photocells (or other devices) we advise you to select the type of operation according to the movement zone to be protected. Opening Safety Devices: They operate only during the gate opening movement and, therefore, they are suitable for protecting the zone between the opening leaves and fixed obstacles (walls, etc.) against the risk of impact and crushing.
  • Page 26 16.2...
  • Page 27 Installing and Setting FAAC Transmitters and Receivers Installing the Receiver 1) Locate the 5 Silver Pins on your MASTER Estate Swing board, located above the bat- tery; with power and battery 2) Locate the white connector on the receiver. 3) Push the white connector from...
  • Page 28 If you call in for technical support or warranty support: before any control board or motor will be permitted to be sent in for testing or warranty you will be required to e-mail digital photos to the technician. This is done in your best interest to save unnecessary shipping expenses and time lost. Many times we can come up with solutions to issues by seeing pictures that relay information that is impossible to relay through a phone conversation.
