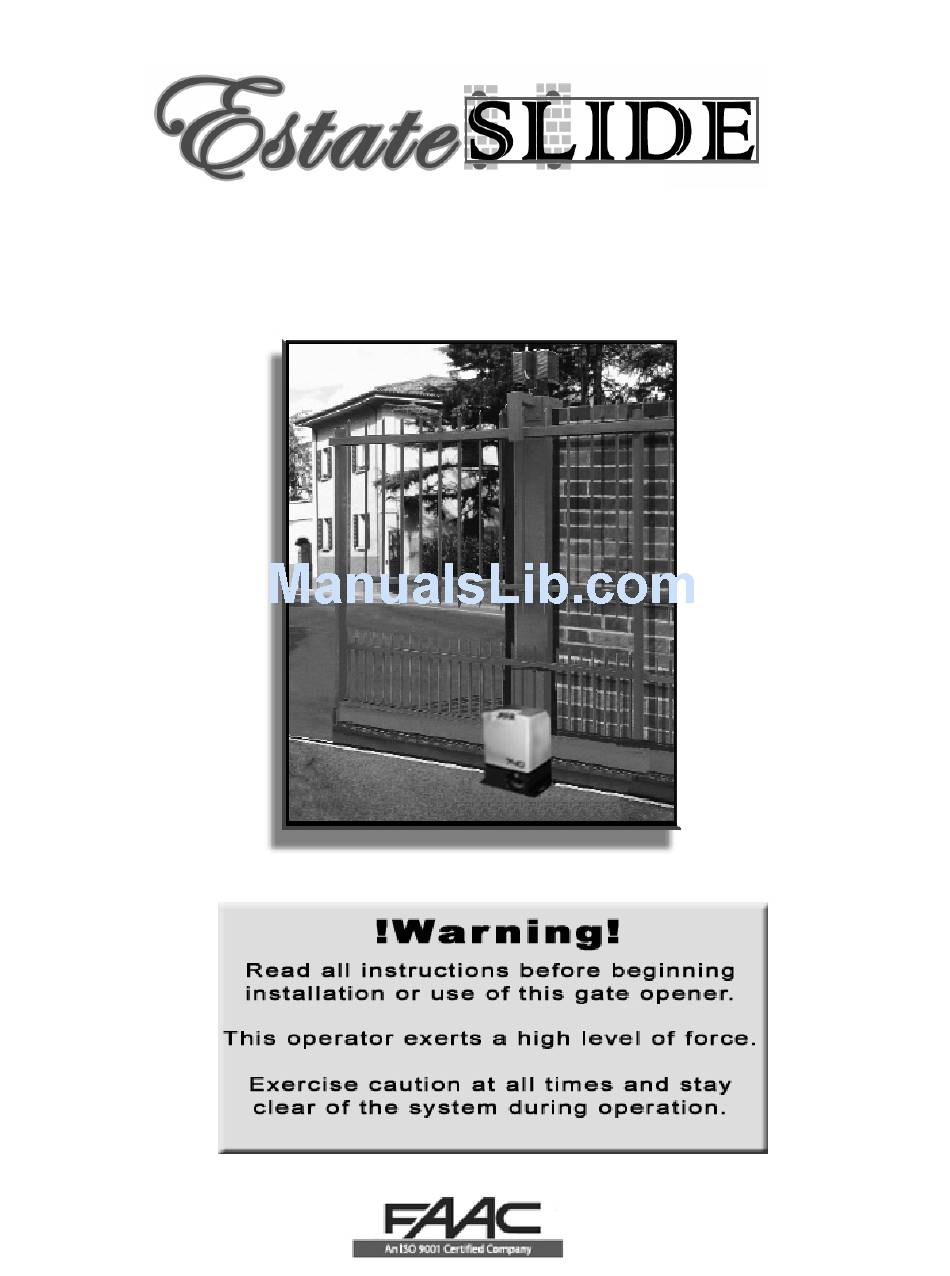

  • Page 1 Instruction Manual for the E-SL 1800 Series Manufactured by...
  • Page 2 For non-EU countries, to obtain an adequate level of safety, the standards mentioned above must be observed, in addition to national legal regulations. FAAC is not responsible for failure to observe Good Technique in the construction of the closing elements to be motorized, of for any deformation that may occur during use.
  • Page 3 The FAAC Estate Slide automated system was designed and built for controlling vehicle access. Do not use for any other purpose. The EstateSlide automated system automates residential Slide-leaf gates with leaves of up to 25’...
  • Page 4 The table of contents are listed to assist you locating a desired section. We do however strongly suggest studying every page of the instruction manual before attempting installation. PAGE(S): Specifications of the Estate Slide and Components • System Overview & Preliminary Checks •...
  • Page 5 MODEL Estate Swing Power Supply 115V AC/ 24V DC Absorbed Power (W) Absorbed Current (W) Accessory Max Load 500 mA 13.5 Torque (Nm) Gate speed 3/4’ per second -4 to 131 Deg F Operating ambient temperature Operator weight (lbs) Protection class...

  • Page 6: Preliminary Checks

    Standard System 1 Estate Swing Operator 2 Photocells (not included) Overview and Safety 3 Key operated pushbutton 4 Flashing lamp Zones 5 Radio receiver (optional) Notes: 1) Do not extend operator connection cables The system display to the right is a 2) When laying electrical cables, use recommended standard system.
  • Page 7 Power Drill Phillips Head Screwdriver • • Crescent Wrench Tape Measure • • Metal Drill Bits Level • • Hacksaw Wire Strippers • • Flat Head Screwdriver C-clamps • • Other items that may be needed prior to commencing installation. Cement, boards for a slab frame, and a trowel.

  • Page 8: Manual Operation

    Manual Operation 1. Open the protective key cover by turning the counter clock-wise. 2. Turn the provided key in the lock. 3. Rotate the dial clockwise.

  • Page 9: Installation Of Mounting Hardware

    Installation of Mounting Hardware Set the Foundation Plate 1. Find the distance the foundation plate must be from your gate. The foundation plate must be located as shown in example A (right closing) or example B (left closing) to ensure the rack and pinion mesh correctly.
  • Page 10 2. Secure the provided bolts to the foundation plate as seen in the diagram below. There should be a nut above and below the plate. 2. Observing the dimensions from step 1, Create a concrete slab around the bolts. Create a slab with the dimensions found below.
  • Page 11 Securing the Operator 1. Position the operator over the foundation plate and slide the treaded part of the bolts thought the oblong holes on the outside of the base of the opener. If the height of the operator from the slab ever has to be adjusted, the nuts just above the plate can be moved up the threading and the operator can rest on the nuts (as seen in the illustration to the right).
  • Page 12 3. Move the gate manually, checking if the rack is resting on the pinion. Repeat at each hole. 4. Bring another rack element near the previous one, using a piece of rack (as shown below) to synchronize the teeth of the two elements. 5.
  • Page 13 Travel Limit Magnet Installation The ESTATE SLIDE operator is supplied with a Two magnets that trigger limits built into the motor that need to be secured to the top of the rack. This triggers gate movement to stop in the open and closed position.
  • Page 14 For Your Convenience The white terminal strips on the control board are easily removed for wiring. Simply pull straight out on the terminal strip to remove it from the board. It will slide right off. Slide it back on when you are finished with your wiring connections.
  • Page 16 Power 1. The Estate Swing E-SL 1800 comes with 1) 24V transformer. The transformer supplied has 2 screw terminals to connect to. You may locate the transformer up to 144’ away from the control board using 2 conductor stranded direct burial wire as specified below.

  • Page 17: Temporary Safety Jumpers

    Temporary Safety Jumpers For the highest level of safety, the Estate Swing systems are set up with Normally Closed safety terminals. This means that in order for the gate opener to move these terminals must be closed either through a safety device (recommended) or with jumpers. Temporary safety jumpers are provided in the control box hardware bag for jumping these terminals to common (COM) during the set-up process.
  • Page 18 Programming Operating Parameters Complete this step prior to programming the gate movements. This will dictate how your gate will react during programming. If you do not use a backup battery and lose power or if you must disconnect all power during programming to reset your control board, you MUST start at this step before programming movements or operating your gate, all parameters return to default.
  • Page 19 Operating Parameters Chart A1, A2, A3, A4 Force: 1 = Obstructs easily, 4 = Obstructs less sensitive Obstruction is when gate meets resistance motor stops and reverses directions C0, C1 0 = Auto reclose off, 1 = Auto reclose on Time delay set during run time learning process D0, D1 0 = open/close/open, 1 = open/stop/close/stop...
  • Page 20 Programming Gate Movements In this stage, your control board will memorize run time so it may judge where to begin slowing down for the soft stop feature. Also if the auto-close feature is activated it will learn the user specified pause time. 1.
  • Page 21 LED Lights & Operational Displays Control Board LED Lights - The control board LED lights are located above their respec- tive terminals that they represent. (With exception of ALIM, power supply light) The LED lights are a quick way of verifying necessary connections are made. Below is a chart of their interpreta- tions.

  • Page 22: Control Board Overview

    Control Board Overview Caution! Do not run 110V AC power direct to the board. This will cause permanent damage to both boards and void your warrantee. Caution! M1 - Located on the bottom left of the board, these terminals are for accessories and safety de- vices.
  • Page 23 M3 - Located on the right center bottom of the board, these terminals are outputs for the operator arm, and lamps (optional). LAMP - terminals. A flashing lamp can be connected to these terminals with a power supply of 24V •...
  • Page 24 The accessory manuals you have or find at the above address may be written to coincide with that manufacturers model of gate opener. To determine correct terminals on your Estate Swing operator, use the accessory terminal section of your Estate Swing manual. The following are some common terms and abbreviations found in manuals: Normally Open –...
  • Page 25 Warranty / Troubleshooting Notice If you call in for technical support or warranty sup- port: before any control board or motor will be per- mitted to be sent in for testing or warranty you will be required to e-mail digital photos to the technician. This is done in your best interest to save unnecessary shipping expenses and time lost.
