APPLICATION:
The SSR Series Voltage Regulators provide reliable, high performance voltage regula-
tion for 50/60 and 400 Hz brushless generators requiring 12A of excitation at either 32,
63 or 125 Vdc. The SSR Voltage Regulator receives its power for precise voltage
regulation from a PMG (Permanent Magnet Generator), self excitation from the genera-
tor line, or other AC sources. Supplied with each regulator is a spike suppression chassis
for PMG and power isolation transformer applications.
FEATURES:
• Regulation accuracy better than ±0.25%
• Adjustable frequency compensation
• Selectable single or three-phase sensing
• Built-in parallel droop or cross current compensation
• Overexcitation shutdown
• Solid state voltage buildup
• EMI suppression built-in
• Modular replaceable parts for ease of service
• Applicable for 50, 60 or 400 Hz systems
• Compatible with single phase PMG generator
(50 to 240 Hz power input range)
• Spike suppression chassis
• Compatible with a wide range of accessory control and protective devices
• CSA approved – CSA File Number LR 23131
INSTRUCTION MANUAL
Request Publication 9185900990
ROUTE 143, BOX 269 HIGHLAND, ILLINOIS 62249, U.S.A. PHONE 618-654-2341 FAX 618-654-2351
ADDITIONAL INFORMATION

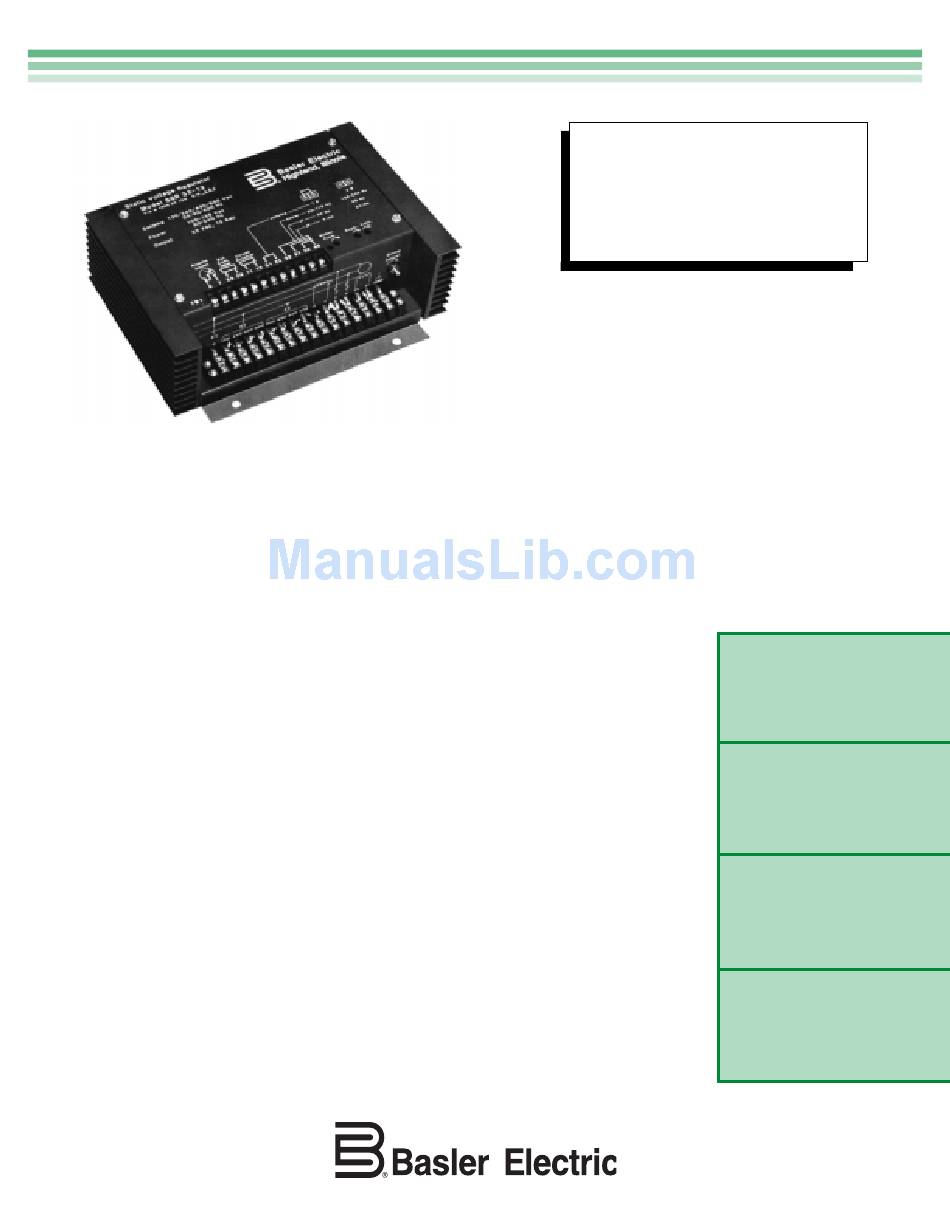

SSR Series Voltage Regulators
Class 200 Equipment
SSR SERIES
VOLTAGE REGULATORS
FEATURES AND
APPLICATIONS
this page
DESCRIPTION AND
SPECIFICATIONS
page 2
ACCESSORIES AND
INTERCONNECTS
page 3
OUTLINE AND
DIMENSIONS
page 4
SX-6
9-92
