Installation Manual

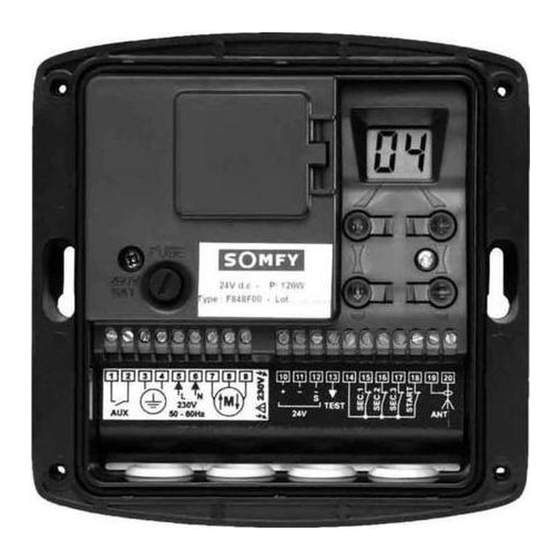

Radio receiver for rolling garage door
The AXROLL receiver is used to control a rolling garage door fitted with
a 230V motor with built-in endstops using Keytis 2/4 RTS, Telis1/4 RTS,
and Inis RT transmitters.
Different safety and signaling systems can be connected to the AXROLL
(sensor bar, photocells, flashlights, area lighting).
This product complies with the standard "SHousehold and similar electrical appliances - Safety - Part
2-95: Particular requirements for drives for vertically moving garage doors for residential use" IEC
60335-2-95.
This contributes to implementing installations complying with the standard "safety in using motorised
doors" NF EN 12453. Axroll must be installed inside the garage with a motor equipped by a manual
override system.
Power supply voltage : 230Vac 50-60 Hz.
Fuse : 250V 5A with timeout
Max motor power : 230Vac 750W.
Protection rating : IP 55.
Ambient operating T° : -15°C to +55°C.
Radio frequency : 433.42MHz
150 mm
Accessory power supply : 24Vcc (direct).
Resistance values for resistive sensor
bar : From 5 to 14
Maximum current for accessories : 0.33A i.e. 8W max.
150 mm 40 mm
(cells, keypads, loops, sensor bar, etc...)
Orange light : 24V, 10W max or 230V 40W max
Hereby, SOMFY, declares that this product (AXROLL) is in compliance
with the essential requirements and other relevant provisions of Area lighting : 230Vac, 500W.
Directive 1999/5/EC.
Auxiliary output : Contact NO, 250Vac 500W.
A Declaration of Conformity is available at the web address
Operating class : 1, the ground must be connected.
www.somfy.com Heading CE. Usable in EU, CH
Ref.N1841017B V1
SOMFY SAS, capital 20 000 000 Euros, RCS Bonneville 303 970 230
2
Checking the motor's rotation direction
1 Powering on the product: the display indicates the value
2 Check the motor's rotation direction using the " + " and " - " keys.
press and hold the " + " key to open the door.
press and hold down the " - " key to close the door.
If the operation is reversed, power off the product, and revert the motor's wiring
(terminals 7 and 9).
Refer to the motor's installation manual to set the end stop system.
Measure the motor operating time using permanent running (e.g. 20sec. for rising), then set the T0 parameter (motor operating time,
3
chapter 3.8) with a value slightly above the time observed (about +3 sec.).
3
Configuration
The Axroll control box is fully and easily configured to achieve optimum operation matching the types of accessories connected, as
well as the operation mode required by the user.
The various parameters proposed are not mandatory, and browsing the menus imposes no particular sequence.
1 sec.
Use the " " or " " keyrs to One second after releasing the key,
browse the menu and display
the screen indicates the parameter
the parameter required. value to change.
(display blinks)
To return to the menu, press the " " or " " keys to return to value C1 (or any other value indicating the
product's operation: see § 4) or after a one-minute waiting time.
1

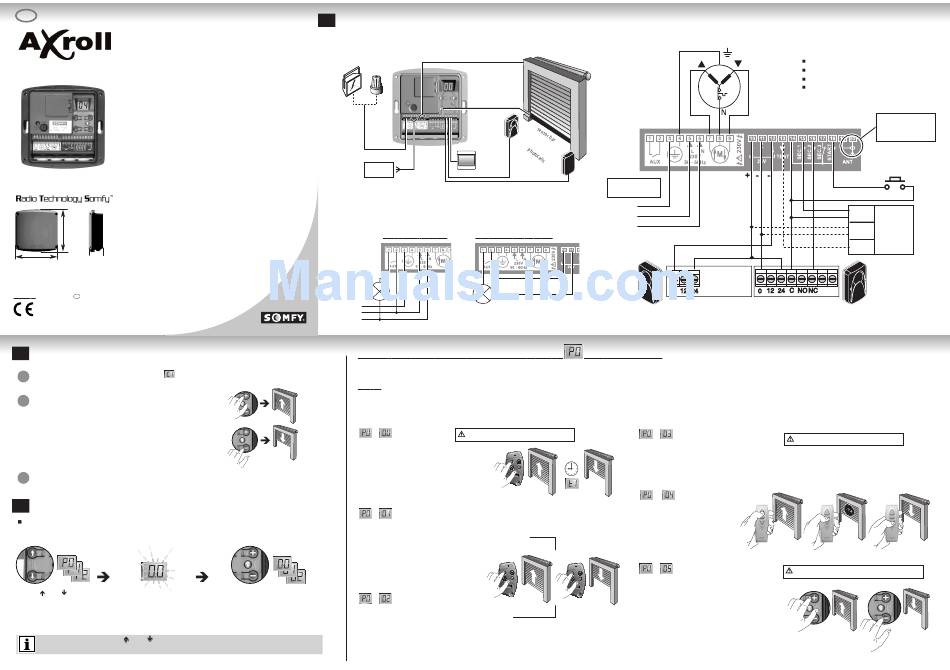

Wiring

The cross-section of the wires is given for information.
lighting or
signaling
chapter 3.7
2 x 0.75 mm
MAINS
230V - 50Hz
KΩ
or 13W intermittent (orange light
lighting
10W + accessories 3W.)
500W max.
Ground
Phase
Neutral

3.1 Configuring the operating mode: parameter

Certain operating modes impose connecting safety accessories (NF EN 12453). Non compliance with these rules can lead to a facility
hazardous for its users.
The Axroll has six operating modes:
=
Pressing the remote control opens and closes automatically
after timeout T1 (chapter 3.8).
During closing, pressing the remote control again or the
detection of an obstacle reopens the door.
=
Pressing the control triggers opening or closing. Pressing again
during opening has no effect.
Pressing during closing reopens the door.
Use the " + " or " - " keys to change the value of the
=
parameter.
The last value is recorded automatically (the display is
Cyclic operation (up / stop / down / stop...).
fixed when pressing the keys).
Pressing during opening or closing stops without reversion.
Motor
4 x 0.75 mm 2
2 x 0.75 mm 2
2
2 x 0.75 mm 2
Push-
button
2 x 0.75 mm 2
3 x 1.5 mm 2
4 x 0.75 mm 2
Lighting configuration Orange light configuration
orange lights.
: Automatic mode
Mandatory installation of safety accessories
: Semi-automatic mode
: Sequence mode
Motor
230V - 50Hz
Ground
Phase
Neutral
Photocells
Ref: 9001000
(plant value = 05)
: Sequential mode + Timeout
=
Similar to the sequential mode, but with automatic closing aftert
timeout T1 (chapter 3.8).
: 3-button mode
=
This mode is used to set a separate control
for opening, closing, and stopping the
door.
: Forced mode with + & - keys on the
=
keyboard
(default mode)
This mode is used to control the door using the " + " and
" - " keys on the Axroll box in the endstop adjustment phase.
Press and hold " + " to open.
Press and hold " - " to close.
Apply the electric installation standards, as well as
the following points:
switch off the mains before any intervention.
use flexible cables.
connect the ground cables.
after installation, no traction must be applied to the
terminal strips.
Pull the antenna wire
through the right-hand
wire grommet.
Push-
button
Contact
Sensor
Supply
bar
Test
Mandatory installation of safety accessories
in this mode, the safety devices are deactivated
