Radio receiver
Heat receiver RTS
1.
Characteristics
2.
Installation
Establishing, examining, starting up and elimination of errors of the plant may only be accomplished by an electrical specia-
list. Switch off all connected devices! The correct functioning of the device is ensured only when mounting installation is
conform in terms of power supply and regular maintenance.
Heat receiver RTS
Installation
The Heat receiver RTS is a radio receiver dedicated to control a heater,
lamp or other electrical device with a max. load of 2000 W.
Up to 12 different RTS remote controls can be recorded in the memory of
the Heat receiver RTS. The Heat receiver RTS must be installed and pro-
grammed by qualified installers for whom this instruction is intended.
Porduct reference number:
Guide
Heat receiver RTS
1 822 097
Main Supply:
220 - 240 V ~ 50/60 Hz
Radio Frequency:
433,42 MHz
Protection Index:
IP 54
Class 1 Product:
I
Operating Temp.:
-20° C to +60° C
Max Load:
2000 Watt at 220-240 V/~50/60 Hz

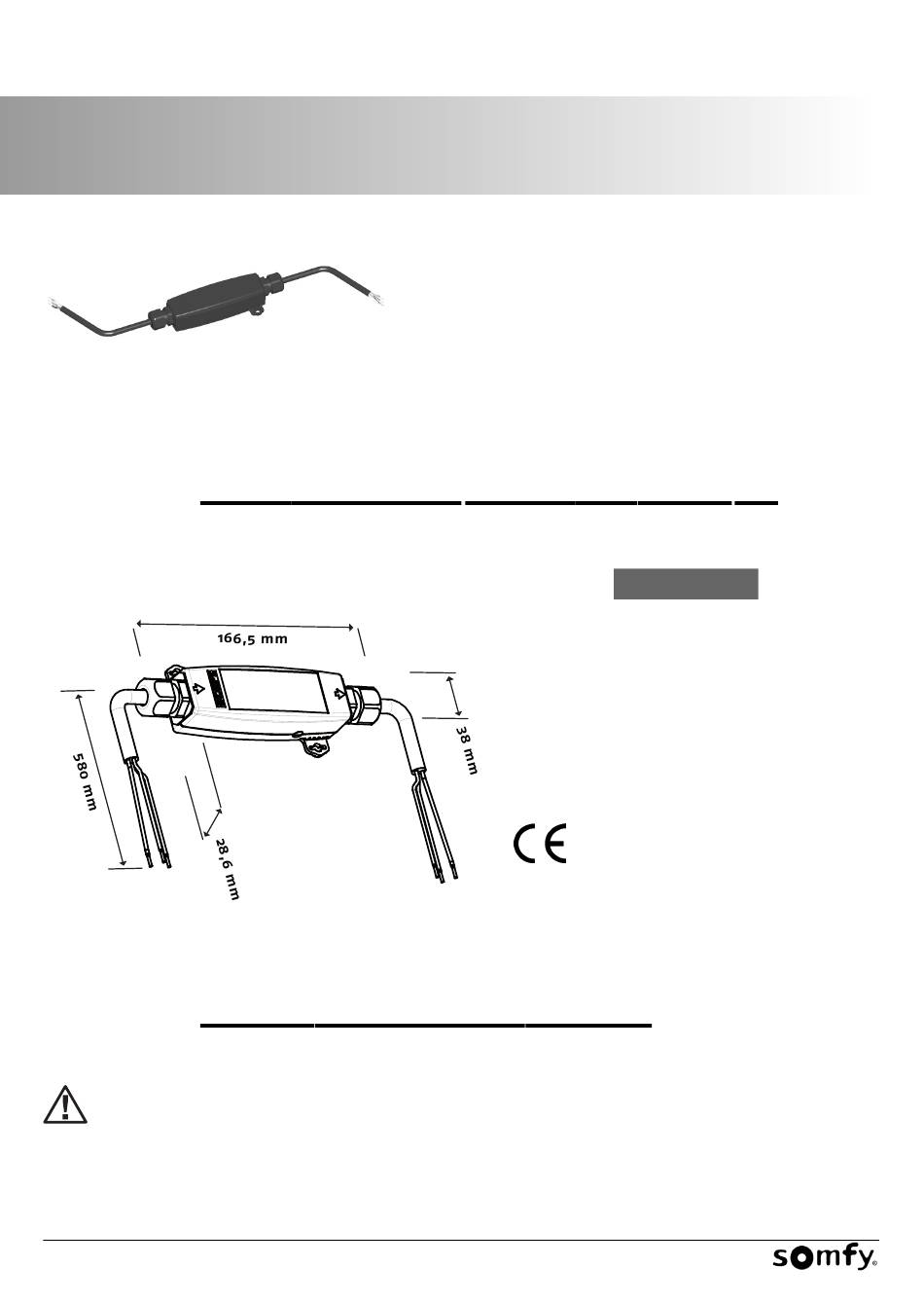

Dimensions (mm):
166,5 x 38 x 28,6
Hereby, Somfy declares that this equipment is in compliance with the
essential requirements and other relevant provisions of Directive
1999/5/EC. A declaration of conformity is available at the web address
www.somfy.com Heading CE.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SOMFY 1 822 097
Summary of Contents for SOMFY 1 822 097
- Page 1 2000 Watt at 220-240 V/~50/60 Hz Dimensions (mm): 166,5 x 38 x 28,6 Hereby, Somfy declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A declaration of conformity is available at the web address www.somfy.com Heading CE.
- Page 2 Mounting The Heat receiver RTS can be mounted with screws. Recommendations of mounting for better radio reception: - Minimum distance between the Heat receiver RTS and the floor: 1500 mm. - Minimum distance between the Heat receiver RTS and the radio transmitter: 300 mm. - Minimum distance between two RTS receivers: 300 mm.
- Page 3 Add a new control Up to 12 RTS remote controls can be recorded in a heat receiver RTS. Set the Heat receiver RTS in its programming mode: Press for more than 2 seconds the “prog” button of an already recorded control. ➔...
- Page 4 Resetting the Heat receiver RTS (factory settings). Make a double power cut-off of the main: OFF 2 seconds ➔ ON min. 5 seconds ➔ OFF 2 seconds ➔ ON. ➔ The Lamp blinks during 2 minutes with an interval of 5 seconds. This indicates that the Heat receiver RTS can be reset to factory settings now.
