1. Name and Parts
6
8
6
8
7
1
4
2
9
2
3
2
11
11
10
1. Battery Capacity Indication LED
2. Red LED-Rec On
3. Rec On/Off Switch
4. Power/Format/ Display Button
5. Zoom In/ Out Switch (4x)
6. Wifi On/Off Switch
7. Reset Button
8. Defaul Button
9.Microphone
10. Memory Card Slot
11. USB Port
1
2. Slide back the switch
to upper
3
position when the red LED turns
off.
6. Date and Time Setting
1. Right-click on Windows desktop. Choose Notepad to create a .txt
(text) file. Then double-click the text file.
2. Suppose current time is February 25, 2014 13:00 Enter date and
time information as 2015.11.25 13:00:00.
Note that a space must
be presented in between date and hour and time is in 24-hour
format.
3. Name the file as settime.txt and save it to the root directory of
the memory card.
4. Insert the memory card to the slot then power on the device. The
date and time setting is now completed.
5. Please note when the date and time information is successful set
to the device the settime.txt file should not be visible when you
connect the device to the computer again.
5
2. Package Content
1
2
3
Adapter
4
User's manual
4
1. Smartphone 6 case DVR
2. Memory card
3. USB cable
4. User's manual
2
7. Recording
4
1. Press Power Button
to turn on the power(three blue LED
will be on)and slid down the Rec Switch
3
. If you see the red
LED is steadily on, it means the video recoding has started
(1080p). If you see the red LED just blink once, then the memory
card is not inserted. If the red LED blinks slowly for 3 times ,
then the memory is already full .
2. To test the zoom function, please slide down the Zoom Switch
2
to zoom in 4x while the recording is on. Then slide up the
Rec Switch
3
to turn off the recording(red LED will be off). The
video clip will be saved and you can check it later in PC.
3. For WiFi connection,while the Rec is on, slide down the Wifi
6
Switch
to turn on the connection. You'll see the red LED turns
6
orange if it starts connecting. Once it's successfully connected
to WiFi, the LED will remains orange. Then you can start to
control the unit with your APP(The App can control the unit
within the range of 5-8 meters away,please refer to the Wifi
guidebook for details).
4. If you want to reset the unit, turn the Rec on(red LED on) and
7
press the Reset Button
, the Red LED will be off. Restart the
Power& Rec, the unit is already reset.
8
If you forget the password, press the Defaut Button
seconds and the password will be back to default setting
(88888888) and the hidden SSID will show up again
with original names.
If you want to restore the unit back to factory default settings,
press Defaut Button
for 10 seconds.You will see the red LED
8
blinks three times and off(Rec will stop). After 3-5 seconds, the
yellow LED will be on and satrts blinking.Every settings will be
back to default settings.
6
3. Assembly for Smartphone 6
1. Slide in your Smartphone
6 all the way into the case.
2. Done
3. Insert the memory card in the
Memory Card Slot and put the
plastic covering in place.
4. To remove your Smartphone
from the case, you will need
to pull it off from the bottom.
3
6. Once the memory is full, the red LED will blink slowly for 3
times and the unit will be automatically turned off.
7. Whether the unit is connected to APP, you can turn on/off the
recording by switching the Rec Switch
connected,you can do the device setting, choose recording
mode and take snapshot with the APP.
8. PC Related Download and Setting
1. To view the files in your PC while the memory card is in the unit,
connect the USB cable to the PC and turn on the Rec Switch.
Once connected,the red LED will be on, your previous recording
clips will be saved in the units automatically. You can now view
the recording files in the Removabale Disk.
2. If the memory card is not inserted,once you connect the unit
with the USB cables to the PC, the unit will be switched to
web-cam mode automatically.
3.To change the default SSID name,right-click on Windows desktop.
Choose Notepad to create a *.txt (text) file. Then double-click the
text file. Name the file as setSSID.txt and type the SSID name you
want in the file and save the text file to the root directory of the
for 3
memory card.
Note that SSID name must be started with PV
and followed by at least 6 alphanumeric characters(the maximum
length is 16 characters),e.g. PV888888.
7
4. Charging the Battery
Connect to PC by USB cable
1. With the unit powered off, connect the supplier USB cable to the
USB port on the base of the device.
2. Connect the other end of the USB cable to a computer or an
USB charger.
3. To check the charging status, press Power on Button
three blue indicator will be blinking from left to right.
4. When the battery reaches to a complete charge, three blue LED
will be steady on. When the battery percentage reaches 65%, the
left and middle blue LED will be on. When the battery percentage
drops to 35%, the left blue LED will still be on. Once the
percentage is below 5%,the blue LED will blink and the unit will
not be functional untill you recharge the battery.
5. Memory Card Format
1. With the unit powered off

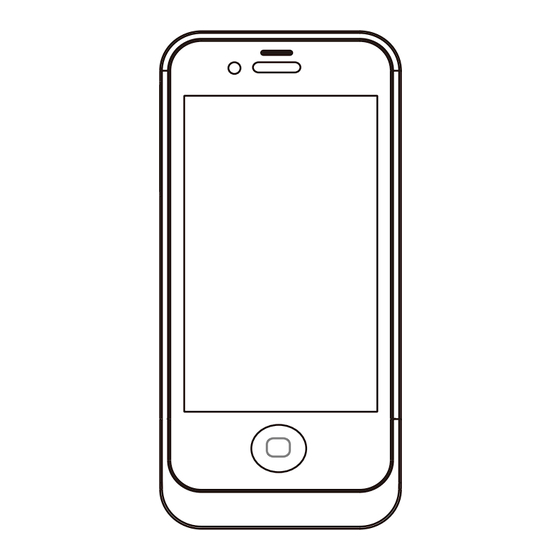

PV-IP6HDW
Smartphone 6 Battery Case DVR
Quick Guide
. Once the APP is
3
LawMate, innovation never stops
and the
4
3
(slide
switch at upper position), press and
hold Format Button
then slide
4
Rec On switch
3
and wait for a few
seconds until you see the red LED
blinks then release the Format
Button
4
.
4
®
