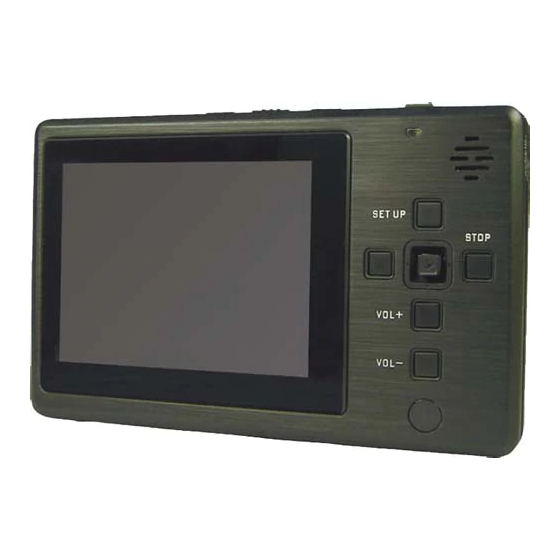

Lawmate PV-1000 User Manual

Portable player
Hide thumbs Also See for PV-1000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for Lawmate PV-1000

Summary of Contents for Lawmate PV-1000

  • Page 2: Table Of Contents

    TABLE OF CONTENT CHAPTER 01 OVERVIEW FUNCTION MODES BASIC OPERATION INTRODUCTION OF SETTING FUNCTIONS VIDEO PLAYBACK VIDEO EDITING PHOTO BROWSING PHOTO EDITING MODE SUPPORTED IMAGE FILE FORMAT RECORD REMOTE CONTROLLER SPECIFICATIONS SUPPORTED VIDEO FILE FORMAT PRECAUTION PV-1000 User Manual...

  • Page 3: Overview

    Overview PV-1000 Main Device Recording Button Hold Button AV Output Power ON/OFF AV Input Wire Control Port Camera in Power Supply Jack / DC 5V out USB Jack SD Card Slot Reset Button IR Sensor PV-1000 User Manual...
  • Page 4 Overview Wire control Wire Control Port Indication Light POWER Indication Light Power OFF/ON/ REC AV in/ DC12V Out Jack PV-1000 User Manual...

  • Page 5: Remote Control

    Overview Remote control LCD/TV Switch Recording Button Switch Power On Button Five-direction Key & Pause key ESC/STOP Volume Button Setup Button PV-1000 User Manual...
  • Page 6 Overview Accessories PV-1000 User Manual...

  • Page 7: Function Modes

    Function Modes Video file playback Browse images and picture External video source recording Functions setting PV-1000 User Manual...

  • Page 8: Basic Operation

    Do this Turn On Press the Power On/ Off button about 1 sec. on PV-1000, to turn on the power and the greeting screen will appear. Press the Power On/Off about 1sec. button on PV-1000 or press the Power button on the remote control to Turn Off turn off PV-1000。...
  • Page 9 While playing Video, press the volume VOL+ / VOL- buttons or the one in the remote ● controller to adjust volume. Volume varies in 10 steps. ● Volume status will be displayed on the left–down side of screen. ● PV-1000 User Manual...
  • Page 10 Basic operation Record button Start Recording: Push the REC button on the PV-1000 or the one on the remote ● controller to start recording. Stop Recording: Press STOP button or the one on the remote controller to stop ● recording, and the screen will return to stand-by mode of Preview to prepare for recording.
  • Page 11 Connect to PC: Connect to wire controller: ● ● 1. Connect the two ends of A/B type of USB cable to PV-1000 and PC. 2. 2 An indication for “USB Mode” appears on the screen for 5 seconds PV-1000 User Manual...
  • Page 12 The LED light will be turned off after finishing charging; to keep long life -span of the battery, the power supply should be unplugged after finishing charging; Please charge the battery last for 12 hours before 1st time to use PV-1000 User Manual...

  • Page 13: Introduction Of Setting Functions

    Device ID Stamp (On/Off) ● Display (LCD/TV/Both) ● Microphone sensitivity ● Over-write ● Notice: TV output, it is needed to set the Display on TV. Push  to select LCD/TV/ Both; press | to confirm the setting PV-1000 User Manual...
  • Page 14 Frame Rate ( 1 / 5/ 15 /20/25) ● Audio (Enable/ Unable) ● Frame Counter Stamp (On/Off) ● Timestamp (On/Off) ● Device ID Stamp (ON/Off) ● Display (LCD/TV/BOTH) ● Pre-Record Time (30 sec，15 sec) ● Microphone sensitivity ● Over-write (Disable/Enable) ● PV-1000 User Manual...
  • Page 15 Frame Counter Stamp (On/Off) ● Timestamp (On/Off) ● Device ID Stamp (ON/Off) ● Display (LCD/TV/BOTH) ● Motion detection level (LOW/Medium/High) ● Motion Detect Record time (30sec/1min/3min/5min/10min) ● Motion Detect Area Select ● Microphone sensitivity ● Over-write (Disable/Enable) ● PV-1000 User Manual...
  • Page 16  to select Normal/Preview/Pre-Event/Motion Detect ; press to confirm the setting. | 08. Resume period to pre-set > set up the timing to recording mode  Push to select 15sec/30 sec; press |u to confirm the setting. PV-1000 User Manual...
  • Page 17 No/30 sec/ 1 min/ 3 min; press | to confirm the setting. 11. Storage medium option > Set up the screen to be automatically returned to recording mode. Push  to select SD or HDD to be written for recording, after selection, press | to confirm the setting. PV-1000 User Manual...
  • Page 18 SD or HDD Push  to select SD/HDD; press | into format set up and push  /  to select OK or Cancel. 15. TV-out setting >  Push to select NTSC/PAL; press | to confirm the setting. PV-1000 User Manual...
  • Page 19 Push  to select On/off; press to confirm the setting. | 20. Slide show > set up if enable slideshow Push  to select All/No; press to confirm the setting. | PV-1000 User Manual...
  • Page 20 Cancel for Firmware Upgrade, after select press | to confirm the setting. 23. Restore factory setting > Push  /  to select Ok or Cancel to reset default values, after selection, press to confirm the setting. | PV-1000 User Manual...
  • Page 21 Introduction to all Setting Functions 24. Device on password > lock or not to lock when turning on PV-1000; if set” On”, it requires password to enter main menu of PV-1000 player. Push  to select On or Off ; press |...
  • Page 22 STOP to the upper level. | 30. Save all log file >  Push to select SD / HDD to be written for saving all log files. 31. Device information > show information about PV-1000 PV-1000 User Manual...

  • Page 23: Video Playback

    8 times Speed Playback: push  three times during normal playback or press| ● during four times speed playback, the video file will be played with a speed eight times quicker; press  to return to the normal playback speed. PV-1000 User Manual...
  • Page 24 Eight times reverse playback: push  three times during normal playing, the ● video file will be played with a speed eight times quicker; press  /  /  /  to return to the normal playback speed. PV-1000 User Manual...
  • Page 25 Press | to return to normal playback. The captured pictures will be stored in the image file. Notice: It is unable to capture an image by using remote control. PV-1000 User Manual...

  • Page 26: Video Editing

    In File List mode > Press SETUP button, the setting items will appear: Video Playback (All/Single/No) ● Video Thumbnail (on/off) ● Delete (One/All) ● Protect ( On/Off) ● Copy ( One/All) ● MOVE (One/All) ● File Information ● PV-1000 User Manual...

  • Page 27: Photo Browsing

     /  /  /  to select the photo folder listed by date; then press | to browse. Press STOP to return the upper level of My Record.. PV-1000 User Manual...
  • Page 28 In File list Mode or Image Browsing Mode, press SET UP button to show the ● setting items, select “Start Slide Show” and press | to start the Slide Show. Press STOP to stop Slide Show. ● PV-1000 User Manual...

  • Page 29: Photo Editing Mode

    Press | to read file information /Press STOP to return to the upper level In File List Mode : Press SETUP button, the setting items appear: Slide Show Start ● Thumbnail Preview ( On/Off) ● Slide Show Time (No/All) ● Slide Show Time (3 sec/ 5 sec/ 7 sec/10sec) ● PV-1000 User Manual...

  • Page 30: Supported Image File Format

    Supported Image File Format Supported Image File Format Baseline Lower than 4032 * 4032 PV-1000 User Manual...

  • Page 31: Record

    ● Quality (Good/Normal/Low) ● Frame Rate ( 1 / 5/ 15 /20/30) ● Audio (Enable/Disable) ● Frame Counter Stamp (On/Off) ● Timestamp (On/Off) ● Device ID Stamp (On/Off) ● Display (LCD/TV/Both) ● Microphone sensitivity ● Over-write ● PV-1000 User Manual...
  • Page 32 Display (LCD/TV/BOTH) ● Pre-Record Time (30 sec，15 sec) ● Microphone sensitivity ● Over-write ● Frame Counter Stamp (On/Off) ● Notice: Under this Pre-Event mode, the video image will be automatically recorded to Video file without pressing REC button. PV-1000 User Manual...
  • Page 33 Motion Detect Level ( High/Medium/Low) ● Motion Detect Record Time (30 sec/1min/3 min/ 5 min/ 10min) ● Motion Detect Area Select >Press | to select the area for target of ● motion detect. Microphone sensitivity ● Over-write ● PV-1000 User Manual...
  • Page 34 Record Video Capture > Capture Image while recording ■ Press button on the left side of five direction key on main device for a snapshot. The captured pictures will be stored in the image file. PV-1000 User Manual...

  • Page 35: Remote Controller

    Do this Power Off Slide the switch to Off position to power off the device. Power On Slide the switch to On position to power on the device. Record Slide the switch to Rec position to start recording. PV-1000 User Manual...

  • Page 36: Specifications

    210g / 256g (battery included) Operating system: Window: Window2000, Window XP CPU: Intel Pentium III 800 MHz and beyond System Requirements Relevant hardware accessories: USB port, Mouse, CD-ROM Window- compatible display with a required resolution of 1024 * 768 PV-1000 User Manual...

  • Page 37: Supported Video File Format

    VOB (DVD file format Without copy protection a-law, u-law MJPEG ( AVI) Notice: ● :can be played in PV-1000. X : can not be played and the file format can not be converted. Resolution setting: (352*288 /640*480/720*56/1024*768/1280*720/1280*960) PV-1000 User Manual...

  • Page 38: Precaution

    Please do avoid heavy vibration while recording, which might damage the hard disc or other components inside the unit. ● Please do not apply heavy pressure on your PV-1000; the player may be damaged because of heavy pressure. ● While plug the SD card if the card can not slide smoothly to the end, do not enforce to push it, which might damage the ●...
  • Page 39 If the device is moved from a cold place to a warm one, the LCD screen will fog up; if this situation takes place, please ● turn off your PV-1000 and wait for about one hour before use. Do not store or operate the PV-1000 under such environment below: High humidity.
  • Page 40 ● Programs Subsidiary Application Programs System tools fragment tool. Step 03: Select the hard disc device from the PV-1000 which been linked well & detected by PC to be the target to ● start the fragment task to. Step 04: Once under the fragment, an analysis will come first, after then will start to do the fragment accordingly.
  • Page 41 NOTES PV-1000 User Manual...
