Summary of Contents for Lawmate PV-1000

  • Page 2: Table Of Contents

    TABLE OF CONTENT CHAPTER 01 OVERVIEW FUNCTION MODES BASIC OPERATION INTRODUCTION OF SETTING FUNCTIONS VIDEO PLAYBACK VIDEO EDITING PHOTO BROWSING PHOTO EDITING MODES SUPPORTED IMAGE FILE FORMAT RECORD REMOTE CONTROLLER SPECIFICATIONS SUPPORTED VIDEO FILE FORMAT IMPORTANT PV-1000 User Manual...

  • Page 3: Overview

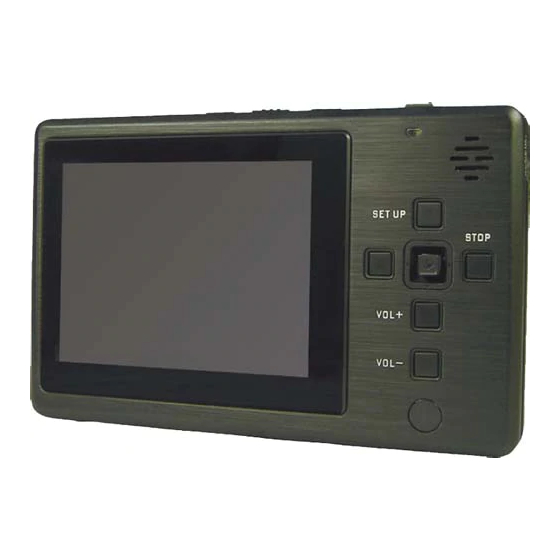

    Overview PV-1000 Main Device Recording Button Hold Button AV Output Power ON/OFF AV Input Wire Control Port Camera in Power Supply Jack / DC 5V out USB Jack SD Card Slot Reset Button IR Sensor PV-1000 User Manual...
  • Page 4 Overview Wire control Wire Control Port Indication Light POWER Indication Light Power OFF/ON/ REC AV in/ DC12V Out Jack PV-1000 User Manual...
  • Page 5 Overview Remote control LCD/TV Switch Recording Button Switch Power Button Navigation & Pause Button ESC/STOP Volume Button Setup Button PV-1000 User Manual...
  • Page 6 Overview Accessories PV-1000 User Manual...

  • Page 7: Function Modes

    Function Modes Video file playback Browse images and pictures External video source recording Function settings PV-1000 User Manual...

  • Page 8: Basic Operation

    After selection, press to enter the selected function. Note:  /  /  /  The navigation key will be shown as on PV-1000 main device. The navigation key will be shown as on remote control. PV-1000 User Manual...
  • Page 9 When video is playing on display , press the volume VOL+ / VOL- buttons or ● on controller to adjust volume. Volume is ranged in 10 levels. ● Volume status is displayed on the lower left corner of display. ● PV-1000 User Manual...
  • Page 10 Basic operation Record button Start Recording: Press the REC button on the PV-1000 or on controller to start ● recording. Stop Recording: Press STOP button or on controller to stop recording. Device will ● automatically access to standby mode to prepare next recording.
  • Page 11 Connect to PC: Connect to wire controller: ● ● 1. Connect the two ends of A/B type of USB cable to PV-1000 and PC. 2. An indication of “USB Mode” appears on the display for 5 seconds. PV-1000 User Manual...
  • Page 12 The LED light is turned off after charged. To keep long life-span of the battery, the power supply should be unplugged after finishing charging. At first time charge, please charge the battery for continuous 12 hours before use. PV-1000 User Manual...

  • Page 13: Introduction Of Setting Functions

    Timestamp (On/Off) ● Device ID Stamp (On/Off) ● Display (LCD/TV/Both) ● Microphone sensitivity ● Over-write ● Note: To enable image output, note the setting, Setting > Preview > Display, requires to change to TV instead of LCD/Both selection. PV-1000 User Manual...
  • Page 14 Frame Rate ( 1 / 5/ 15 /20/30) ● Audio (Enable/ Unable) ● Frame Counter Stamp (On/Off) ● Timestamp (On/Off) ● Device ID Stamp (ON/Off) ● Display (LCD/TV/BOTH) ● Pre-Record Time (30 sec，15 sec) ● Microphone sensitivity ● Over-write (Disable/Enable) ● PV-1000 User Manual...
  • Page 15 Frame Counter Stamp (On/Off) ● Timestamp (On/Off) ● Device ID Stamp (ON/Off) ● Display (LCD/TV/BOTH) ● Motion detection level (LOW/Medium/High) ● Motion Detect Record time (30sec/1min/3min/5min/10min) ● Motion Detect Area Select ● Microphone sensitivity ● Over-write (Disable/Enable) ● PV-1000 User Manual...
  • Page 16 In Main Menu, press | to select Setting. Then, press | to select Resume Period to Pre-set. In Resume period to pre- set Submenu, press  /  /  /  to set values and press | to confirm the setting. Selections are 15sec/30 sec/No. PV-1000 User Manual...
  • Page 17 11. Storage medium option > In Main Menu, press | to select Setting. Then, press | to select Storage Medium Option. In Storage Medium Option Submenu, there are two selections, SD or HDD, where the recording will be written in. PV-1000 User Manual...
  • Page 18 In Main Menu, press | to select Setting. Then, press | to select TV-out set- ting. In TV-out setting Submenu, press  /  /  /  to set values and press | to con- firm the setting. Selections are NTSC/PAL. PV-1000 User Manual...
  • Page 19 In Main Menu, press | to select Setting. Then, press | to select Slide Show. In Slide Show Submenu, press  /  /  /  to set values and press | to confirm the setting. Selections are All/No. PV-1000 User Manual...
  • Page 20 In Main Menu, press | to select Setting. Then, press | to select Restore Factory Setting. In Restore Factory Setting Submenu, press  /  /  /  to set values and press | to confirm the setting. Press | to select OK or Cancel. PV-1000 User Manual...
  • Page 21 Introduction to all Setting Functions 24. Device on password > Setup device password to lock PV-1000. If set “On”, it requires password entry to ac- cess PV-1000 main menu. In Main Menu, press | to select Setting. Then, press | to select Device on Password. In Device on Password Submenu, press ...
  • Page 22 File. In Save All Log File Submenu, press  /  /  /  to set values and press | to confirm the setting. Selections are SD/HDD. 31. Device information > show information about PV-1000 In Main Menu, press | to select Setting. Then, press | to select Device Information to show information about PV-1000. PV-1000 User Manual...

  • Page 23: Video Playback

    8 times Speed Playback: press  three times during normal playback or press| ● during four times speed playback. Video file will be played with a speed eight times faster. Press  to return to the normal speed playback. PV-1000 User Manual...
  • Page 24  three times during normal speed play- Eight times reverse playback: ● ing. Video file will be played with a speed eight times faster. Press  /  /  /  to return to normal speed playback. PV-1000 User Manual...
  • Page 25 ● gation key on main device to take a snapshot. Press to return to | normal speed playback. The captured pictures will be stored in the image file. Note: Remote control cannot be used to capture image. PV-1000 User Manual...

  • Page 26: Video Editing

    In File List mode > Press SETUP button, the setting items will appear: Video Playback (All/Single/No) ● Video Thumbnail (on/off) ● Delete (One/All) ● Protect ( On/Off) ● Copy ( One/All) ● MOVE (One/All) ● File Information ● PV-1000 User Manual...

  • Page 27: Photo Browsing

     /  /  /  to select the photo folder listed by date; then press | to browse. Press STOP to return the upper level of My Record.. PV-1000 User Manual...
  • Page 28 In File list Mode or Image Browsing Mode, press SET UP button to show the set- ● ting items, select “ Slideshow Start” and press | to start the Slide Show. Press STOP to stop Slide Show. ● PV-1000 User Manual...

  • Page 29: Photo Editing Modes

    Press | to read file information . Press STOP to return to the upper level In File List Mode : Press SETUP button, the setting items appear: Slideshow Start ● Thumbnail Preview ( On/Off) ● Slide Show Time (No/All) ● Slide Show Time (3 sec/ 5 sec/ 7 sec/10sec) ● PV-1000 User Manual...

  • Page 30: Supported Image File Format

    Supported Image File Format Supported Image File Format Baseline Lower than 4032 X 4032 PV-1000 User Manual...

  • Page 31: Record

    Quality (Good/Normal/Low) ● Frame Rate ( 1 / 5/ 15 /20/30) ● Audio (Enable/Disable) ● Frame Counter Stamp (On/Off) ● Timestamp (On/Off) ● Device ID Stamp (On/Off) ● Display (LCD/TV/Both) ● Microphone sensitivity ● Over-write (Enable/Disable) ● PV-1000 User Manual...
  • Page 32 Device ID Stamp (ON/Off) ● Display (LCD/TV/BOTH) ● Pre-Record Time (30 sec/15 sec) ● Microphone sensitivity ● Over-write (Enable/Disable) ● Note: Under this Pre-Event mode, the video image will be automatically recorded to Video file without pressing REC button. PV-1000 User Manual...
  • Page 33 Motion Detect Level ( High/Medium/Low) ● Motion Detect Record Time (30 sec/1min/3 min/ 5 min/ 10min) ● Motion Detect Area Select >Press | to select the area for target of mo- ● tion detect. Microphone sensitivity ● Over-write (Enable/Disable) ● PV-1000 User Manual...
  • Page 34 Record Video Capture > Capture Image while recording ■ Press button on the left of navigation key on main device to take a snapshot. The captured pictures will be stored in the image file. PV-1000 User Manual...

  • Page 35: Remote Controller

    Do this Power Off Slide the switch to Off position to power off the device. Power On Slide the switch to On position to power on the device. Record Slide the switch to Rec position to start recording. PV-1000 User Manual...

  • Page 36: Specifications

    210g / 256g (battery included) Operating system: Window: Window2000, Window XP CPU: Intel Pentium III 800 MHz and beyond System Requirements Relevant hardware accessories: USB port, Mouse, CD-ROM Window- compatible display with a required resolution of 1024 X 768 PV-1000 User Manual...

  • Page 37: Supported Video File Format

    VOB (DVD file format Without copy protection a-law, u-law MJPEG ( AVI) Note: ● :can be played in PV-1000. X : can not be played and the file format can not be converted. Resolution setting: (352X288 /640X480/720X56/1024X768/1280X720/1280X960) PV-1000 User Manual...

  • Page 38: Important

    Please do avoid heavy vibration while recording, which might damage the hard disc or other components inside the unit. ● Please do not apply heavy pressure on PV-1000. Player itself may be damaged because of heavy pressure applied. ● If SD card the card can not slide smoothly to the end, do not force to press it in. This might damage the memory card and ●...
  • Page 39 If the device is moved from cold to warm environment, the LCD display will fog up. If this occurs, please turn off your PV- ● 1000 and wait for one hour. Do not store or operate the PV-1000 under environment listed below: High humidity. ●...
  • Page 40 Click Start > All Programs > Subsidiary Application Programs > System Tools > Defragment tool. ● Step 03: Select PV-1000 hard disc device and start the defragment task. ● Step 04: Application will analyze the disk, then will request consent to execute defragment task.
  • Page 41 NOTES PV-1000 User Manual...
