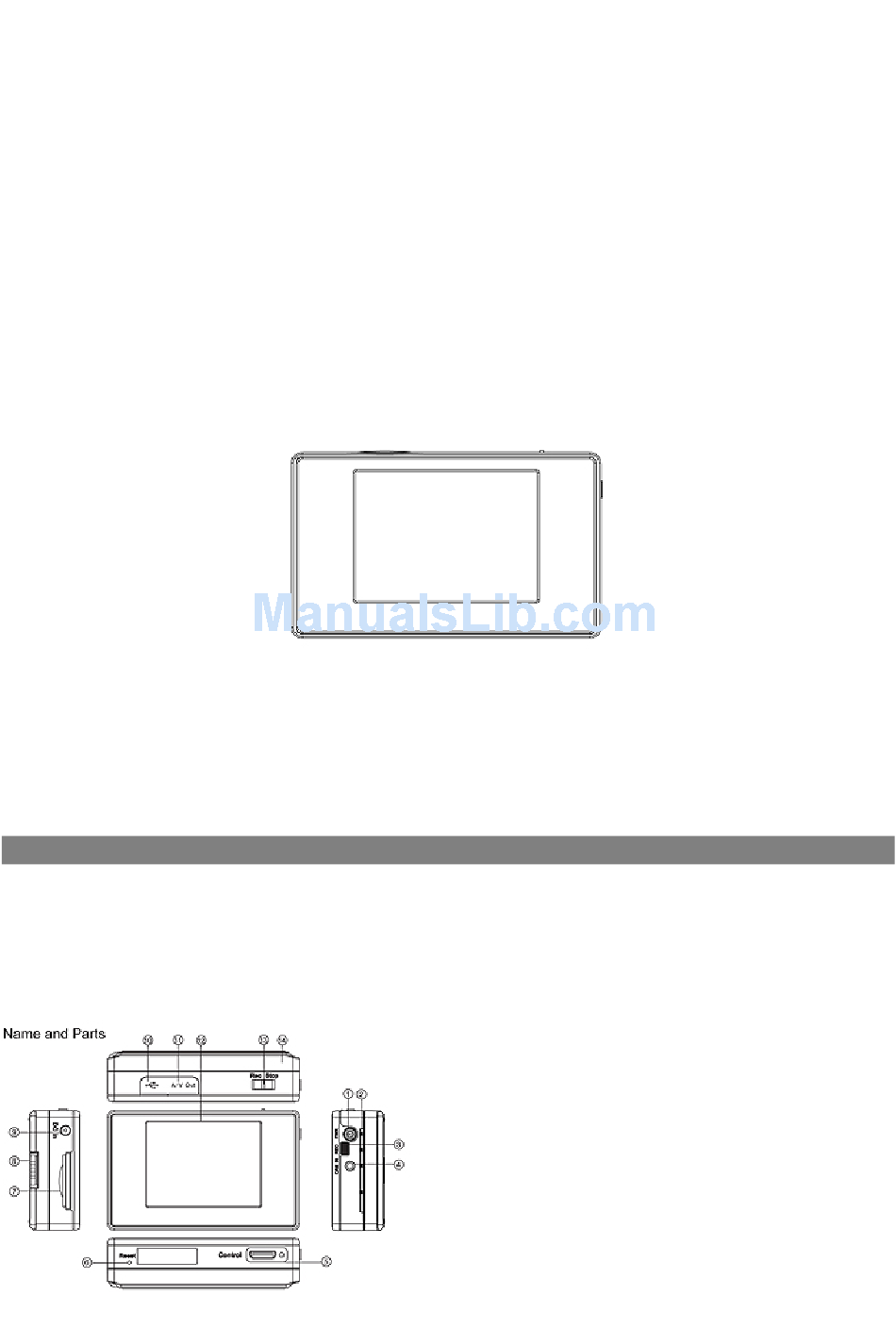

Page 1: Quick Guide

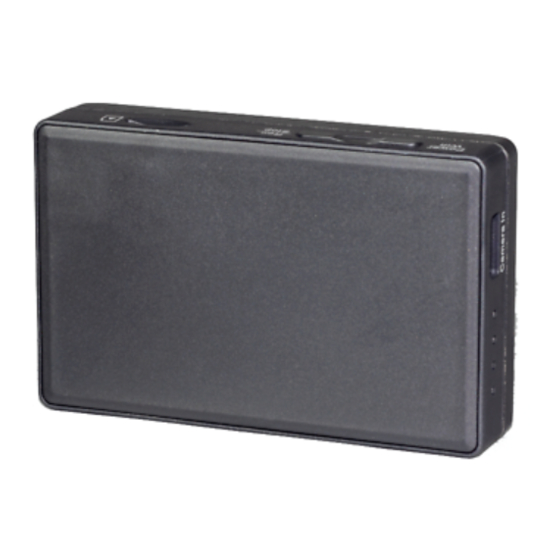

Lawmate PV-500 Lite Portable Digital Video Recorder User Manual Last Modified on 12/20/2015 10:59 pm EST PV-500LITE Portable Digital Video Recorder Quick Guide Law Enforcement Products Manufacturer LawMate V1.0 ■ Name and Parts... -
Page 2: Package Content
Power Button Status Bar Infrared Sensor Analog Cam In Controller Port Reset Button SD Card Slot Battery Lock Button Power Connector USB 2.0 Port A /V Out Port 2.36 Inch TFT LCD Display Record/Stop Button Battry Pack ■ Package Content ■... -
Page 3: Connecting Analog Camera
■ Connecting Analog Camera To connect analog camera, plug-in analog camera jack into CAM IN port on the device. Push REC/STOP switch to REC position to start recording Various recording mode is optional in SETTING menu. NOTE: Main device or controller automatically accesses recording status after main device or controller is turned on without lag time. - Page 4 There is a HDMI Control port at the bottom of the device. Plug-in HDMI Cable to Control port in red arrow pointed direction to connect wired controller. Switch Rec button to Rec position. Controller is ready to use to start recording instantly when it is on, and stop recording when it is off.
- Page 5 ■ Retrieving Video Footage Video file is stored in the SDHC Memory card. There are two methods to retrieve video files Using USB Cable to connect to computer Using SD card reader to read and write folder directory Computer detects the storage and user may browse and operate the storage as typical folder directory.
- Page 6 ■ PV-500LITE Connection Illustration...
