Ezviz Mini Trooper User Manual

W2s+c3a
Hide thumbs Also See for Mini Trooper:
Table of Contents

Advertisement

Quick Links

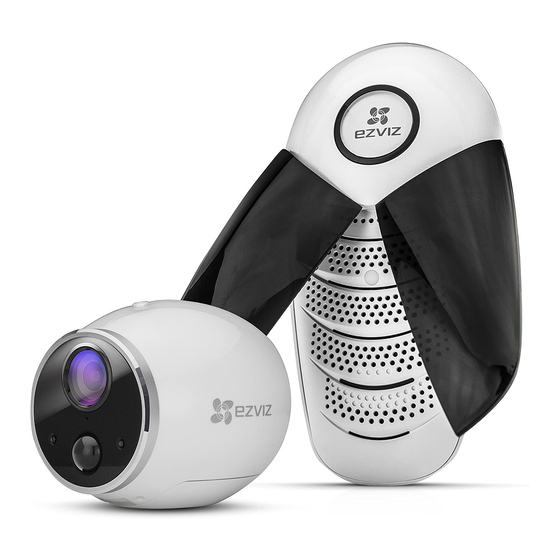

Mini Trooper
W2S+C3A

User Manual

COPYRIGHT © 2017 EZVIZ Inc. ALL RIGHTS RESERVED.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Trooper and is the answer not in the manual?

Questions and answers

Related Manuals for Ezviz Mini Trooper

Summary of Contents for Ezviz Mini Trooper

  • Page 1: User Manual

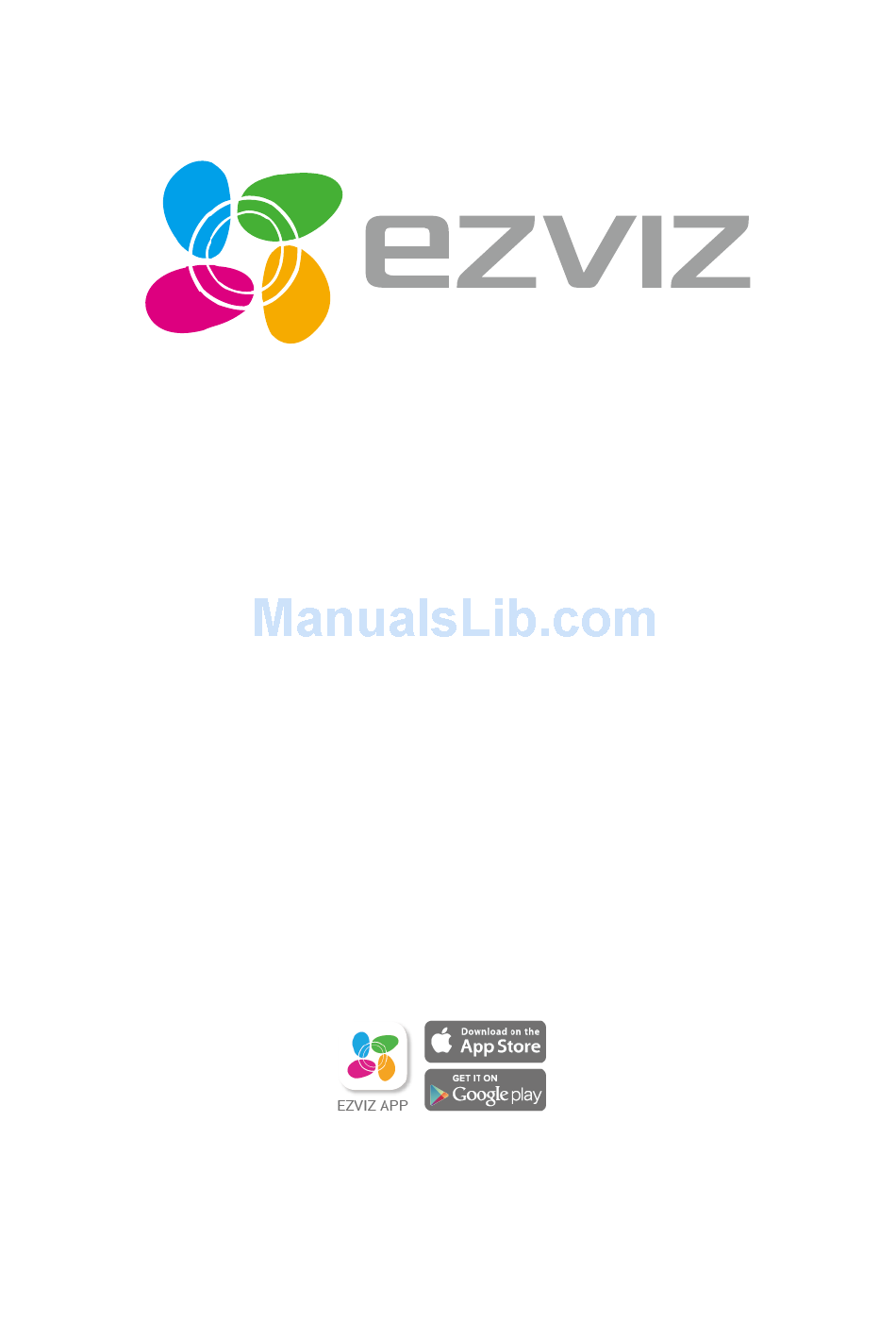

    Mini Trooper W2S+C3A User Manual COPYRIGHT © 2017 EZVIZ Inc. ALL RIGHTS RESERVED.
  • Page 2 LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE OF THE PRODUCT. EZVIZ does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested;...

  • Page 3: Regulatory Information

    Regulatory Information FCC Information This equipment has been tested and found to comply with the limits for a digital compliance: device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following: • Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only. • Keep all liquids away from the device. •...

  • Page 5: Table Of Contents

    Sync Your Cameras with the Base Station ..................11 Using EZVIZ App ........................11 Downloading EZVIZ APP ........................11 Adding to EZVIZ APP ........................... 12 Cameras Mounting ........................12 Mounting or Placing Your Cameras ....................12 Choosing a Good Videoing Position ....................12 Firmware Update ........................
  • Page 6 Configuring the Wi-Fi from Your W2S ..................22 W2S Wi-Fi Name & Password ......................23 Uplink/Local Network Settings ......................23 System Settings ........................... 23...

  • Page 7: Getting Started

    1. Getting Started Knowing Your Devices Note: For details, please refer to the Mini Trooper Quick Start Guide. Battery Installation Steps: 1. Unlock the battery cover by pushing the battery chamber latch. 2. Gently pull the battery cover back to open the compartment.

  • Page 8: Wired Connection

    Note: The LED indicator will turn green, followed by light blue and then solid blue. The device will turn on within 2 minutes. Once the LED indicator on the Base Station is a solid blue, it is ready for the next step.

  • Page 9: Wireless Relay Gateway Setup

    If the wizard does not pop up, enter the IP address (192.168.7.1) in your Web browser in the mobile devices or PC. Wireless Relay Gateway Setup Before You Start: Make sure to connect the base station to your local Wi-Fi network. Steps: Enter the IP address 192.168.7.1 in your Web browser in the mobile devices or PC.

  • Page 10: Led Status

    Choose your preferred Time Zone and select Daylight Savings Time (DST) On or Off. Choose the “Wi-Fi Relay Internet Access” option as your connection mode. Search for and choose your local Wi-Fi network and enter your Wi-Fi password. Press Connect to Network. Check your Base Station Wi-Fi settings.

  • Page 11: Sync Your Cameras With The Base Station

    When flashing blue becomes more rapid and then stops, sync is confirmed. Note: During the 2-minute Sync Mode, you can sync up to 6 Mini Trooper cameras to the Base Station at the same time. 2. Using EZVIZ App...

  • Page 12: Adding To Ezviz App

    Adding to EZVIZ APP Steps: When logged into your account on the EZVIZ App, Tap the “+” on the top right of your Home page to Scan the QR Code. Scan the QR Code on base station located on the device label, or manually enter the Serial Number.

  • Page 13: Firmware Update

    Note: You can place your camera of 300 feet from the base station. For the best detection result, make sure the motion path you desired to record does not directly head or opposite to the cameras. To be more specific, if you want to detect the motion near a door, position the camera to the side of the door rather than directly above or opposite it.

  • Page 14: Update Via App

    Update via APP If new version is available, will appear on the Home page. Steps: to enter the page bellow. Read the description and tap to upgrade Or tap to exit the upgrading page. Tap Upgrade Now to complete the process.

  • Page 15: Viewing Your Video

    Viewing the Live Video Steps: Tap the EZVIZ icon installed in your mobile device. Tap the image under the Mini Trooper model to enter the live view interface. to play the live view. Viewing the History Video (Playback) Steps: Tap the EZVIZ icon Tap the image under the Mini Trooper model to enter the live view interface.

  • Page 16: Zooming The Video

    Zooming the Video Steps: Tap the EZVIZ icon Tap the added device to enter the live view interface. to zoom. Recording Video Clips or Taking a Snapshot Steps: Tap the EZVIZ icon Tap the added device to enter the live view interface.

  • Page 17: Image Encryption

    Go to W2S interface and tap Turn on Image Encryption Turn on Image Encryption to encrypt your video for better protection. The default password is the device verification code. Steps: 1. Go to W2S interface and tap 2. Turn on Note: Tap Change Password to change the default password.
  • Page 18 If there are more than one channel under the selected device, tap the device name and tap the icon at the upper-right corner to enter the Settings interface. Tap Alarm Notification to enter the Alarm Notification interface. Tap the icon to enable Alarm Notification.
  • Page 19 Tap the icon to go back to the Notification Schedule interface and tap the icon confirm the settings. You can also slide the target item from right to left in the Notification Schedule interface to display the delete button. And tap Delete to delete the schedule. Or slide the item from left to right to hide the delete button.

  • Page 20: Reading The Alarm Message

    Reading the Alarm Message Steps: Tap the icon to enter the Message(s) interface. Tap the unread messages to view the message. Tap Edit at the upper-right corner of the interface. Tap Mark All as Read to mark all unread messages as read. Notes: •...

  • Page 21: Cloudplay

    CloudPlay is secure cloud storage that will record any footage when the cloud camera senses motion. EZVIZ uses multilayer encryption to transmit data securely, safeguard the data integrity, and protect it from unauthorized access. Cloud storage and local storage can co-exist; EZVIZ automatically duplicates the recording in both places. Having multiple backups minimizes the data loss when local storage fails or the network connection drops.

  • Page 22: Using Sd Card

    If you want to store your videos in the SD card, you should follow the steps bellow. Steps: Insert SD Card to the W2S. In the EZVIZ app, tap the Storage Status in the Device Settings interface to check the SD card status If the memory card status displays as Uninitialized, tap to initialize it.

  • Page 23: System Settings

    Note: For the first time access: please refer to Wireless Relay Gateway Setup. W2S Wi-Fi Name & Password Go to Network Settings > Wi-Fi Settings to set. Uplink/Local Network Settings Go to Network Settings > Uplink Network Settings/Local Network to set. System Settings For Login password, system upgrade, reboot and recovery, system time settings and W2S light setting, please go to Network Settings >...
  • Page 25 UD08392B...
