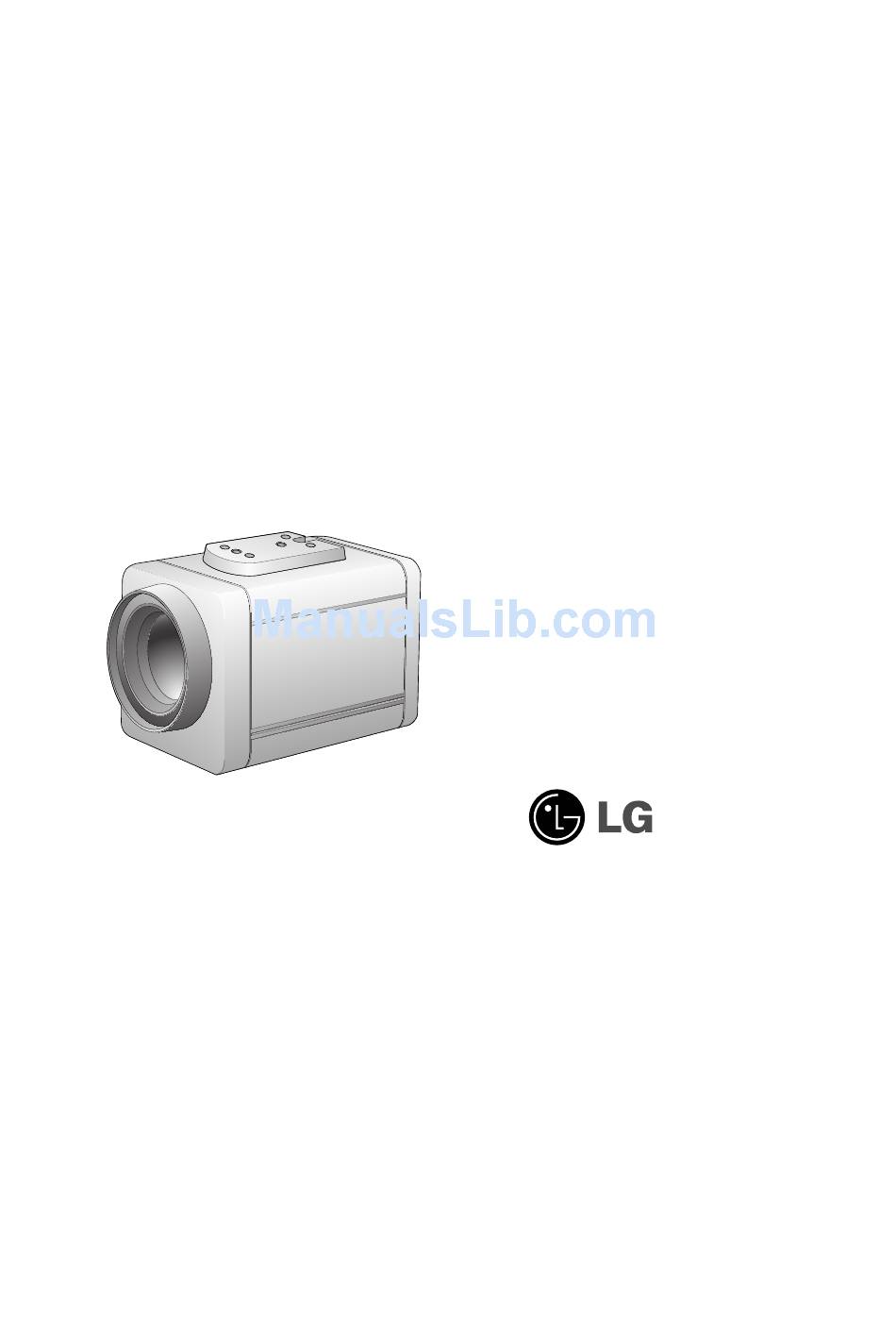

Page 1: Operating Instructions
Operating Instructions LVC-A730NP (PAL, Normal) LVC-A730HP (PAL, High) LVC-A730NM (NTSC, Normal) LVC-A730HM (NTSC, High) Before installing and using the camera, please read these instructions thoroughly and retain them for later reference. - Page 2 Warning CAUTION To prevent fire or shock hazard, do not expose the unit to rain or moisture. RISK OF ELECTRIC SHOCK DO NOT OPEN To avoid electrical shock, do not open the cabinet Refer servicing to qualified personnel only. Wiring methods shall be in accordance with the National Electric Code, CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, ANSI/NFPA 70.
-
Page 3: Table Of Contents
Contents Features...........................3 Cautions for Safe Operation .....................4 Operating Controls and Their Functions..................5 Power IN/CONTROL .......................6 Setting The Menu .......................7-13 On-Screen Display ......................14-15 Specifications ........................16-17 FEATURES The power zoom color video camera is designed for use in monitoring system. High resolution and high sensitivity with a 1/4 inch CCD (Charge Coupled Device) ■... -
Page 4: Cautions For Safe Operation
Cautions for Safe Operation Power Supply Where it is exposed to rain ■ This camera must always be operated a 12V Where it is subject to strong vibration ■ DC UL Listed, Class 2 Power Supply only. Close to generators of powerful electromagnetic ■... -
Page 5: Operating Controls And Their Functions
Operating Controls and Their Functions Control names and Functions 1. Tripod adaptor This adaptor can also be attached on the bottom of the camera. 2. Lens mount cap 3. When push the TELE KEY, picture is telephoto 4. When push the WIDE KEY, picture is wide angle 5. -
Page 6: Power In/Control
POWER IN/CONTROL You can adjust focus and zoom by a pin terminal on the back side of the camera. Description Color * PIN NO. R X D Green T X D White External Key input (A/D IN) Brown(Blue) Yelllow Black Power input (DC 12V) * is the color of the cable.(If it is offered) A/D IN... -
Page 7: Setting The Menu
Setting The Menu • The On Screen Display menu can be used by MENU, MENU 1 TELE, WIDE, F.NEAR(F(+)), F.FAR(F(-)) Key. INITIAL SET BACKLIGHT Menu 1 COLOR NEGATIVE FOCUS PUSH AUTO 1. INITIAL SET FLICKERLESS Set the initial mode ON, the changed data are renewed. WBC MODE AUTO 2. - Page 8 4. NEGATIVE MENU 1 Use for changing NEGATIVE and POSITIVE mode. INITIAL SET BACKLIGHT • ON: NEGATIVE mode, • OFF: POSITIVE mode COLOR NEGATIVE 5. FOCUS FOCUS PUSH AUTO AUTO/MAN: Set the focus mode to Auto or Manual. FLICKERLESS PUSH AUTO: Set the focus mode to Push Auto mode. WBC MODE AUTO 6.
- Page 9 7. WBC MODE • AUTO: WB Range 2800°K ~ 8000°K • SPECIAL(SWB): Under the special WB condition (Differ from curve of the control color temperature), Adjust Red and Blue to perform a desired Auto White Balance. WBC MODE SPECIAL WBC MODE SPECIAL RED ADJUST RED ADJUST...
- Page 10 • MANUAL( ): Hue control adjustment is available manually. Adjust MWB CONTROL to a desired value. WBC MODE MANUAL WBC MODE MANUAL MWB CONTROL MWB CONTROL MWB CONTROL Set the WB mode is MANUAL mode Adjust the MWB CONTROL The whole MENU is displayed using using F(+) or F (-) key code.
- Page 11 Menu 2 MENU 2 8. CAMERA ID CAMERA ID To connect a large number of camera, It can be assigned to SHARPNESS identification number to each camera control easily (OFF, 1~255 : BRIGHTNESS total numbers of ID are 256). ZOOM START CAUTION: To transfer ID code of camera , set the ID number of ZOOM END x128...
- Page 12 14. AE MODE In the situation is unadjustable exposure, AE mode support to make a fit exposure. • AUTO: Use to compensate the exposure automatically. • SHUTTER: Use to change the Shutter Speed control. In this time, AE mode act automatically (8 steps control is available).
- Page 13 • MANUAL: Use to set the shutter speed, IRIS and AGC manually. AE MODE MANUAL AE MODE MANUAL SHUTTER NORMAL SHUTTER NORMAL SHUTTER NORMAL IRIS ADJUST IRIS ADJUST IRIS ADJUST AGC ADJUST AGC ADJUST The whole MENU is Set the AE mode is MANUAL Adjust the SHUTTER Adjust the IRIS ADJUST to to a desired value.
-
Page 14: On-Screen Display
On-Screen Display Some of these functions will FUNCTION OSD Format Description be displayed every time the 1 Focus Mode Non display Focus Auto Mode camera is operated and then ☞ Focus Manual mode disappeared after 5 seconds. 2 Back Light Non display Back Light OFF Back Light ON... - Page 15 On-Screen Display FUNCTION OSD Format Description 6 WBC Mode Non display White Balance AUTO Special Auto White Balance; Adjustment Mode according to change of external illuminant. RED ADJUST and BLUE ADJUST (0~255) are available. After changing R/B value, the maintenance mode is “AUTO”. WB Preset for INDOOR (3200°K) Wb Preset for OUTDOOR (5100°K) Manual WB Adjustment;...
-
Page 16: Specifications
Specifications Image device 1/4" interline transfer CCD NTSC, High resolution : 380,000 NTSC, Normal resolution : 250,000 PAL, High resolution : 440,000 PAL, Normal resolution : 290,000 Sync system Internal sync Horizontal resolution Approx.450 Line (NTSC, High resolution) 320 Line (NTSC, Normal resolution) 450 Line (PAL, High resolution) 320 Line (PAL, Normal resolution) (at center of screen) - Page 17 Specifications Power requirement 12V DC UL Listed, Class 2 Power Supply only Video output BNC-type, S-Video-type (1.0Vp-p, 75ohms) Power consumption Max 4.7w operating temperature C ~ 50 Operating Humidity 0%~80% Storage temperature C to+60 Dimensions 59.4mm(W) x 61.2mm(H) x 95mm(D) Specifications are subject to change without notice.
- Page 18 P/NO.: 3834RC0018J...
