- Page 1 Demonstration Board EPC9022/23/24/25/27/28/29/30 Quick Start Guide Half Bridge with Gate Drive for EPC8000 Family...

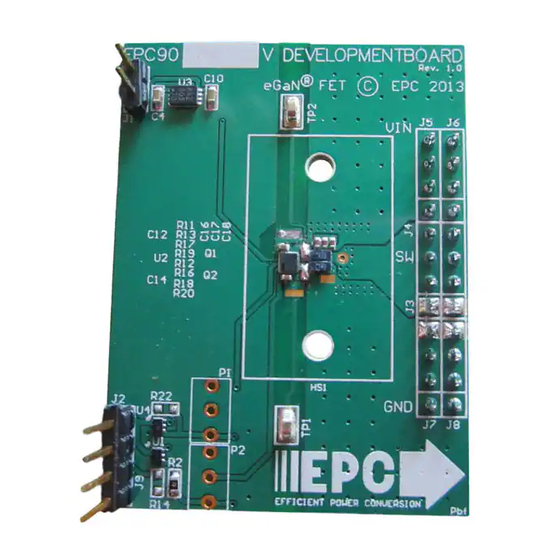

- Page 2 For more information on the EPC8000 family of eGaN FETs, please into any existing converter. refer to the datasheets available from EPC at www.epc-co.com. The The development board is 2” x 1.5” and contains two eGaN FETs in a datasheet should be read in conjunction with this quick start guide.
-
Page 3: Quick Start Procedure
5. Turn on the gate drive supply – make sure the supply is between 7 V and 12 V range. 6. Turn on the bus voltage to the required value (do not exceed the absolute maximum voltage on V as indicated in the table below: a. EPC9022, 65 V d. EPC9025, 65 V g. EPC9029, 65 V b. - Page 4 7 V – 12 V – Gate Drive Supply Gate Drive Supply Half-Bridge with Bypass Regulator Gate Drive Supply (Note Polarity) LM5113 Logic and Gate Dead-time Input <28 V Driver Adjust Switch Node Supply – – (For E ciency External Circuit Measurement) PWM Input Figure 1: Block Diagram of Development Board...
- Page 5 Board Number Item Reference Part Description Manufacturer / Part # C16, C17, C18 Capacitor, 0.01uF, 20%, 100V, X7R TDK, C1005X7S2A103M050BB EPC9022 Capacitor, 1uF, 10%, 100V, X7R TDK, CGA4J3X7S2A105K125A Q1, Q2 eGaN® FET EPC8002 C16, C17, C18 Capacitor, 0.01uF, 20%, 100V, X7R...
- Page 6 7 - 12 Vdc CON2 1uF, 25V 1uF, 25V 1uF, 25V MCP1703 Keystone 5015 CON4 VDD 6 28V Max CON2 CON4 CON2 NC7SZ00L6X See Table 22nF, 25V Optional Zero 100nF, 25V Opt. CON4 LM5113TME SW OUT 1uF, 25V See Table NC7SZ08L6X SDM03U40 CON4...
- Page 7 Demonstration Board Notification The EPC boards are intended for product evaluation purposes only and is not intended for commercial use. As an evaluation tool, it is not designed for compliance with the European Union directive on electromagnetic compatibility or any other such directives or regulations. As board builds are at times subject to product availability, it is possible that boards may contain components or assembly materials that are not RoHS compliant.
