IQ DOORBELL QUICK INSTALL GUIDE
OVERVIEW
The IQ Doorbell is a great way to make the home' s existing doorbell unit "smarter". The IQ Doorbell
wires effortlessly into an existing door bell using the included pre-stripped leads, and can support up
to two separate doorbells, like the front and back door. Because each doorbell learns in as two
different zones, you can program custom chimes and rules for each.
WIRING DIAGRAM
RED WIRE - FRONT
BLACK WIRE - TRANS
WHITE WIRE - REAR
This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)

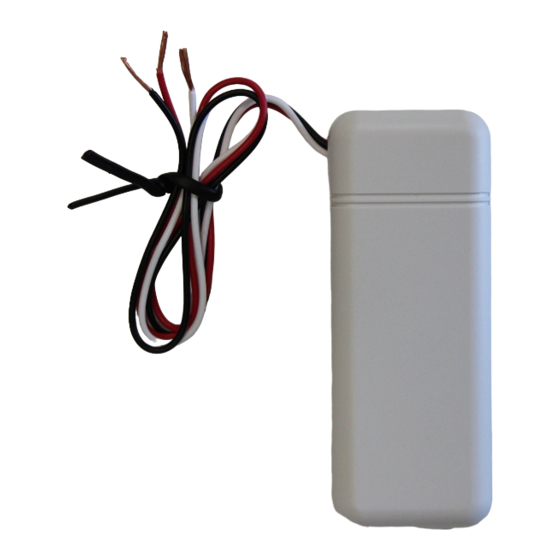

IQ Doorbell
QS1119-840
SPECIFICATIONS
Sensor: 2.5"H x 1"W x .5"D
Wireless signal range: 600ft (200M), open air.
Code outputs: tamper, tamper restore, alarm, alarm
restore, low battery.
Transmitter frequency: 319.5 MHz
Unique code ID
Supervisory keep-alive interval: 70 minutes.
RF Peak field strength: typical 36000 uV/m at 3m
Operating Temperature: -10C~50C
Relative Humidity: 5-95% Non-Condensing
Storage Temperature: -40-80C
Replace battery with exact replacement every 5 years
with 3V Lithium (x2).
(2) -Panasonic CR2032
-Energizer CR2032
-Duracell DL2032
