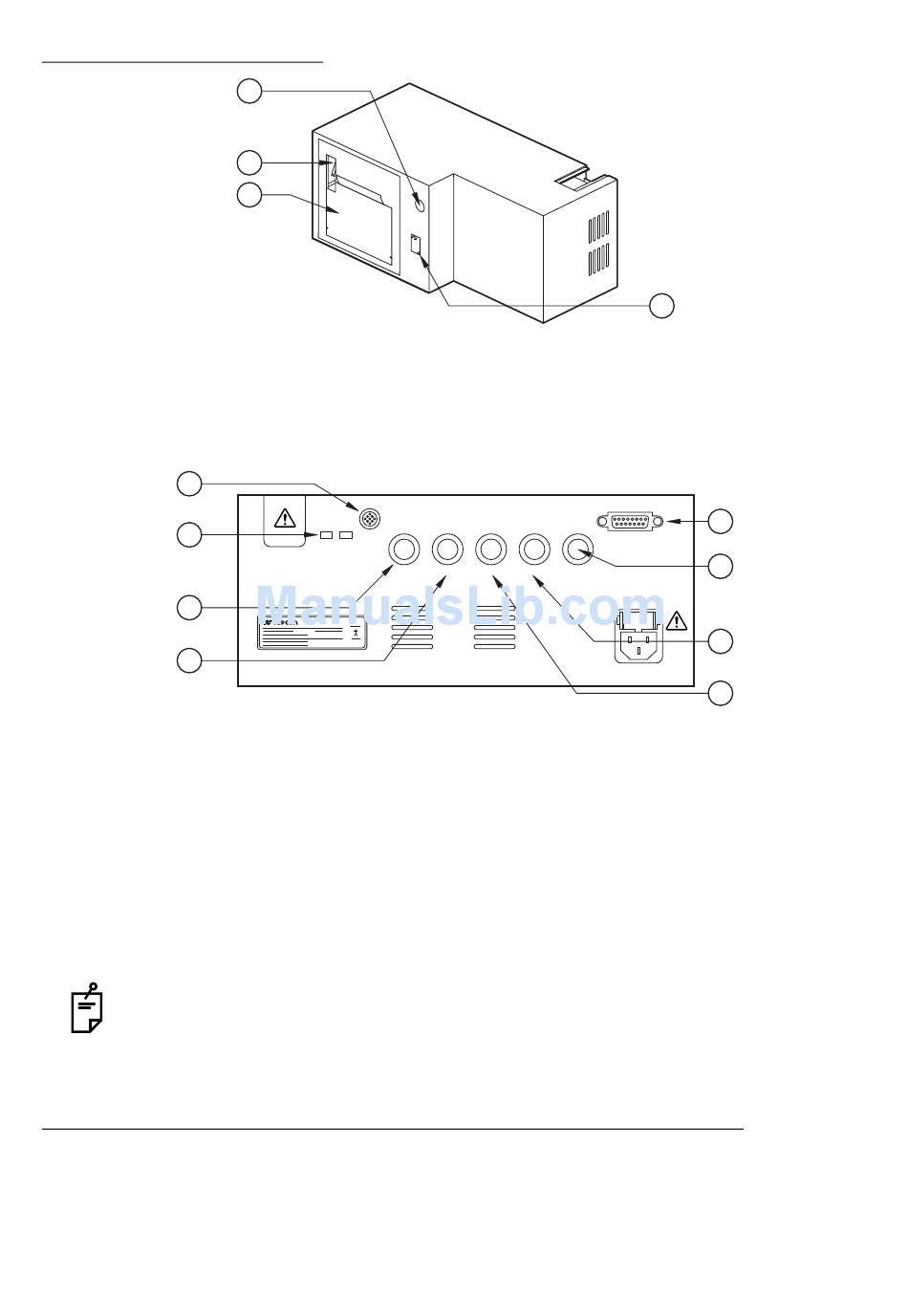

CV POWER SUPPLY UNIT

(18) Connector for connecting KB .. Used to connect the CV 1 Dial Controller.
(19) Cover switch ........................... Opens the printer cover.
(20) Printer cover
(21) Power switch
22
23
24
25
(22) Connector for connecting KB .. Used to connect the CV 1 Dial Controller.
(23) USB connector........................ Used to connect any USB device such as an external
(24) COM port connector................ Used to connect a computer.
(25) CL port connector ................... Used to connect a lens meter.
(26) Connector for the CV
instrument ............................... Used to connect the CV instrument.
(27) ACP/MC port connector .......... Provided for the extended optical emitting unit.
(28) MC (SERIAL) .......................... Used to connect the chart device for serial application.
(29) RM port connector .................. Used to connect the auto refractometer.
Connect the device complying with UL60950/UL60950-1, UL60601-1 or IEC60950/
IEC60950-1 to the CV power supply unit and 1 Dial Controller KB-50. Ask the service-
man to connect the device.

COMPOSITION OF PARTS WHICH CONTACT THE HUMAN BODY

Forehead rest: Polypropylene resin (Type B applied part)
Face shield
: Polypropylene resin
18
19
20
KB
USB
USB
COM
printer.
CL
RM
MC(SERIAL)
ACP/MC
COMPONENT NAMES AND FUNCTIONS
21
26
CV
27
28
29
11
