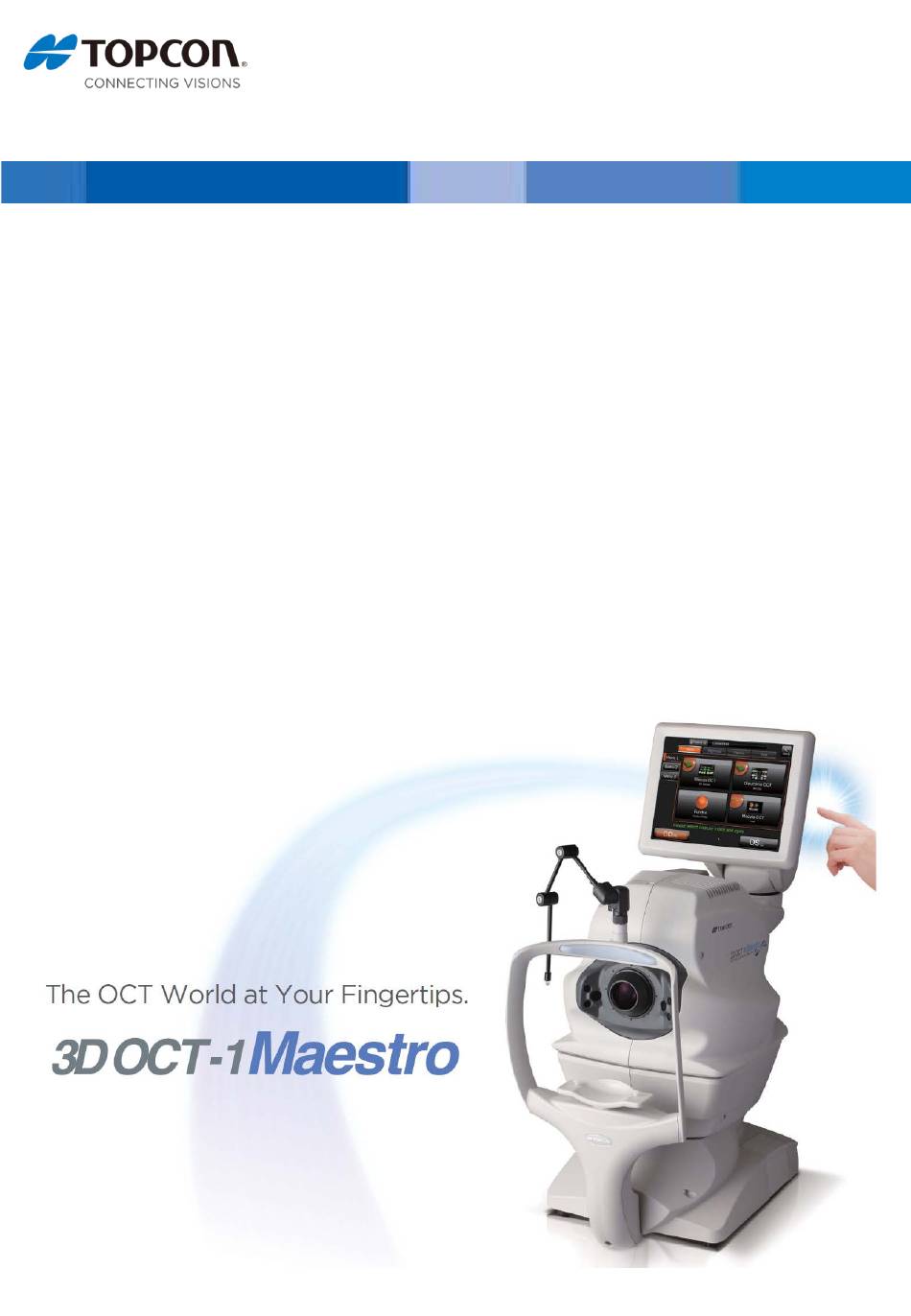

- Page 1 3D OCT-1 Maestro Ver.8.11 Quick Reference Guide...
- Page 2 Index Select Patient Capturing OCT Manual mode Anterior segment scanning Fundus photography P.11 Peripheral Fundus Photography P.12...
- Page 3 Select patient Double click on desktop, and start OCT. 【In case of new patient】 Click [Register New Patient] and access to register patient panel. Input the necessary items and click [Register]. [patient ID] is mandatory. What data should be the essential can be fixed in setting menu.
- Page 4 Capturing OCT Select the eye to capture OD(Right), OU (both) or OS(Left). Select one of the scans in the Capture icons menu on OCT monitor. SETUP MENU Capture Icons It is possible to change the tab name, scan patterns (max 4 a tab), scan protocols, in [SETUP].
- Page 5 Auto alignment Auto Focus Auto Optimize Auto shoot （no operation is needed) If the below messages are displayed, check the patient condition. [Please stabilize the fixation] [Please open patient’s eye] Touch [Retry] between [Retry / Manual], and re-start auto alignment. Please see P.5 manual operation.
- Page 6 Manual mode It is possible to adjust alignment (scanning beam position) manually. Touch the pupil center each in Camera 1 and Camera 2, Touch [Capture START], then auto focus / auto shoot will work. It is possible to adjust scan position etc. Manual alignment is available in 3 fields.
- Page 7 Touch the live fundus window, the below scan position adjustment is available. Once all green frames are displayed, touch [Capture START]. It is possible to change scan positions by up/down/L/R button. Scan line can be moved directly by touch and drug.
- Page 8 Anterior segment scanning Touch one of Anterior Segment Scanning icons. For angle scanning For cornea curvature observation Touch “Yes” on attention window, and place the forehead rest attachment. Adjust the chinrest height. Be careful to have eye surface behind the forehead rest. Have the chin stay down In case of radial scan, please navigate the patient to look...
- Page 9 In case of Radial scan, Auto Alignment works. When Auto Alignment fails, go to step 【Radial scan】 When Auto Alignment succeed, the cornea B scan is already in the window. When it fails, please adjust the alignment position, and Z position. Once you have all green frames, touch [Capture Start].
- Page 10 【Line scan】 Navigate the customer to see side so that the angle comes in center. Please touch [Capture Start] when all green frames are displayed. “Up” “Down” button will move the camera distance to patient. If you do not see the line, touch “UP”...
- Page 11 Fundus Photography Touch the OCT screen, and select [ Fundus Photo]. Adjust the chinrest height, and touch [Capture START]. Auto focus and auto shoot work. Color fundus photo is done automatically. With touching the [Capture STOP], the screen will be switched to the manual mode where it is possible to change internal fixation target position.
- Page 12 Peripheral Fundus Photography Touch [Peripheral Photo] icon. Select the internal fixation position and adjust the chinrest height. Auto focus, auto shooting works. Peripheral photo is done automatically. Touch [OK] to change next fixation target automatically. Panorama imaging requires the external software.
