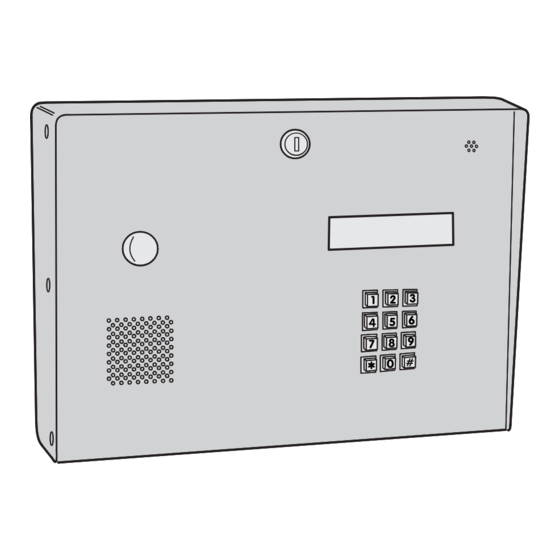

- Page 1 AE-1 Telephone Entry Control Console Facility Manager’s Programming Guide (760) 438-7000 • FAX (760) 438-7043 USA & Canada (800) 421-1587 & (800) 392-0123 Toll Free FAX (800) 468-1340 www.linearcorp.com...
-
Page 2: System Operation
In addition to the telephone entry, the AE-1 can grant access using various remote devices that are commonly used. These devices include wireless transmitters, proximity receivers, swipe card readers and remote keypads. -
Page 3: Keypad Functions
NOTE: The following keypad functions pertain to the black [#] Key AM/II keypad inside the AE-1, not the chrome entry keypad The [#] key is used as a shift key to activate special system on the face of the AE-1 unit. -
Page 4: System Programming
A R R O W S W I L L Enter Single Xmtr Numb Learning Transmitters AM/II keypad inside the AE-1, not the chrome entry keypad Enter Xmtr. ID: 000 Transmitter ID: = 0001 M O V E B E T W E E N... - Page 5 AREA 01 SINGLE TRANSMITTER PROGRAMMING Area 01 is used to enter, suspend, reactivate, delete, and check the status of single transmitters. A validation group can be selected for each transmitter when it’s entered into memory. AREA 01 SINGLE TRANSMITTERS 1.1A Learn Single Xmtr(s) Select Validation Group.
- Page 6 AREA 02 BLOCK TRANSMITTERS Area 02 is used to enter, suspend, reactivate, delete, and check the status of block coded transmitters. A validation group can be selected for each transmitter block when it is entered into memory. AREA 02 BLOCK TRANSMITTERS 2.1A Enter Block Xmtr(s).
- Page 7 AREA 05 ENTRY CODES Area 05 is used to enter, suspend, reactivate, delete, and check the status of keypad entry codes. A validation group can be selected for each entry code when it is entered into memory. AREA 05 ENTRY CODES Select Validation Group.
- Page 8 AREA 06 BLOCK CARD CODES Area 06 is used to enter, suspend, reactivate, delete, and check the status of swipe cards entered as a block. A validation group can be selected for each card block when it is entered into memory. AREA 06 BLOCK CARD CODES 6.1A...
- Page 9 Use [ ⇑ ] or [ ⇓ ] to scroll to “Enter Directory Code”. Enter the tenant’s directory code number and press [OK]. (This will be the number displayed on the AE-1 that the guest enters to make the unit dial the tenant.) Enter the tenant’s name (up to 24 characters, but only the first 16 can...
- Page 10 TELEPHONE ENTRY DIRECTORY CODE LOG TELEPHONE ENTRY DIRECTORY LOG SHEET (PHOTOCOPY BEFORE USING IF ADDITIONAL SHEETS ARE REQUIRED) TENANT NAME TELEPHONE TENANT NAME TELEPHONE TELEPHONE TELEPHONE ENTRY ENTRY (LAST, FIRST) NUMBER (LAST, FIRST) NUMBER...
- Page 11 ENTRY MEDIA CODE LOG MEDIA ID NUMBER LOG SHEET (PHOTOCOPY BEFORE USING IF ADDITIONAL SHEETS ARE REQUIRED) ENTRY CODE, ENTRY CODE, CARD NUMBER, CARD NUMBER, SINGLE OR SINGLE OR USER NAME USER NAME BLOCK BLOCK ACCESS MEDIA ACCESS MEDIA TRANSMITTER TRANSMITTER ID NUMBER ID NUMBER...
-
Page 12: Linear Limited Warranty
LINEAR LIMITED WARRANTY This Linear product is warranted against defects in material and workmanship for twelve (12) months. The Warranty Expiration Date is labeled on the product. This warranty extends only to wholesale customers who buy direct from Linear or through Linear’s normal distribution channels.
