Moxa Technologies NPort IA5150 Quick Installation Manual

NPort IA5150/5250 Series
Quick Installation Guide
Fourth Edition, September 2008
1. Overview
NPort IA device servers deliver easy and reliable serial-to-Ethernet
connectivity for the industrial automation market. The servers support
several operation modes—TCP Server, TCP Client, UDP, Real COM,
Pair Connection, and Ethernet Modem—ensuring the compatibility of
network software, and are an ideal choice for connecting
RS-232/422/485 serial devices, such as PLCs, sensors, meters, motors,
drives, barcode readers, and operator displays. NPort IA device servers
come with a compact and rugged DIN-Rail mountable casing.
2. Package Checklist
Before installing NPort IA device servers, verify that the package
contains the following items:
• 1 NPort IA Series Device Server
• Documentation and Software CD
NPort IA Series Quick Installation Guide
Optional Accessories
DR-4524 45W/2A DIN-Rail 24 VDC Power Supply with
universal 85 to 264 VAC input
DR-75-24 75W/3.2A DIN-Rail 24 VDC Power Supply
with universal 85 to 264 VAC input
DR-120-24 120W/5A DIN-Rail 24 VDC Power Supply with
88 to 132 VAC/176 to 264 VAC input by switch
Notify your sales representative if any of the above items is missing or
damaged.
3. Hardware Introduction
NPort IA device servers are used to control RS-232/422/485 devices
for industrial automation environments. Six of the models have 1
RS-232/422/485 serial port. NPort IA5150, NPort IA5150I, NPort
IA5150-M-SC, NPort IA5150I-M-SC, NPort IA5150-S-SC, and NPort
IA5150I-S-SC have 1 male DB9 port for the RS-232 interface, and a
5-pin terminal block for the RS-422/485 interface (only one port can be
used at a time). One model has 2 RS-232/422/485 serial ports. NPort
IA5250 has two male DB9 ports for all interfaces.
— 1 —

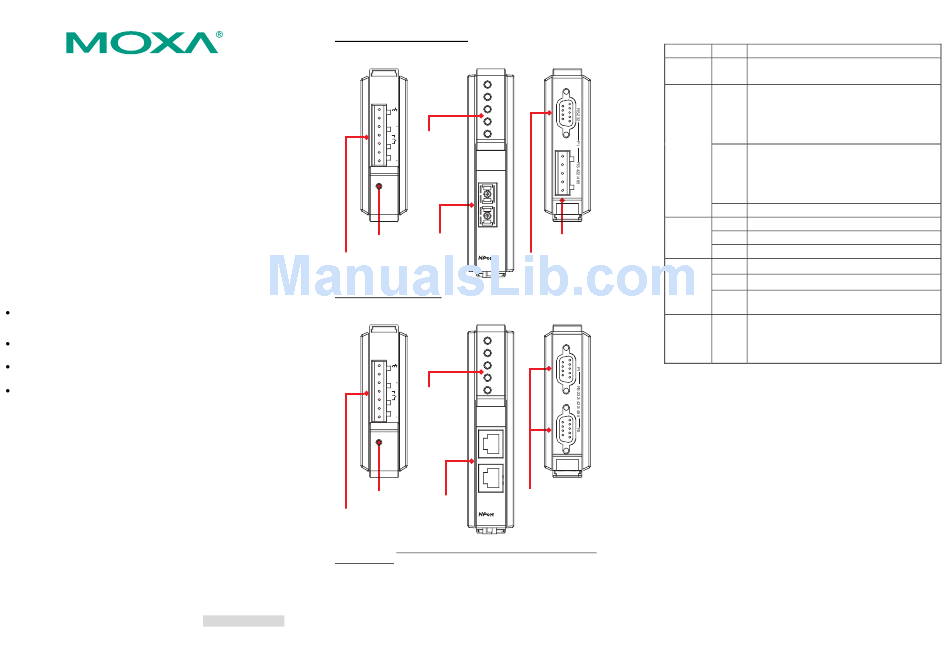

NPort IA5150 Series Appearance
Top View
Reset
Dual power input
and relay output
NPort IA5250 Appearance
Top View
Reset
Dual power input
and relay output
Reset Button—Press the Reset button continuously for 5 sec to load
factory defaults: Use a pointed object, such as a straightened paper clip or
toothpick, to press the reset button. This will cause the Ready LED to
blink on and off. The factory defaults will be loaded once the Ready LED
stops blinking (after about 5 seconds). At this point, you should release
the reset button.
P/N: 1802051500211
Front View Bottom View
PWR1
PWR2
1
RDY
V2+
P1
V2
FX
LED
Indicators
V1+
V1
Reset
Fiber optic
RS-422/485
Ethernet
IA
RS-232
5150-M-SC
Front View Bottom View
PWR1
PWR2
1
RDY
V2+
P1
V2
P2
LED
Indicators
V1+
V1
Reset
Ethernet 1
Ethernet 2
RS-232/422/485
Copper
Ethernet
IA
5250
— 2 —
NPort IA LED Indicators (front panel)
Name Color Function
Power is being supplied to power input PWR1,
PWR1,
red
PWR2
PWR2.
Steady on: Power is on and NPort IA is booting
up.
red
Blinking: Indicates an IP conflict, the DHCP
or BOOTP server did not respond
properly, or a relay output occurred.
Ready Steady on: Power is on and NPort IA is
functioning normally.
green
Blinking: The device server has been located
by Administrator's Location
function.
off Power is off, or a power error condition exists.
Orange 10 Mbps Ethernet connection.
Ethernet
Green 100 Mbps Ethernet connection.
off Ethernet cable is disconnected, or has a short.
orange Serial port is receiving data.
green Serial port is transmitting data.
P1, P2
No data is being transmitted or received through
off
the serial port.
Steady on: Ethernet fiber connection, but port is
idle.
FX orange
Blinking: Fiber port is transmitting or
receiving data.
4. Hardware Installation Procedure
STEP 1: After removing NPort IA from the box, the first thing you
should do is connect the power adaptor. Connect the 12-48
VDC power line with NPort IA's terminal block, or connect
the DIN-Rail power supply with NPort IA's terminal block.
STEP 2: Connect NPort IA to a network. Use a standard
straight-through Ethernet cable to connect to a Hub or
Switch. When setting up or testing NPort IA, you might find
it convenient to connect directly to your computer's Ethernet
port. In this case, use a cross-over Ethernet cable.
STEP 3: Connect NPort IA's serial port to a serial device.
STEP 4: NPort IA is designed to be attached to a DIN-Rail or
mounted on a wall. The two sliders on NPort IA's rear panel
serve a dual purpose. For wall mounting, both sliders should
be extended. For DIN-Rail mounting, start with one slider
pushed in, and the other slider extended. After placing the
NPort IA on the DIN-Rail, push the extended slider in to
lock the device server to the rail. The two placement options
are illustrated in the accompanying figures.
