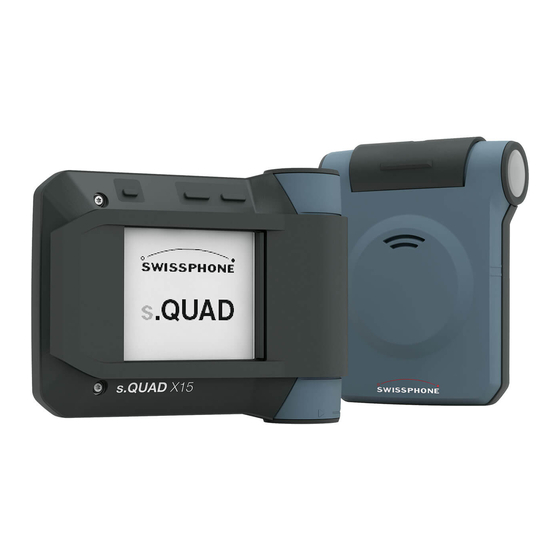

SwissPhone s.QUAD Voice User Manual

User Manual
s.QUAD Voice
1. Introduction
Congratulations on your new Swiss-
phone receiver! When you purchased
the new s.QUAD, you chose a top-
range device. The s.QUAD delights
with its optimum combination of
user-friendly design, high carrying
comfort and top quality. It offers easy
operation via four buttons and a
graphical display.
The s.QUAD can be custom config-
ured. For this reason, some of the
functions described in this brief op-
erating manual may be missing on your device.
This brief operating manual provides important information that
will help you get the most out of your device. Always keep this
manual ready to hand.
We wish you success in using the s.QUAD.

2. Getting started

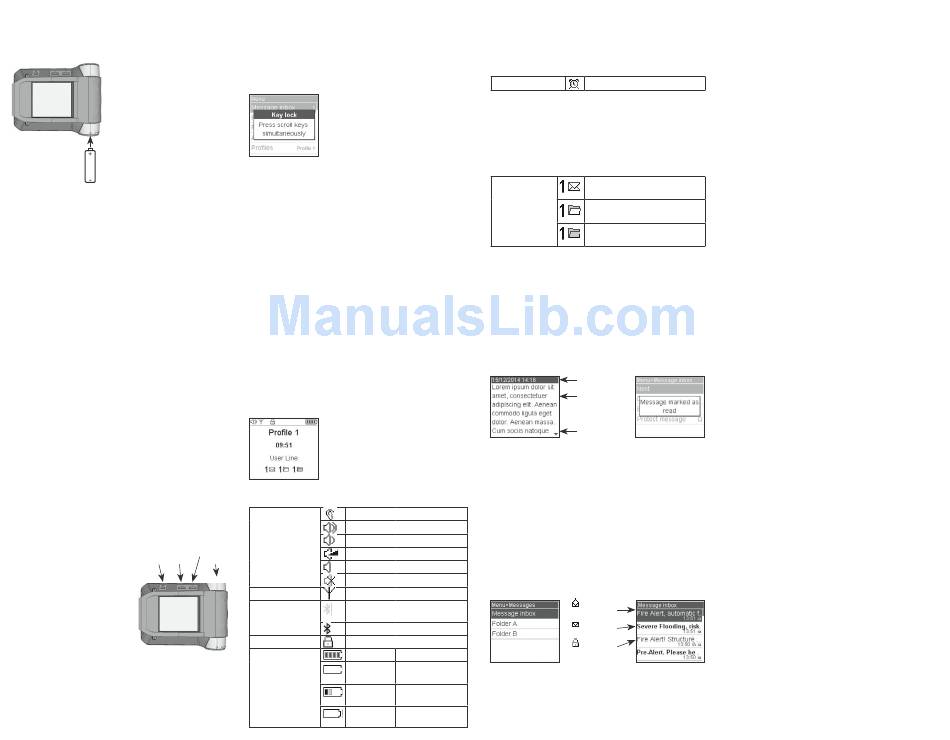

Insert power source
The s.QUAD works with either a dry cell battery or a rechargeable
battery. Insert the power source into the s.QUAD, making sure that
you observe correct polarity. The s.QUAD will turn on automa-
tically. A functional test is then performed. After the test, please
specify whether you have inserted a dry cell battery or a recharge-
able battery. The device is now ready for operation.
Further information on the power supply can be found in the chap-
ter 'Charging the battery/power supply'.
Turn on
To manually turn on the s.QUAD, you must press and hold one of
the four buttons until the start screen or start text appears on the
display. The home screen is visible after a few seconds and the
s.QUAD is ready for operation.
3. Button function and navigation
FORWARD OK confirmation
BACK navigation
button navigation button button
– Scroll backwards – Scroll forward in – Read messages
in the menu the menu – Confirm and ac-
– Change settings – Change settings knowledge alert
– Confirm menu
– Display the start – Display the sec-
screen or start text ondary menu selection
by holding the – Call up the last
button message received
FORWARD
ESC BACK
ESC button
– Leave the current menu level
– Go to the home screen
by holding the button
Open user menu
The BACK and FORWARD navigation buttons allow you to switch
from the home screen to the user menu. Press the FORWARD button
to navigate to the next menu item, the BACK button to navigate back
to the previous item. To confirm a selection you have made or a
changed value, press the OK button. Each press of a button acti-
vates the backlight. By pressing the 'OK' button from the home
screen, you can call up the last received message from the memory.
Back to home screen
Press the ESC button to go to the next higher menu level. If you
hold down the ESC button for two seconds, you return from the
submenu to the home screen. If you do not press any of the buttons
for a pre-configured time interval, the s.QUAD automatically re-
turns to the home screen.
Release key lock (if activated)
To release the key lock, press the two navi-
gation buttons BACK and FORWARD simul-
taneously.
Start-up image/Start-up text
If you hold down the BACK navigation button in the home screen,
the start-up image or start-up text appears.
Belt Mode
Belt Mode may be activated using the programming software.
Once enabled, BACK and FORWARD get new functionality: Pressing
FORWARD once will announce the current profile and alert type.
Pressing FORWARD repeatedly cycles trough up to eight profiles. If
you press and hold FORWARD, the secondary menu will be opened.
Pressing BACK will announce the current volume level. Repeated-
ly pressing BACK will decrease the volume until the alert type is
silent. To increase volume, press and hold BACK until your desired
Volume level is announced.
Secondary menu
If you hold down the FORWARD navigation button in the home
screen for two seconds, you reach the secondary menu (only if
configured in the menu). Functions that are seldom used can be
placed on a second menu level (secondary menu) in order to
declutter the main menu. When you leave the secondary menu, the
device automatically returns to the start screen.
4. Display
The home screen is divided into five sections:
1 line: Status line
st
2 line: Profile
nd
3 line: Time, alarm clock
rd
4 th line: User line
5 th line: Notification line (unread mes-
sages, charger masks and so on)
Status line
The following symbols may be displayed in the status line:
Alert type Monitor alert
Loud alert
Quiet alert
Ascending alert
OK
Discrete alert
Silent alert
Out of range display
No reception of alert messages
Bluetooth Bluetooth turned on, but not connected
with a device
Bluetooth is connected with a device
Key lock Key lock is activated
Battery level Display
Flashing
empty battery
Charging
animation
Flashing
Profile display
This line indicates the currently selected profile.
Time/alarm clock
This line shows the time. You can also see whether the alarm
clock is activated.
Alarm clock
User line
A user-specific text is displayed.
Notification line
This line shows the charger mask and the programming mask. If
there are unread (unacknowledged) messages in the memory, the
folder information is displayed.
Folder information
5. Processing alerts/messages
Receive and read new messages
When your s.QUAD receives a message, an alert occurs through
sound, vibration and illumination of the OK button, followed by the
voice announcement. By pressing the OK button, you can stop the
alert. The header (timestamp) shows the message date, message
time and address name. If you now press the BACK navigation
button, the header is displayed in full. A predefined 'Fixtext' may
be displayed with each alert. In case a Hybrid-Alert including text
was received, the message-text follows the fixtext. The down-
ward-pointing arrow indicates that there is more text.
You can use the OK button or the FORWARD navigation button to
scroll to the end of the message.
The message is marked as read as soon as you reach the end.
Listen to announcement again
To listen to the announcement again, you simply need to press the
OK button from the home screen. Playback of the announcement
will begin automatically. Announcements can also be played di-
rectly from the message inbox, depending on the configuration.
Message storage
The messages are stored in the message inbox or in the
appropriate folder. They are stored chronologically in a list.
Unread or protected messages are marked in the list. Unread
messages are also indicated in the home screen.
Battery full, ¾, ½, ¼
Please charge the
battery!
Battery is charging
Wrong or faulty power
source
Protect/delete messages
The 'Protect message' function allows you to protect a read mes-
sage. To delete a message, select 'Delete message'. The 'Empty
folder' function lets you delete all messages in the list.
Lock messages or folders with a PIN
The 'Lock message' function allows you to lock a message. To be
Alarm clock function is activated
able to read a locked message, you must first enter the corre-
sponding PIN code. Similarly, you can use the 'Lock folder' func-
tion to protect an entire folder with a PIN code. You can also spec-
ify that messages in a folder should be automatically locked after
a timeout. After this timeout, you will need to enter the
corresponding PIN to be able to read these messages.
Alert reminder
If your device was configured to use an alert reminder, you will be
reminded of unread messages after the preset time. The alert
Number of unread messages in the
reminder is turned off as soon as you have read all messages.
message inbox
Number of unread messages in

6. Main menu

message folder A
When you press the FORWARD navigation button, the device
Number of unread messages in
switches from the home screen to the main menu. You can use
message folder B
the FORWARD and BACK navigation buttons to navigate to the
individual menu items. To open a selected menu item, press the
OK button. To leave the main menu or to go to the next higher
menu, press 'ESC'.
Main menu
• Alerting
• Switch off
• Settings
• Read last/
unread message
• Messages
Header
(timestamp)
Fixtext
• Message inbox
• Folder A, B
End of message
not reached
• Profiles
The menu can be freely configured using the programming soft-
ware. Therefore, your menu on the device may differ consider-
ably from the menu described here. Details regarding the pro-
gramming of the various menu items can be found in the
programming software manual.
7. Alert
You can select the following types of alert in the 'Alerting' menu:
• Loud
• Quiet
• Ascending
Read
• Discrete
message
Unread
message
• Silent
Protected
message
• Monitor
See the chapter 'Alerting'
Switch off device
This menu contains various settings for
the device (see the chapter 'Settings').
The last message or all unread
messages can be read at any time by
pressing the OK confirmation button.
Here you can manage the message
folders (message inbox, folder A,
folder B).
Manage or read messages
(naming may differ)
Manage or read messages in the
message folders (naming may differ)
Selection of one of the pre-programmed
profiles
The alert pattern is played based on your
programming.
The alert pattern is played quietly.
The alert pattern begins quietly and gradually
gets louder.
The alert is preceded by activation of the
display backlight and vibration for ten seconds;
the alert pattern is then played quietly (once).
To alert you, the display backlight and vibration
are activated for ten seconds. The device is
totally mute; furthermore, no key clicks are
audible.
The alert occurs as a Loud alert. Whenever
radio communication is detected, it may be
heard on the loudspeaker.
