User Manual
s.QUAD X15/X35

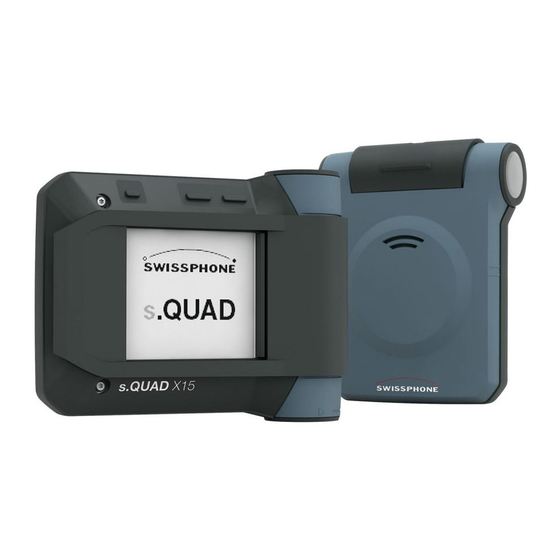

1. Introduction
Congratulations
on
your
Swissphone receiver! When you
purchased the new s.QUAD, you
chose a top-range device. The
s.QUAD delights with its optimum
combination of user-friendly design,
high carrying comfort and top quali-
ty. It offers easy operation via four
buttons and a graphical display.
The s.QUAD can be custom configu-
red. For this reason, some of the
functions described in this brief operating manual may be mis-
sing on your device.
This brief operating manual provides important information that
will help you get the most out of your device. Always keep this
manual ready to hand.
We wish you success in using the s.QUAD.
2. Getting started
Insert power source
The s.QUAD works with either a dry cell battery or a rechargeable
battery. Insert the power source into the s.QUAD, making sure
that you observe correct polarity. The s.QUAD will turn on auto-
matically. A functional test is then performed. After the test,
please specify whether you have inserted a dry cell battery or a
rechargeable battery. The device is now ready for operation.
Further information on the power supply can be found in the
chapter 'Charging the battery/power supply'.
Turn on
To manually turn on the s.QUAD, you must press and hold one of
the four buttons until the start screen or start text appears on the
display. The home screen is visible after a few seconds and the
s.QUAD is ready for operation.
3. Button function and navigation
BACK navigation
FORWARD
OK confirmation
button
navigation button
button
– Scroll backwards
– Scroll forward in
– Read messages
in the menu
the menu
– Confirm and ac-
– Change settings
– Change settings
knowledge alert
– Display the start
– Display the sec-
– Display user
screen or start text
ondary menu
menu
by holding the
– Confirm menu
button
selection
FORWARD
ESC button
ESC BACK
– Leave the current menu level
– Go to the home screen
by holding the button
Open user menu
Pressing the OK confirmation button allows you to switch from
the home screen to the user menu. You use the BACK and FOR-
WARD navigation buttons to navigate through the menu. To con-
firm a selection you have made or a changed value, press the OK
new
button. Each press of a button activates the backlight.
Back to home screen
Press the ESC button to go to the next higher menu level. If you
hold down the ESC button for two seconds, you return from the
submenu to the home screen. If you do not press any of the but-
tons for a pre-configured time interval, the s.QUAD automatically
returns to the home screen.
Release key lock (if activated)
To release the key lock, press the two
navigation buttons BACK and FORWARD
simultaneously.
Start-up image/Start-up text
If you hold down the BACK navigation button in the home screen,
the start-up image or start-up text appears.
Secondary menu
If you hold down the FORWARD navigation button in the home
screen for two seconds, you reach the secondary menu (only if
configured in the menu). Functions that are seldom used can be
placed on a second menu level (secondary menu) in order to
declutter the main menu. When you leave the secondary menu,
the device automatically returns to the start screen.

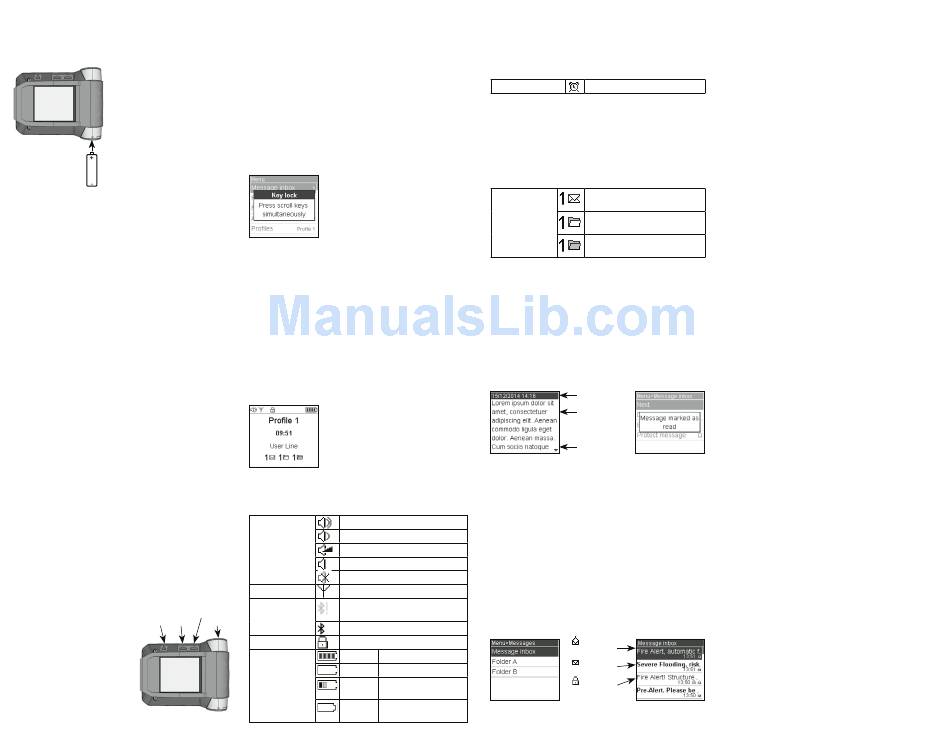

4. Display
The home screen is divided into five sections:
1
st
line: Status line
2
line: Profile
nd
3
rd
line: Time, alarm clock
4
th
line: User line
5
line: Notification line (unread
th
messages, charger masks and
so on)
Status line
The following symbols may be displayed in the status line:
Alert type
Loud alert
Quiet alert
Ascending alert
Discrete alert
Silent alert
Out of range display
No reception of alert messages
Bluetooth
etooth turned on, but not connected
with a device
OK
Bluetooth is connected with a device
Key lock
Key lock is activated
Battery level
Display
Battery full, ¾, ½, ¼
Flashing
Empty battery
Charging
Charge the battery!
animation
Flashing
Wrong or faulty power
source
Profile display
This line indicates the currently selected profile.
Time/alarm clock
This line shows the time. You can also see whether the alarm
clock is activated.
Alarm clock
Alarm clock function is activated
User line
A user-specific text is displayed.
Notification line
This line shows the charger mask and the programming mask. If
there are unread messages in the memory, the folder informa-
tion is displayed.
Folder information
Number of unread messages in the
message inbox
Number of unread messages in
message folder A
Number of unread messages in
message folder B
5. Processing alerts/messages
Receive and read new messages
When your s.QUAD receives a message, an alert occurs with
sound, vibration and illumination of the OK button. By pressing
the OK button, you can stop the alert. The header (timestamp)
shows the message date, message time and address name. If
you now press the BACK navigation button, the header is dis-
played in full. A predefined fixed text may precede the sent mes-
sage. The downward-pointing arrow indicates that there is more
text.
Header
(timestamp)
Fixtext
End of message
not reached
You can use the OK button or the FORWARD navigation button to
scroll to the end of the message.
The message is marked as read as soon as you reach the end.
Scroll through message
If the scroll function is activated on your device, you can use the
BACK and FORWARD navigation buttons to scroll through the
message. At the end of the message, you must press the OK
confirmation button or the FORWARD navigation button to mark
the message as read.
Message storage
The messages are stored in the message inbox or in the
appropriate folder. They are stored chrono-logically in a list.
Unread or protected messages are marked in the list. Unread
messages are also indicated in the home screen.
Read
message
Unread
message
Protected
message
Protect/delete messages
The 'Protect message' function allows you to protect a read
message. To delete a message, select 'Delete message'. The
'Empty folder' function lets you delete all messages in the list.
Lock messages or folders with a PIN
The 'Lock message' function allows you to lock a message. To
be able to read a locked message, you must first enter the cor-
responding PIN code. Similarly, you can use the 'Lock folder'
function to protect an entire folder with a PIN code. You can also
specify that messages in a folder should be automatically locked
after a timeout. After this timeout, you will need to enter the
corresponding PIN to be able to read these messages.
Alert reminder
If your device was configured to use an alert reminder, you will
be reminded of unread messages after the preset time. The alert
reminder is turned off as soon as you have read all messages.
6. Main menu
When you press the OK button for the first time, the device
switches from the home screen to the main menu. You can use
the FORWARD and BACK navigation buttons to navigate to the
individual menu items. To open a selected menu item, press the
OK button.
Main menu
• Alerting
See the chapter 'Alerting'
• Switch off
Switch off device
• Settings
This menu contains various settings for
the device (see the chapter 'Settings').
• Read last/
The last message or all unread
unread message messages can be read at any time by
pressing the OK confirmation button.
• Messages
Here you can manage the message
folders (message inbox, folder A,
folder B).
• Message inbox
Manage or read messages
(naming may differ)
• Folder A, B
Manage or read messages in the
(only X35)
message folders (naming may differ)
• Profiles
Selection of one of the pre-programmed
profiles
The menu can be freely configured using the programming soft-
ware. Your menu can therefore differ from the menu described
here. Details regarding the programming of the various menu
items can be found in the programming software manual.
7. Alert
You can select the following types of alert in the 'Alerting' menu:
• Loud
The alert pattern is played based on your
programming.
• Quiet
The alert pattern is played quietly.
• Ascending
The alert pattern begins quietly and gradually
gets louder.
• Discrete
The alert is preceded by activation of the
display backlight and vibration for ten
seconds; the alert pattern is then played
quietly (once).
• Silent
To alert you, the display backlight and
vibration are activated for ten seconds. The
device is totally mute; furthermore, no key
clicks are audible.
