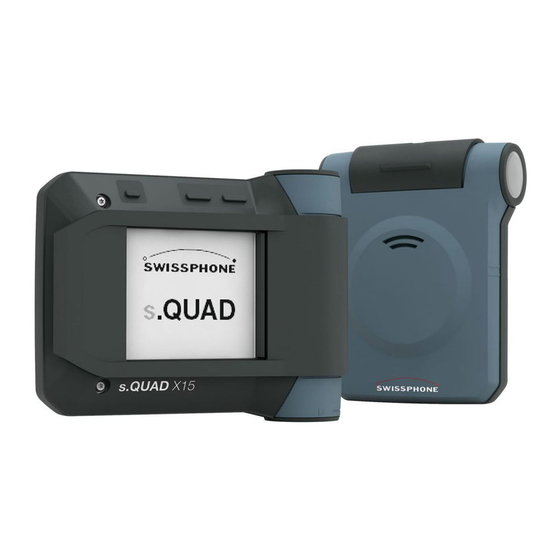

SwissPhone s.QUAD X15 User Manual

User Manual
s.QUAD X15/X35
1. Introduction
Congratulations
Swissphone receiver! When you
purchased the new s.QUAD, you
chose a top-range device. The
s.QUAD delights with its optimum
combination of user-friendly design,
high carrying comfort and top quali-
ty. It offers easy operation via four
buttons and a graphical display.
The s.QUAD can be custom configu-
red. For this reason, some of the
functions described in this brief operating manual may be mis-
sing on your device.
This brief operating manual provides important information that
will help you get the most out of your device. Always keep this
manual ready to hand.
We wish you success in using the s.QUAD.

2. Getting started

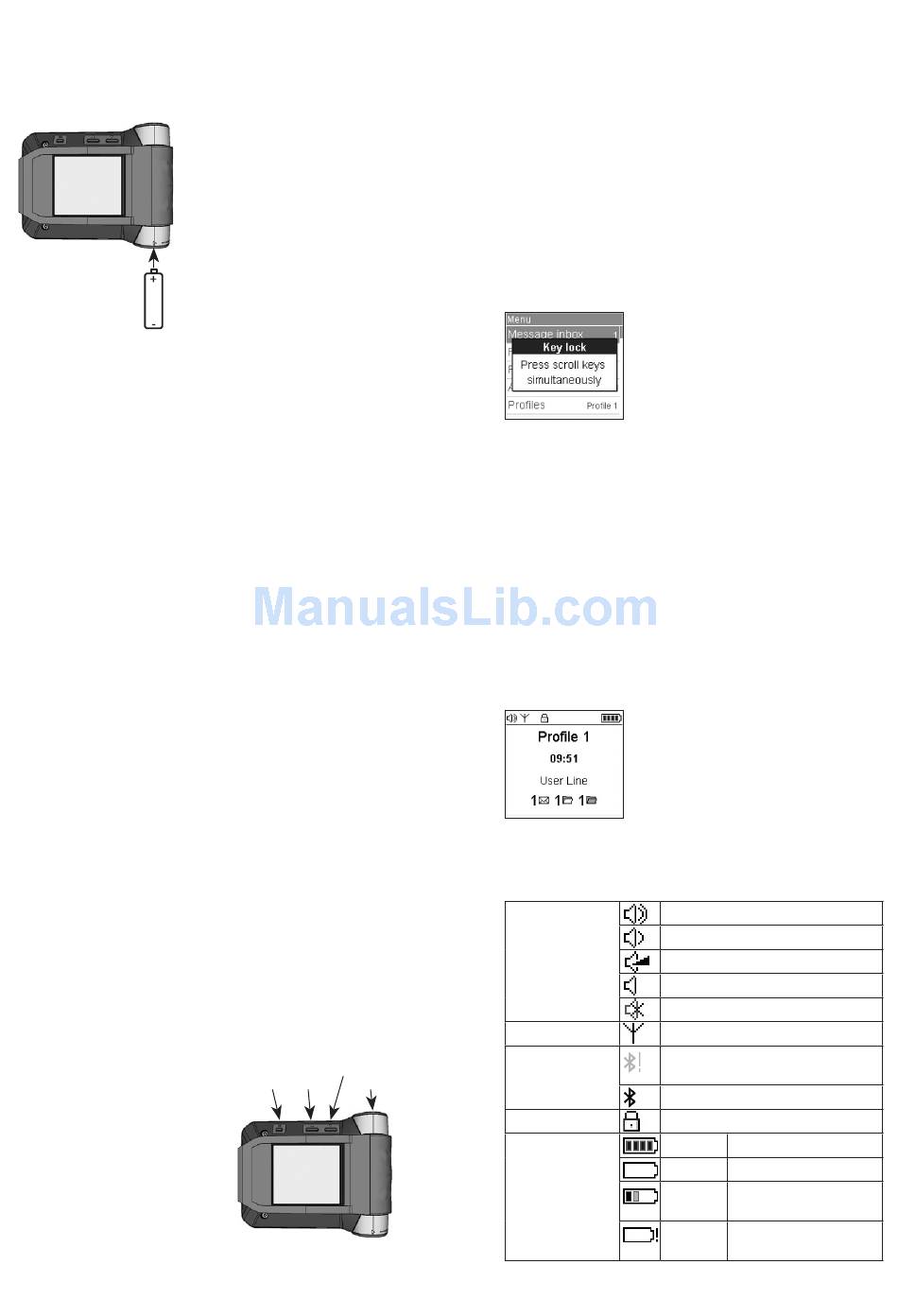

Insert power source
The s.QUAD works with either a dry cell battery or a rechargeable
battery. Insert the power source into the s.QUAD, making sure
that you observe correct polarity. The s.QUAD will turn on auto-
matically. A functional test is then performed. After the test,
please specify whether you have inserted a dry cell battery or a
rechargeable battery. The device is now ready for operation.
Further information on the power supply can be found in the
chapter 'Charging the battery/power supply'.
Turn on
To manually turn on the s.QUAD, you must press and hold one of
the four buttons until the start screen or start text appears on the
display. The home screen is visible after a few seconds and the
s.QUAD is ready for operation.
3. Button function and navigation
BACK navigation FORWARD
button navigation button
– Scroll backwards – Scroll forward in
in the menu the menu
– Change settings – Change settings
– Display the start – Display the sec-
screen or start text ondary menu
by holding the
button
ESC button
– Leave the current menu level
– Go to the home screen
by holding the button
on your new
OK confirmation
button
– Read messages
– Confirm and ac-
knowledge alert
– Display user
menu
– Confirm menu
selection
FORWARD
ESC BACK OK
Open user menu
Pressing the OK confirmation button allows you to switch from
the home screen to the user menu. You use the BACK and FOR-
WARD navigation buttons to navigate through the menu. To con-
firm a selection you have made or a changed value, press the OK
button. Each press of a button activates the backlight.
Back to home screen
Press the ESC button to go to the next higher menu level. If you
hold down the ESC button for two seconds, you return from the
submenu to the home screen. If you do not press any of the but-
tons for a pre-configured time interval, the s.QUAD automatically
returns to the home screen.
Release key lock (if activated)
To release the key lock, press the two
navigation buttons BACK and FORWARD
simultaneously.
Start-up image/Start-up text
If you hold down the BACK navigation button in the home screen,
the start-up image or start-up text appears.
Secondary menu
If you hold down the FORWARD navigation button in the home
screen for two seconds, you reach the secondary menu (only if
configured in the menu). Functions that are seldom used can be
placed on a second menu level (secondary menu) in order to
declutter the main menu. When you leave the secondary menu,
the device automatically returns to the start screen.
4. Display
The home screen is divided into five sections:
1 line: Status line
st
2 line: Profile
nd
3 line: Time, alarm clock
rd
4 line: User line
th
5 line: Notification line (unread
th
Status line
The following symbols may be displayed in the status line:
Alert type
Loud alert
Quiet alert
Ascending alert
Discrete alert
Silent alert
Out of range display
No reception of alert messages
Bluetooth etooth turned on, but not connected
with a device
Bluetooth is connected with a device
Key lock
Key lock is activated
Battery level
Display
Flashing
Charging
animation
Flashing
messages, charger masks and
so on)
Battery full, ¾, ½, ¼
Empty battery
Charge the battery!
Wrong or faulty power
source
Prof
This
Time
This
clock
Alar
User
A us
Noti
This
there
tion
Fold
