Supermicro SuperServer 6028U-E1CNR4T+ Quick Reference Manual

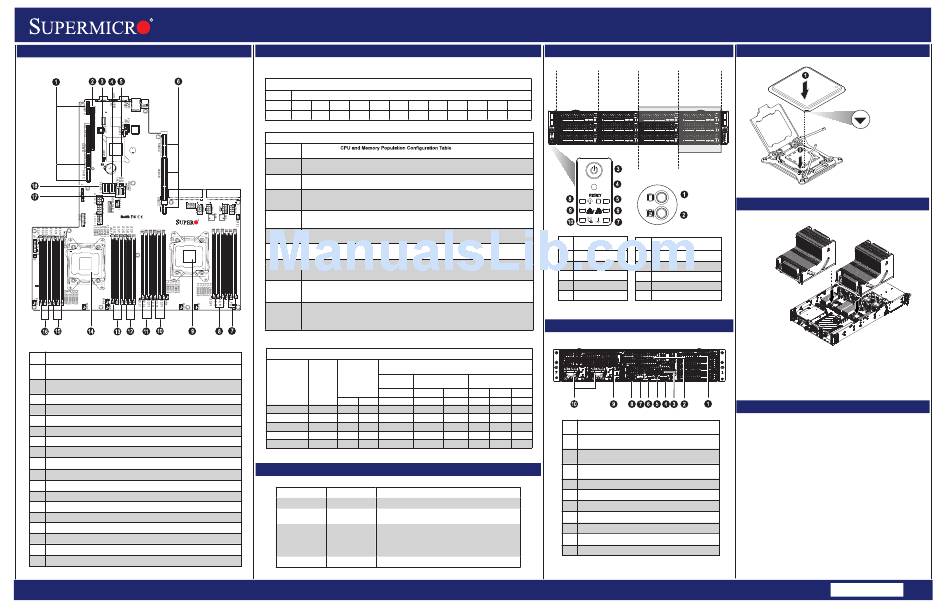

SuperServer 6028U-E1CNR4T+/E1CNRT+ Quick Reference Guide

Board Layout

1 2 3 4 5 6
COM1
USB 0/1(3.0)
VGA
BMC_HB_LED1 IPMI_LAN
BMC
BIOS
PCH
SP1
JBT1
JBAT1
18
PSU2
I-SATA0~3
17
JGPW1
BP PWR2
GPU PWR1
X10DRU-i+
CPU1
CPU2
JL1
15 12 10 9
16 14 13 11
No. Description
SXB1A/1B/1C: Proprietary PCI-e Slot used for WIO-Left Devices
1
(supported by CPU2)
SXB2: Proprietary PCI-e 3.0 x8 Slot for WIO-Right Devices or
2
Add-on Cards (supported by CPU2)
3 JBT1: CMOS Clear
4 I-SATA0~3: SATA 3.0 Ports (Intel PCH)
JSD1/JSD2: SATA DOM (Device_on_Module) Power Connectors
5
SXB3A/3B/3C: Proprietary PCI-e Slot for Ultra Riser Devices (supported by CPU1)
6
7 P1-DIMMA1(Blue)/P1-DIMMA2/P1-DIMMA3 slot
8 P1-DIMMB1(Blue)/P1-DIMMB2/P1-DIMMB3 slot
9 CPU1 (Install CPU1 first)
10 P1-DIMMD1(Blue)/P1-DIMMD2/P1-DIMMD3 slot
P1-DIMMC1(Blue)/P1-DIMMC2/P1-DIMMC3 slot
11
12 P2-DIMME1(Blue)/P2-DIMME2/P2-DIMME3 slot
13 P2-DIMMF1(Blue)/P2-DIMMF2/P2-DIMMF3 slot
14 CPU2
15 P2-DIMMH1(Blue)/P2-DIMMH2/P2-DIMMH3 slot
16
P2-DIMMG1(Blue)/P2-DIMMG2/P2-DIMMG3 slot
17 I-SATA 4~5: SATA 3.0 Ports (Intel PCH)
18 S-SATA0~3: SATA 3.0 Ports (Intel SCU)

Memory

Processors and their Corresponding Memory Modules

Corresponding DIMM Modules
CPU#
CPU 1 A1 A2 A3 B1 B2 B3
CPU 2
E1 E2 E3 F1 F2 F3

Processor and Memory Module Population for Optimal Performance

Number of
CPUs+DIMMs (For memory to work properly, please follow the instructions below.)
1 CPU & CPU1
2 DIMMs P1-DIMMA1/P1-DIMMB1
1 CPU & CPU1
4 DIMMs P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1
PSU1
1 CPU & CPU1
5~8 DIMMs P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + Any memory pairs in P1-
BP PWR1
DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2 slots
2 CPUs & CPU1 + CPU2
4 DIMMs P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1
2 CPUs & CPU1 + CPU2
6 DIMMs P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1
2 CPUs & CPU1 + CPU2
8 DIMMs P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1
2 CPUs & CPU1/CPU2
8~16 DIMMs P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/
P2-DIMMH1 + Any memory pairs in P1, P2 DIMM slots
2 CPUs & CPU1/CPU2
16 DIMMs P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1,
P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/P2-DIMMF2/P2-DIMMG2/P2-DIMMH2
LED_A1
2 CPUs & CPU1/CPU2
16~24 DIMMs P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1,
P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/P2-DIMMF2/P2-DIMMG2/P2-DIMMH2,
P1-DIMMA3/P1-DIMMB3/P1-DIMMC3/P1-DIMMD3, P2-DIMME3/P2-DIMMF3/P2-DIMMG3/P2-DIMMH3
7
8
DIMM Module Population Configuration

DDR4 Memory POR for Haswell-EP

DIMM Capacity
Ranks Per
(GB)
1 Slot Per
DIMM and
Type
Channel
Data Width
1DPC
8Gb
4Gb
1.2V
RDIMM SRx4 8GB 16GB
2133
RDIMM
SRx8 4GB 8GB 2133
RDIMM DRx8 8GB 16GB 2133
RDIMM
DRx4 16GB 32GB
2133
LRDIMM QRx4 32GB 64GB
2133

Beep Codes

Beep Code Error Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short beeps and 1 Memory error No memory detected in the system
long beep
5 beeps No Con-In or No Con-In: USB or PS/2 keyboard, PCI or Serial Console
Con-Out devices Redirection, IPMI KVM or SOL
Con-Out: Video Controller, PCI or Serial Console Redirection,
IPMI SOL
1 beep per device Refresh 1 beep for each USB device
Front View & Interface
HDD2
HDD1
HDD0
C1 C2 C3 D1 D2 D3
G1 G2 G3 H1 H2 H3
8
9
10
No. Description
1 Hard Drive Signal
2 Hard Drive Fail
3 Power Button
4 Reset Button
5
Device Activity LED
Speed (MT/s); Voltage (V);
Slot Per Channel (SPC) and DIMM Per Channel (DPC)
2 Slots Per 3 Slots Per
Channel Channel
1DPC 2DPC 1DPC 2DPC 3DPC
1.2V 1.2V 1.2V 1.2V 1.2V
10
1600
2133 1866 2133 1866
2133 1866 2133 1866 1600
No. Description
2133 1866 2133 1866 1600
2133 1866 2133 1866 1600
4 PCI-E 3.0 x8 (CPU2) Expansion Slots
1
2133 2133 2133 2133 1600 (Full-height 4.2", Length 10.5")
PCI-E 3.0 x8 (CPU1) Expansion Slot
2
(Full height 4.2" , Length 10.5")*
PCI-E 3.0 x8 (CPU2) Expansion Slot
3
(Low-profile 2.536", Half-Length 6.6")
4 VGA Port
UID Button (Unit Identifier Button)
5
COM Port
6
7 Dedicated LAN for IPMI
USB 3.0 Ports
8
LAN Ports (2 or 4)
9
Redundant Power Supply Module
10
* Not Available on E1CNR4T+ Models
HDD5 HDD8* HDD11*
HDD4 HDD7 HDD10*
HDD9*
HDD3 HDD6
* NVMe Support
3
4
1
5
6
2
7
No.
Description
Screw #B
6 LAN1 LED
7 Overheat & Fan Fail LED
8 Power LED
Screw #C
9 LAN2 LED
10 Power Failure LED

Rear View

1. Place the heatsink on top of the installed CPU.
2. Align the four screws to the socket.
3. Holding the heatsink in place, screw down as shown
(cross pattern, in order: A, C, B, D).
4. Note: Only use 6-8 lb/f of torque; otherwise, hand-tighten
each screw to avoid damaging the CPU.
9 8 7 6 5 4 3 2 1

!

SAFETY INFORMATION

IMPORTANT: See installation instructions and safety warning
before connecting system to power supply.
http://www.supermicro.com/about/policies/safety_information.cfm

!
WARNING:
To reduce risk of electric shock/damage to equipment,
disconnect power from server by disconnecting all power
cords from electrical outlets.
If any CPU socket empty, install protective plastic CPU cap

!
CAUTION:
Always be sure all power supplies for this system have
the same power output. If mixed power supplies are
installed, the system will not operate.
For more information go to :
http://www.supermicro.com/support
http://www.supermicro.com MNL-1751-QRG

CPU Installation

Align CPU to socket;
install CPU straight down

!
NOTE:
Do not bend pin inside socket

Heatsink Installation

Screw #A
Screw #D
Caution
