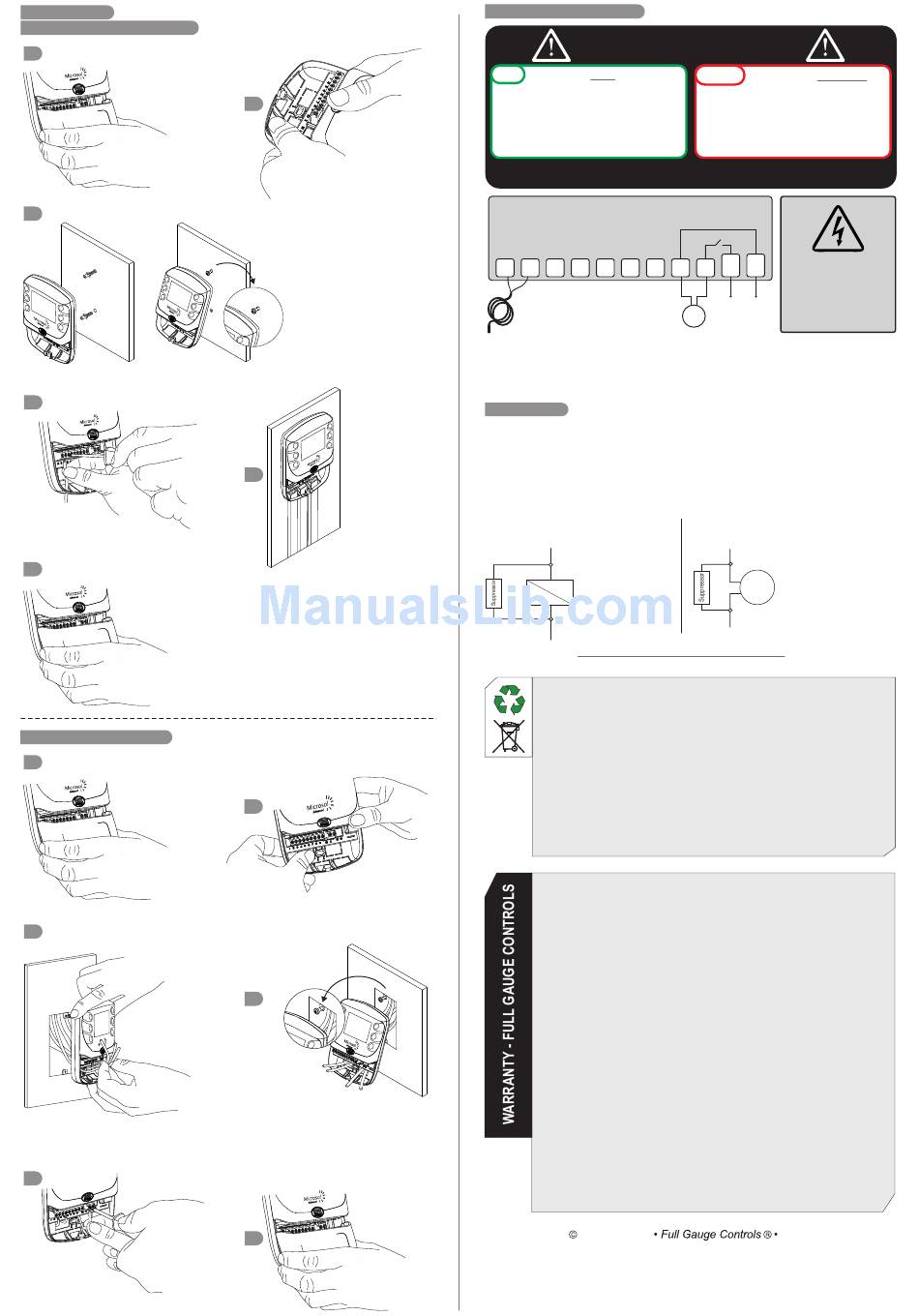

8. INSTALLATION
8.1 SUPERIMPOSED INSTALLATION
1
Remove the protective
cover of the
connections at the
bottom of the controller;
3
4
Make the electrical
connections of the controller;
6
Place the protective cover of
the electrical connections
and secure it with the screw
(included in package).
8.2 INSTALLATION OF 4x2 BOX
1
Remove the protective
cover of the connections
at the bottom of the
controller;
3
Route the cables through the
openings as controller connections;
5
Make the electrical
connections of the controller;
2
Push the bottom openings
necessary for the passage of
cables;
Attach the controller to the wall using the
screws and plugs provided;
The top screw must not be screwed
completely, for engaging the
controller. After fitting the controller
on the top screw, secure it with the
lower screw;
For a better finish
install X system type
5
channels to run
cables;
2
Push the rear openings
necessary for the passage
of cables;
Secure the controller in
4x2 box using the
screws provided;
4
The top screw must
not be screwed
completely, for
engaging the controller. After
fitting the controller on the top screw,
secure it with the lower screw;
Place the
protective cover
of the electrical
connections and
secure it with the
screw (included
in package).
6
8.3 ELECTRICAL CONNECTIONS
A qualified technician must perform
the installation of the device.
DO s
The controller MUST be installed:
- indoors, in a dry environment;
- away from electromagnetic fields;
- in a ventilated place, free from flammable
liquids and gases;
- protected by a circuit breaker of appropriate
specification for the installed load.
Failure to not comply the warnings will cause loss of warranty, equipment and / or
physical damage.
1 2 3 4 5 6 7
SENSOR T1
PLASTIC TIP
(THERMOSTAT)
Note: The length of the sensor cable can be increased by the user up to 200 meters using PP 2 x 24
AWG cable.
9. IMPORTANT
According to the chapters of norm IEC 60364:
1: Install protector against overvoltage on the power supply.
2: Sensor cables and signal cables of the computer may be joined, but not in the same
electric conduit through which the electric input and the activation of the loads run.
3: Install transient suppresors (RC filters) parallel to the loads as to increase the product
life of the relays.
Contact suppressor connection diagram
A1
A1 and A2 are the
contactor coils.
A2
Suppressors on offer from Full Gauge Controls
ENVIRONMENTAL INFORMATION
Packaging:
The materials used in the packaging of Full Gauge products are 100% recyclable. Try to
perform disposal through specialized recyclers.
Product:
The components used in Full Gauge controllers can be recycled and reused if
disassembled by specialized companies.
Disposal:
Do not incinerate or dispose the controllers that have reached the end of their service as
household garbage. Observe the laws in your area regarding disposal of electronic
waste. If in doubt, please contact Full Gauge Controls.
Products manufactured by Full Gauge Controls, as of May 2005, have a two (02)
yearwarranty, as of the date of the consigned sale, as stated on the invoice. They are
guaranteed against manufacturing defects that make them unsuitable or inadequate for their
intended use.
EXCEPTIONS TO WARRANTY
The Warranty does not cover expenses incurred for freight and/or insurance when sending
products with signs of defect or faulty functioning to an authorized provider of technical
support services. The following events are not covered either: natural wear and tear of parts;
external damage caused by falls or inadequate packaging of products.
Products will automatically lose its warranty in the following cases:
- The instructions for assembly and use found in the technical description and installation
procedures in Standard IEC60364 are not obeyed;
- The product is submitted to conditions beyond the limits specified in its technical
description;
- The product is violated or repaired by any person not a member of the technical team of
Full Gauge Controls;
- Damage has been caused by a fall, blow and/or impact, infiltration of water, overload
and/or atmospheric discharge.
To make use of the warranty, customers must send the properly packaged product to Full
Gauge Controls together with the invoice or receipt for the corresponding purchase. As
much information as possible in relation to the issue detected must be sent to facilitate
analysis, testing and execution of the service.
These procedures and any maintenance of the product may only be provided by Full
Gauge Controls Technical Support services in the company's headquarters at Rua Júlio de
Castilhos, 250 - CEP 92120-030 - Canoas - Rio Grande do Sul – Brasil
