30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

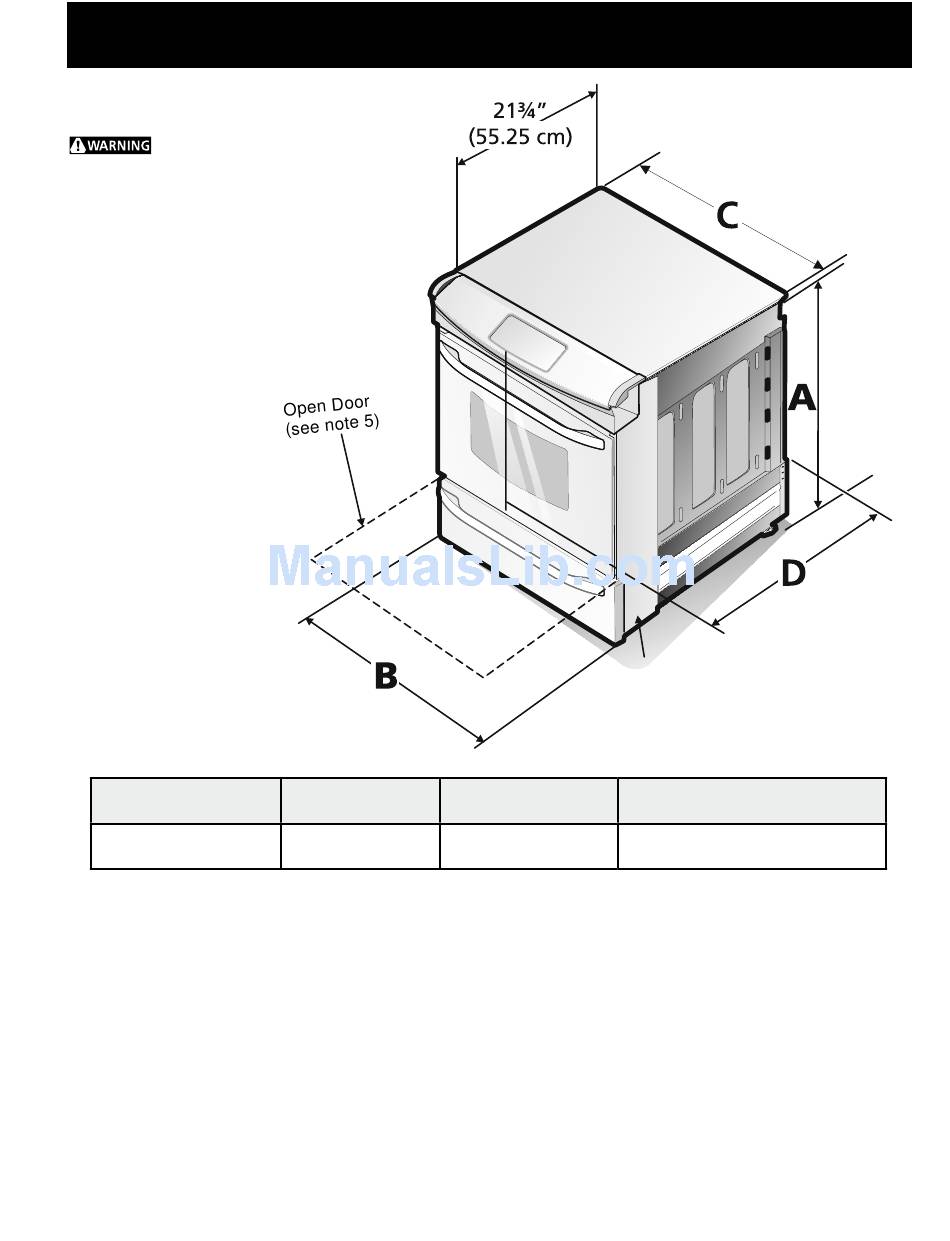

Product Dimensions
Do not
install the unit in the
cabinet before reading
next two pages.
A. HEIGHT
(Under Cooktop)
35 3/4" (90,8 cm)
36 5/8" (93 cm)
NOTE:
1. Do not pinch the power supply cord or the flexible gas conduit between the range and the wall.
2.
Do not seal the range to the side cabinets.
3.
24" (61 cm) minimum clearance between the cooktop and the bottom of the overhead cabinet when
the bottom of wood or metal cabinet is protected by not less than ¼" (0,64 cm) flame retardant
millboard covered with not less than No. 28 MSG sheet metal, 0,015" (0,4 mm) stainless steel, 0,024"
(0,6 mm) aluminum, or 0,020" (0,5 mm) copper.
30" (76,2 cm) minimum clearance when the cabinet is unprotected.
4.
For cutouts below 22 7/8" (58,1 cm), appliance will slightly show out of the cabinet.
5.
Allow at least 19 ¼" (48,9 cm) clearance for door depth when it is open.
C. COOKTOP
B. WIDTH
30" (76,2 cm)
31 1/2" (80 cm)
3
Side Panel
D. TOTAL DEPTH TO FRONT
WIDTH
OF RANGE
28 5/16" (71,9 cm)
