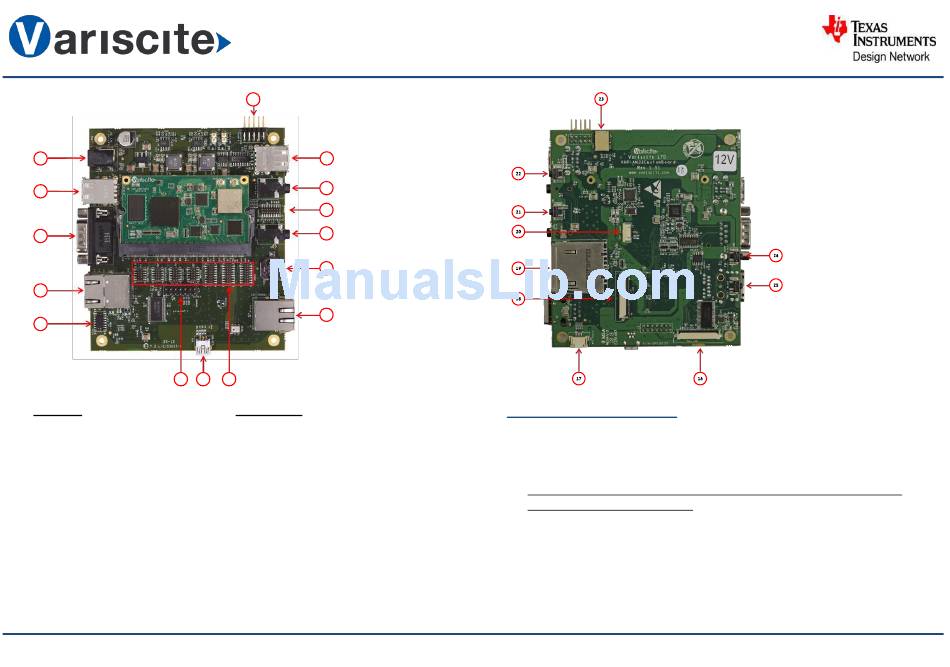

Top side:
1. Extension Headers
2. USB OTG
3. JTAG Header
4. LVDS Header
5. Gigabit Ethernet
6. UART1 DTE
7. USB Host ports x 2
8. 12V DC In Jack (J20)
9. Debug UART(J6)
10. USB Host ports x 2
11. Line In
12. Audio Header
13. Headphones
14. RTC Battery Holder
15. 10/100 Ethernet
VAR-SOM-AM33 based on TI AM335x
Evaluation Kit Quick Start Guide
9
10
11
12
13
14
15
1
Bottom side:
16. Resistive LCD
17. Resistive Touch
18. Capacitive LCD
19. SD Card Slot
20. Capacitive Touch
21. On/Off Button
22. User Button
23. Capacitive LCD Backlight
24. Boot Select Button (SW3)
25. Reset Button
Evaluation Kit initial Setup
1. Carefully remove the Evaluation Kit from the package.
2. Plug the RS232 cable between Debug UART connector (J6) and a
PC serial interface (DTE).
Note: Pin #1 on the RS323 cable marked with arrow should be connected
To Pin #2 of J6 marked on PCB.
